Hioki 8841 - INTERFACE Screen (SYSTEM 4)

268
────────────────────────────────────────────────────
12.5 INTERFACE Screen (SYSTEM 4)
────────────────────────────────────────────────────
s105
CH.SET key
12.5 INTERFACE Screen (SYSTEM 4)
Procedure
Screen: INTERFACE (SYSTEM4)
1. Press the SYSTEM key or function key to display the
INTERFACE screen.
2. Move the flashing cursor to set the item.
3. Use the function keys to make the selection.

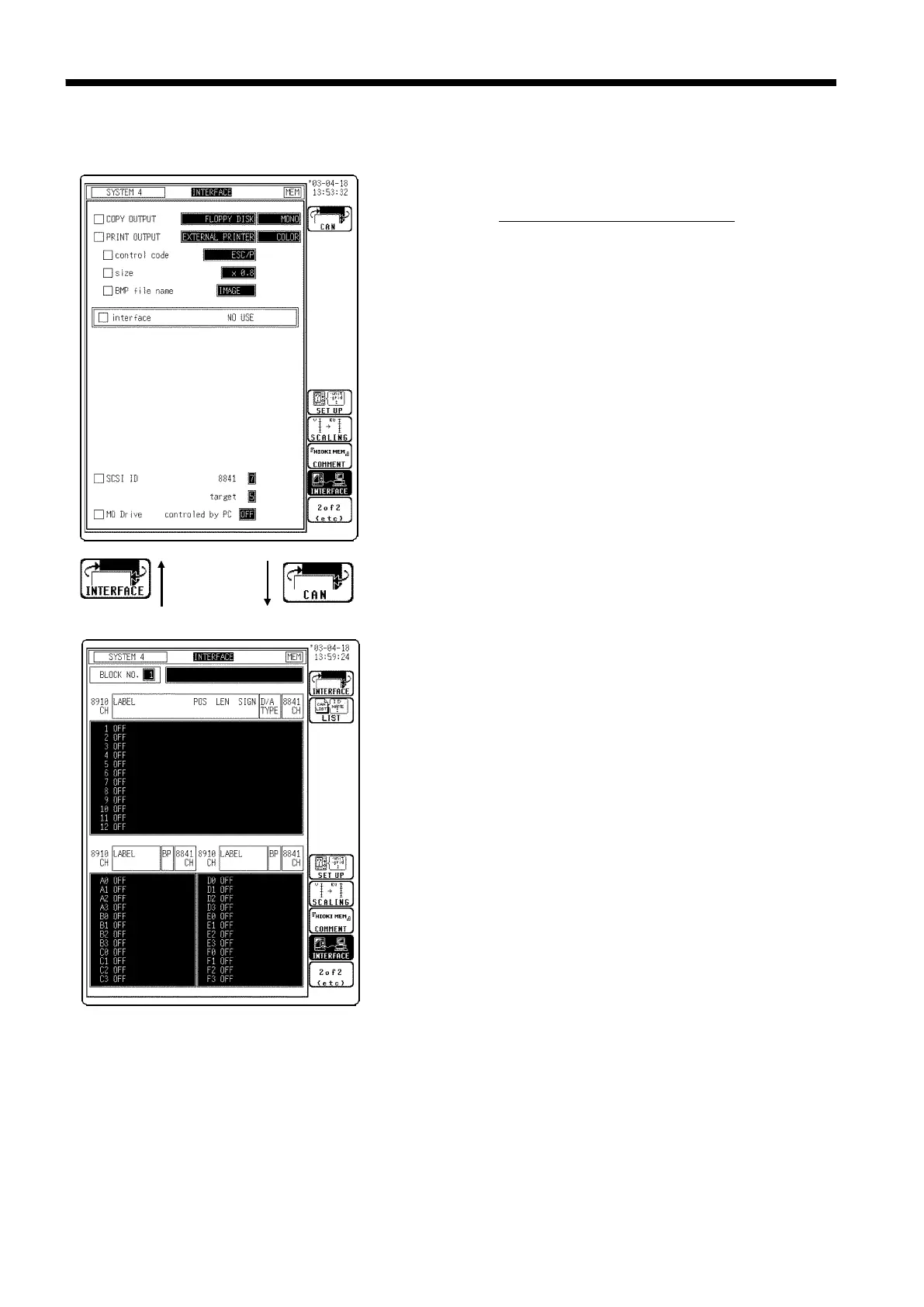

Interface Setting Screen
Setting the 8910 CAN ADAPTER
You can edit the 8910 CAN ADAPTER setting when
the 8910 CAN ADAPTER is connected via the RS-
232C interface.
Press the CH.SET key to switch between the interface
and 8910 setting screens.
For details, refer to the instruction manual provided
with the 8910 CAN ADAPTER.
8910 Setting Screen
