10.3 TRIGGER Screen Organization
────────────────────────────────────────────────────
s83-1, 2
CH.SET
TRIG
10.3 TRIGGER Screen Organization

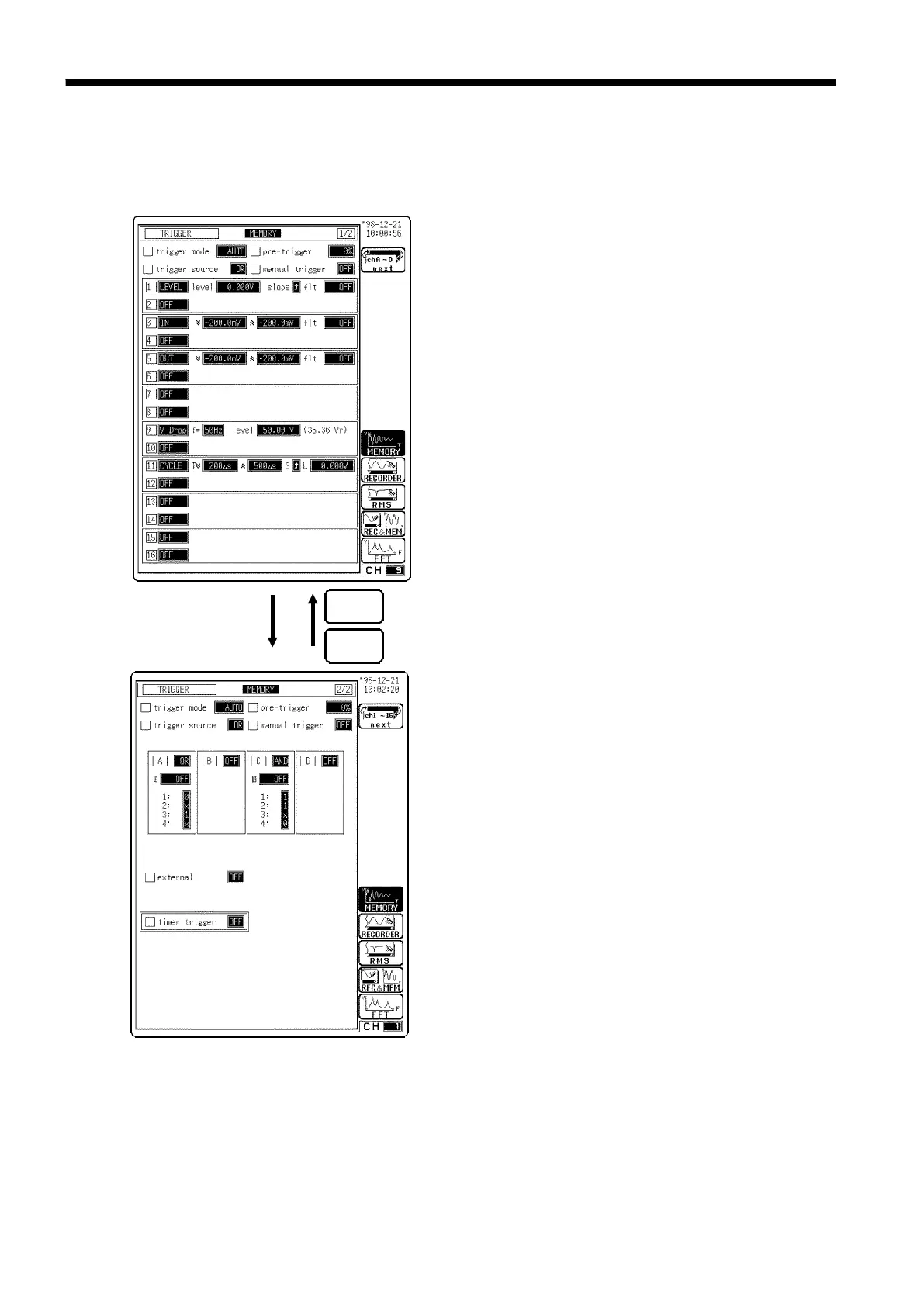

Indicates the TRIGGER screen organization. Press the TRIG key to display
the TRIGGER screen.
Setting items:
・Trigger mode
・Pre-trigger (for recorder function, trigger timing)
・Trigger source
・Manual trigger
・Analog trigger
(channels 1 to 16)
Setting items
・Trigger mode
・Pre-trigger
・Trigger source
・Manual trigger
・Logic channel (CHA to CHD)
・External trigger
・Timer trigger
