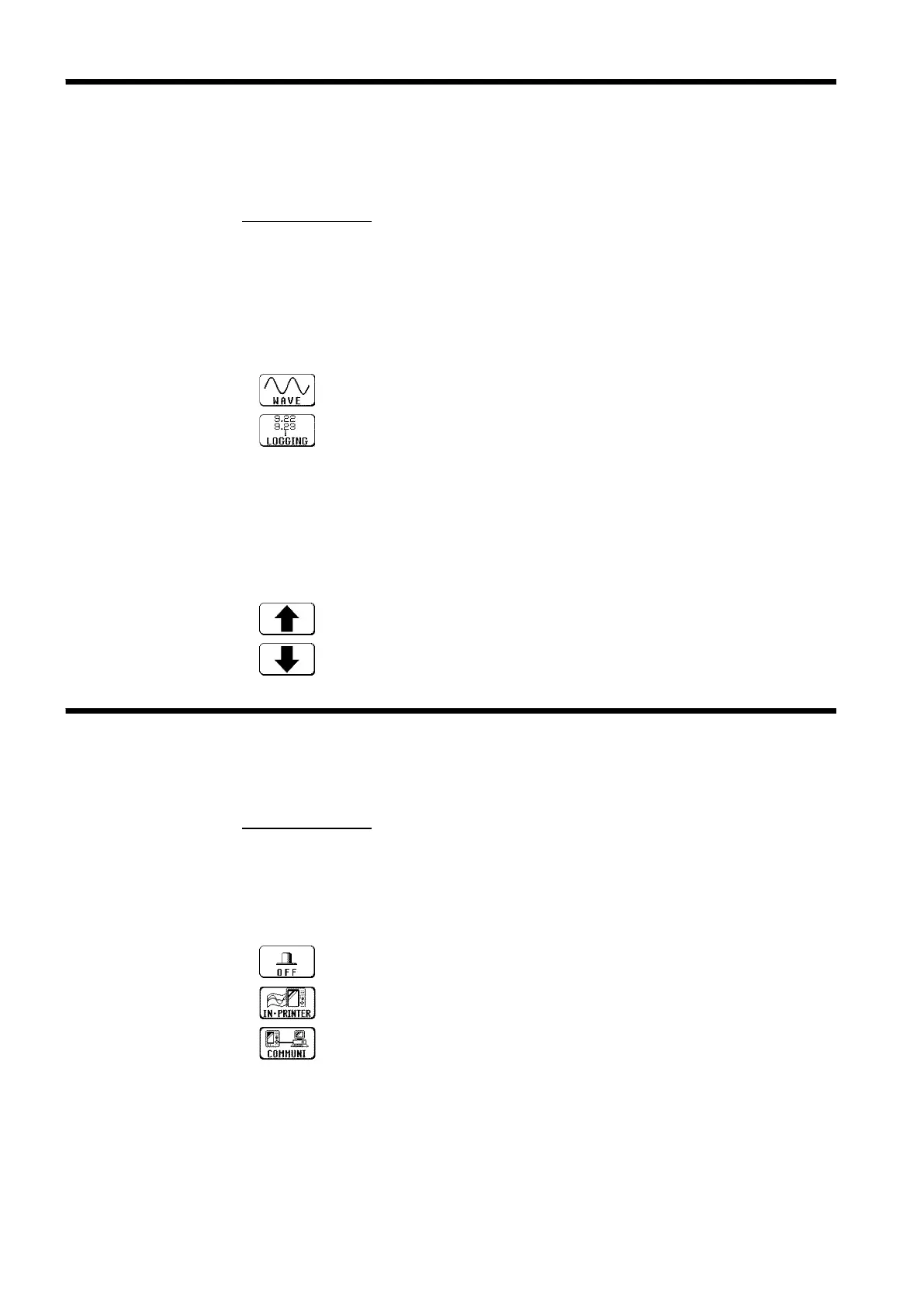

8.4 STATUS2 Settings (FFT)
────────────────────────────────────────────────────
8.4.3 Setting the Print Mode
Function
display
Meaning
:
The result of calculation are printed as a
waveform.
:
The result of calculation are printed as numeric
data.
Function
display Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
8.4.4 Setting the Auto Print Function
Function
display
Meaning
:
Auto print is disabled.
:
Automatically printed to the internal printer.
:
A LAN is used to transfer printing images to the
9333 LAN COMMUNICATOR.
Select the format, waveform, or numerical value should be used to output
FFT processing results.
Procedure
Screen: STATUS2
(1) Setting the printer format
1. Press the
STATUS
key to display the STATUS2 screen.
2. Move the flashing cursor to the print mode item.
3. Use the function keys to make a setting.
(2) Setting the print interval
1. When the numerical value is selected, set the print interval. (unit: points)
2. Move the flashing cursor to the
interval item.
3. Use the function keys to make a setting.
Printout is automatically carried out after FFT analysis.
Procedure
Screen: STATUS2
1. Press the STATUS key to display the STATUS2 screen.
2. Move the flashing cursor to the auto print item.
3. Use the function keys to make a setting.
To Next Page
