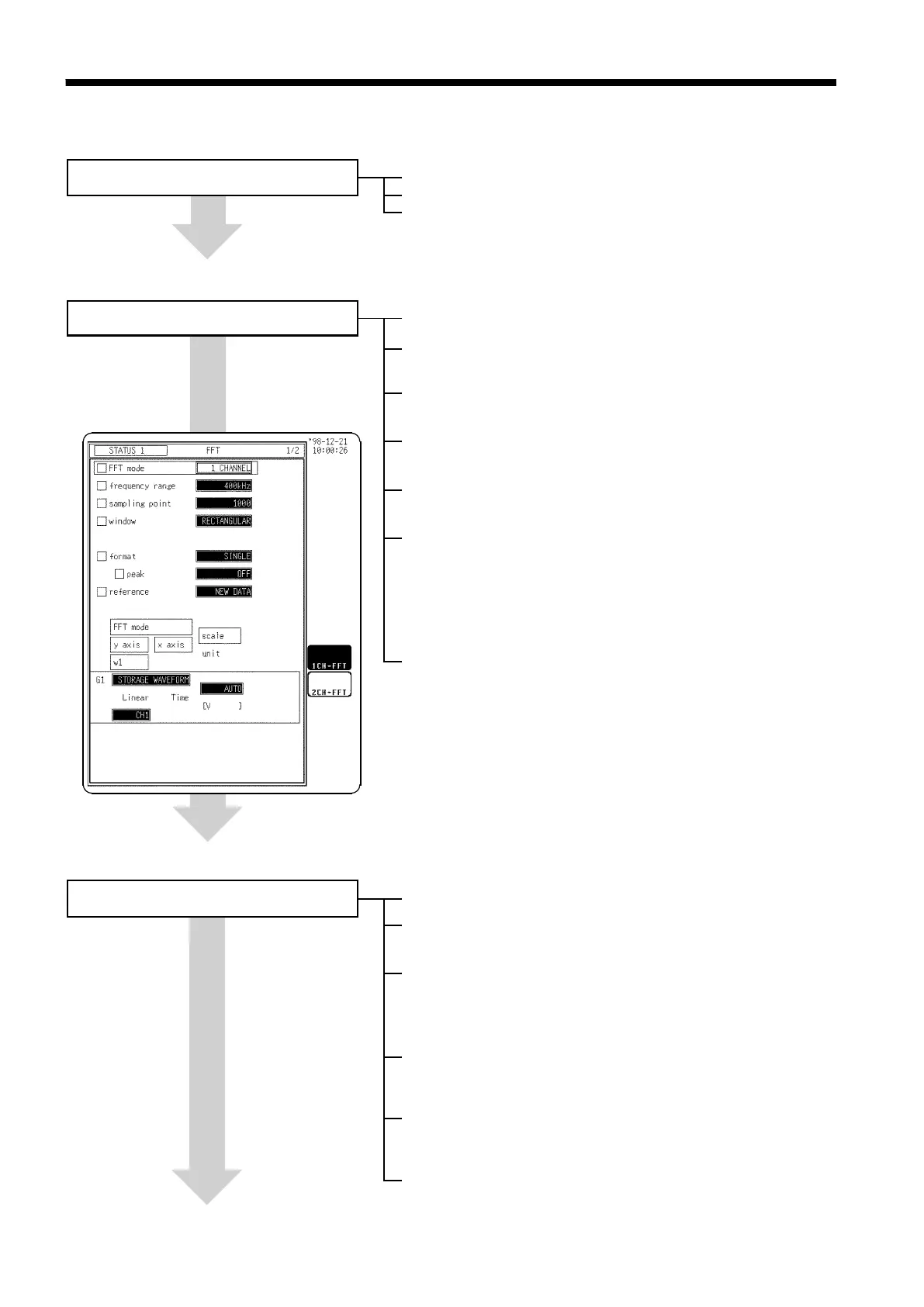

8.2 Operation Sequence (FFT)
────────────────────────────────────────────────────
See Chapter 2
Settings on the STATUS1 screen
Press the
STATUS
key to display
the STATUS screen.
Preparation
Basic Settings
Advanced Settings
Settings on the STATUS2 screen
Function
Select the FFT function.
FFT mode
Select the using channels (1 channel
or 2 channels)
Frequency range
Set the maximum value of frequency
range.
Number of FFT point
Set the number of points for FFT
analysis
Window function
Set the window function to get input
signal.
Display format
Set the display and print formats for
the input signal or analysis result.
For single and dual screens, set peak
value display.
Reference data
Set the new data or memory
waveform data for the FFT analysis.
FFT analysis mode
FFT analysis mode
Analysis channel
X- and Y- axis display
Display scale
See
Section 8.3
Averaging
Set the averaging type and count.
Interpolation
Select waveform display format
(dot/line)
Printer recording
format
(Waveform/
Numeric print)
Select the format, waveform, or
numerical value should be used to
output measured data and
calculation results.
Auto print
Select whether or not to print out the
waveform automatically after it is
captured.
Auto save
Select whether or not to save the
waveform automatically after it is
captured.
Waveform
evaluation
(item setting/stop mode)
See
Section 8.4
Installation of the Unit
Turn on the power
Connect the inputs
