Hioki 8841 - Making Settings for Waveform Parameter Evaluation

357
────────────────────────────────────────────────────
16.1 Waveform Parameter Calculation (MEM)
────────────────────────────────────────────────────
16
17
18
19
5
6
7
8
9
10
11
12
13
14
A

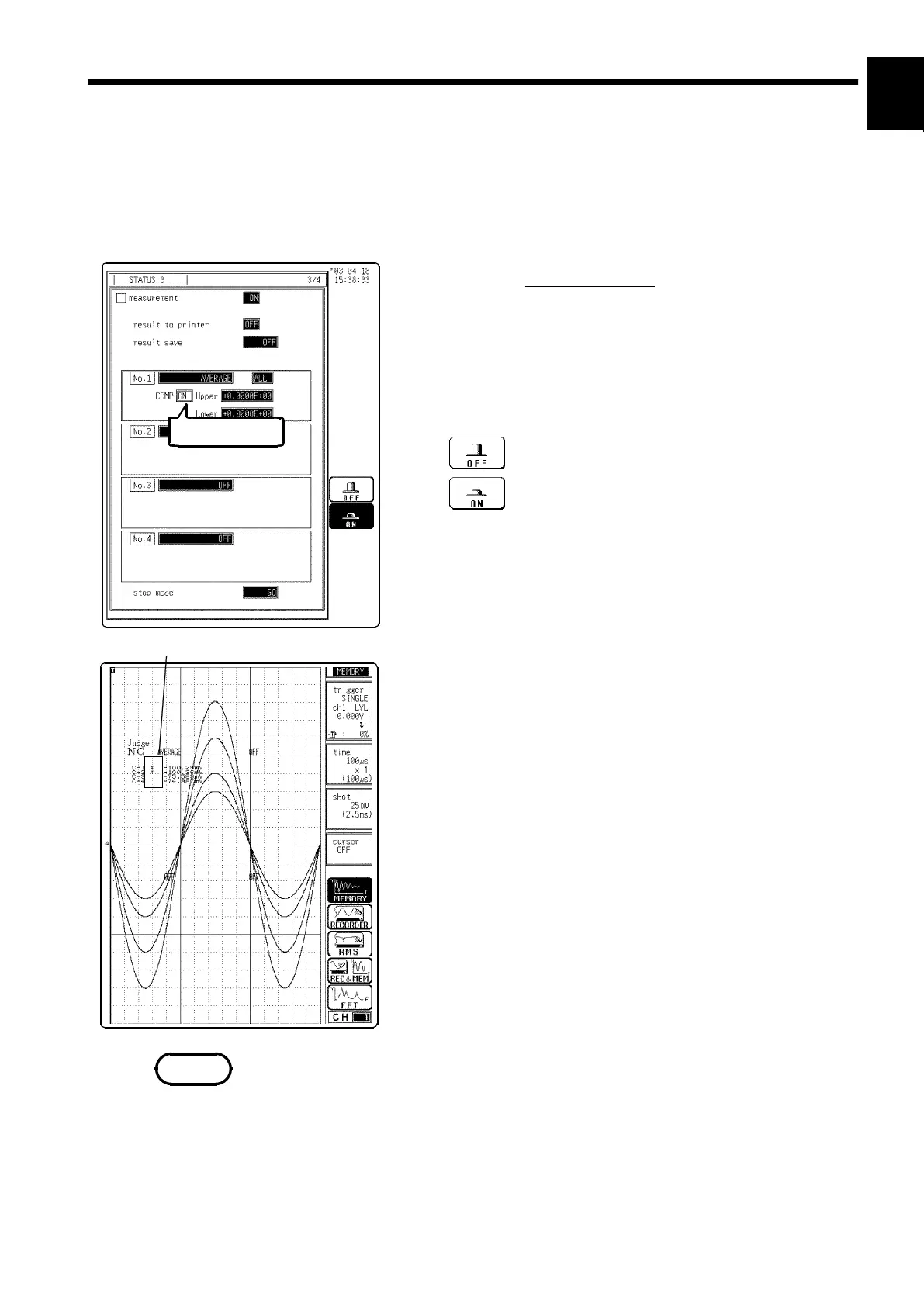

16.1.2 Making Settings for Waveform Parameter Evaluation
s-1412-1, 2
Evaluation result
Flashing cursor
Function
display Meaning
:
Disable evaluation function.
:
Return NG if result is outside specified range.
NOTE
・Depending on the results of the waveform parameter calculation, a GO (pass)
or NG (fail) result is returned.
・Evaluation criteria can be set independently for each of the calculation sets
No. 1 - No. 4.
Procedure
Screen: STATUS3
1. Make the settings for waveform parameter
calculation.
2. Move the flashing cursor to
COMP
, and use the
function key to select.
3. Set the upper and lower limits.
Use the cursor keys or the Shuttle control to move
the flashing cursor and make a setting. The settings
can be made by using the numerical value input key.
The setting range is -9.9999E+29 to +9.9999E+29
(exponent: -29 to +29).
The upper limits must not be smaller than the lower
limits, or the lower limits must not be larger than the
upper limits.
･ When waveform parameter measurement and
waveform evaluation are carried out simultaneously,
the both evaluation results are displayed on the
screen. Check the results of parameter evaluation
using "
*
" (NG decision) accompanying the figure.
Alternatively, a beeping sound can be used for the
evaluation instead of the "
*
" mark; the machine beeps
if the result of either parameter or waveform
evaluation is NG.
･ When the evaluation result is NG, the calculation
value for that channel is marked with an "
*
" (on the
display and the printout).
The result of the evaluation is NG if any of the
values is NG.
･ While all evaluation results appear on the display screen, the evaluation
results are printed out for each parameters in the print mode.
･ When the evaluation result is NG, an NG output signal can be obtained
between the NG terminal and the GND terminal. For details, please refer to
the Section 17.1.6.
･ The waveform parameter calculation is set to ON, the settings by using the
CH.SET key are automatically set to OFF.
