16.3 Waveform GO/NG Evaluation (MEM, FFT)
────────────────────────────────────────────────────

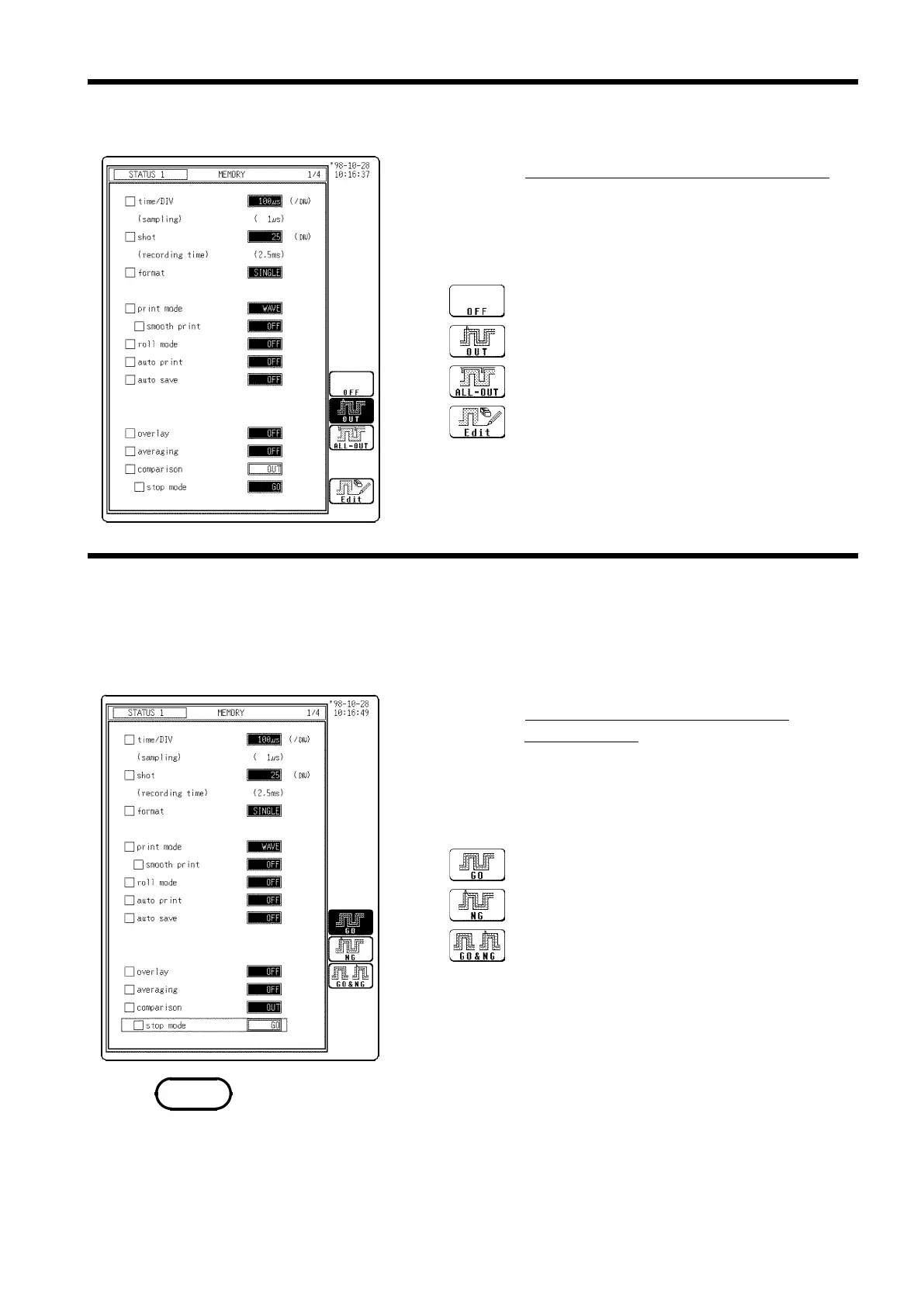

16.3.2 Setting the Waveform Evaluation Mode
s1432
Function
display
Meaning
#g-wv1, 2, 3
:
Disable waveform evaluation.
:
Return NG if any part of the waveform leaves
the evaluation area.
:
Return NG if the entire waveform leaves the
evaluation area.
:
Activate editor for setting up evaluation area.
16.3.3 Setting the GO/NG Stop Mode
s1433
Function
display
Meaning
#g-wv4, 5, 6
:
Stop recording on GO result.
:
Stop recording on NG result.
:
Stop recording on GO or NG result.
NOTE
Procedure
Screen: STATUS1 (MEM), STATUS2 (FFT)
1. Move the flashing cursor to comparison.
2. Make the setting with the function keys.
When waveform evaluation is enabled (OUT or ALL OUT is selected), the
"Stop mode" menu appears. Specify which evaluation option, GO or NG,
should be used to stop the recording.
Procedure
Screen: STATUS1 (Memory recorder)
STATUS 2(FFT)
1. Move the flashing cursor to the position "stop mode".
2. Make the setting with the function keys.
In memory recorder function, when waveform parameter evaluation and
waveform evaluation are carried out simultaneously, the both evaluation
results are displayed on the screen. Check the results of parameter evaluation
using "
*
" (NG decision) accompanying the figure. Alternatively, a beeping
sound can be used for the evaluation instead of the "
*
" mark; the machine
beeps if the result of either parameter or waveform evaluation is NG.
