9.4 Copying Channel Settings
────────────────────────────────────────────────────
s7310
Copy target Copy source
Function
display
Meaning
:
Increase channel number
:
Decrease channel number
NOTE
9.4 Copying Channel Settings
・Copies any of input channel settings (voltage axis range, input coupling, and
low-pass filter), variable function settings, scaling function settings, or
comment function settings to another channel.
・Copying channel settings cannot be carried out between different units.
Procedure

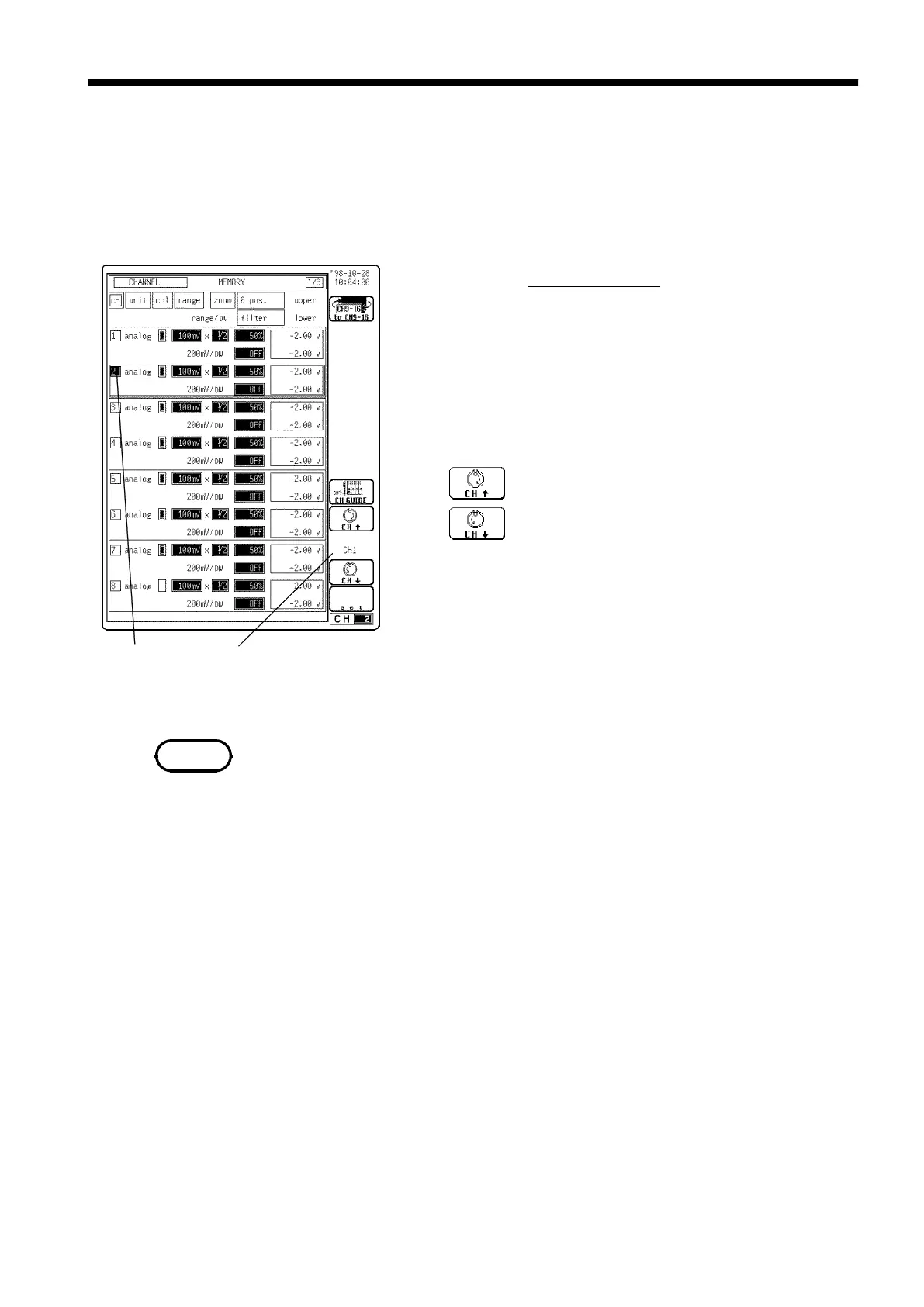

Screen: CHANNEL
1. Press the CHAN key to display the CHANNEL screen.
2. Move the flashing cursor to the number of the
channel to be used as copy source.
3. Use the function keys or the Jog/Shuttle control to
specify the copy target channel.
Selection of "for ALL" enables the settings
(comments) for the channel with the flashing cursor
to be copied to all channels
4. When set is pressed, the settings of the copy source
channel are copied to the copy target channel. For
variable function and scaling function, the settings
are copied in an identical.
Magnification and zero position are copied to the desired destination only
when the copy source is set to "for ALL" when copying is performed in the
input channel settings.
It is not possible to copy the settings of input channels and variable function
in a single operation.
To Next Page
