152
────────────────────────────────────────────────────
8.7 FFT Analysis Function
────────────────────────────────────────────────────
8.7.5 Auto Correlation [ACR]
Function
Raa (τ)=
-1
(Gaa)
= Gaa (ω)exp(jωτ)dω
Horizontal
cursor
Vertical
cursor
Stored waveform
uto correlation function
Displays the degree of similarity between two points in the input signal
separated by time difference (τ).
Major applications:
・Detecting a periodic signal contained in a noisy signal with an
improvement in signal-to-noise ratio.
・Checking the periodic signal components contained in a noisy waveform,
and periodic noise.
Time Time display. The center indicates the reference (τ=0), the
right side indicates time lag (+τ), and the left side indicates
time lead (-τ).
Linear Readings are between +1 and -1 (without units).
+1: the highest similarity for time differential τ
0: the lowest similarity, -1: the polarity is completely opposite.
Due to the characteristics of the function, τ=0 always results
in +1.

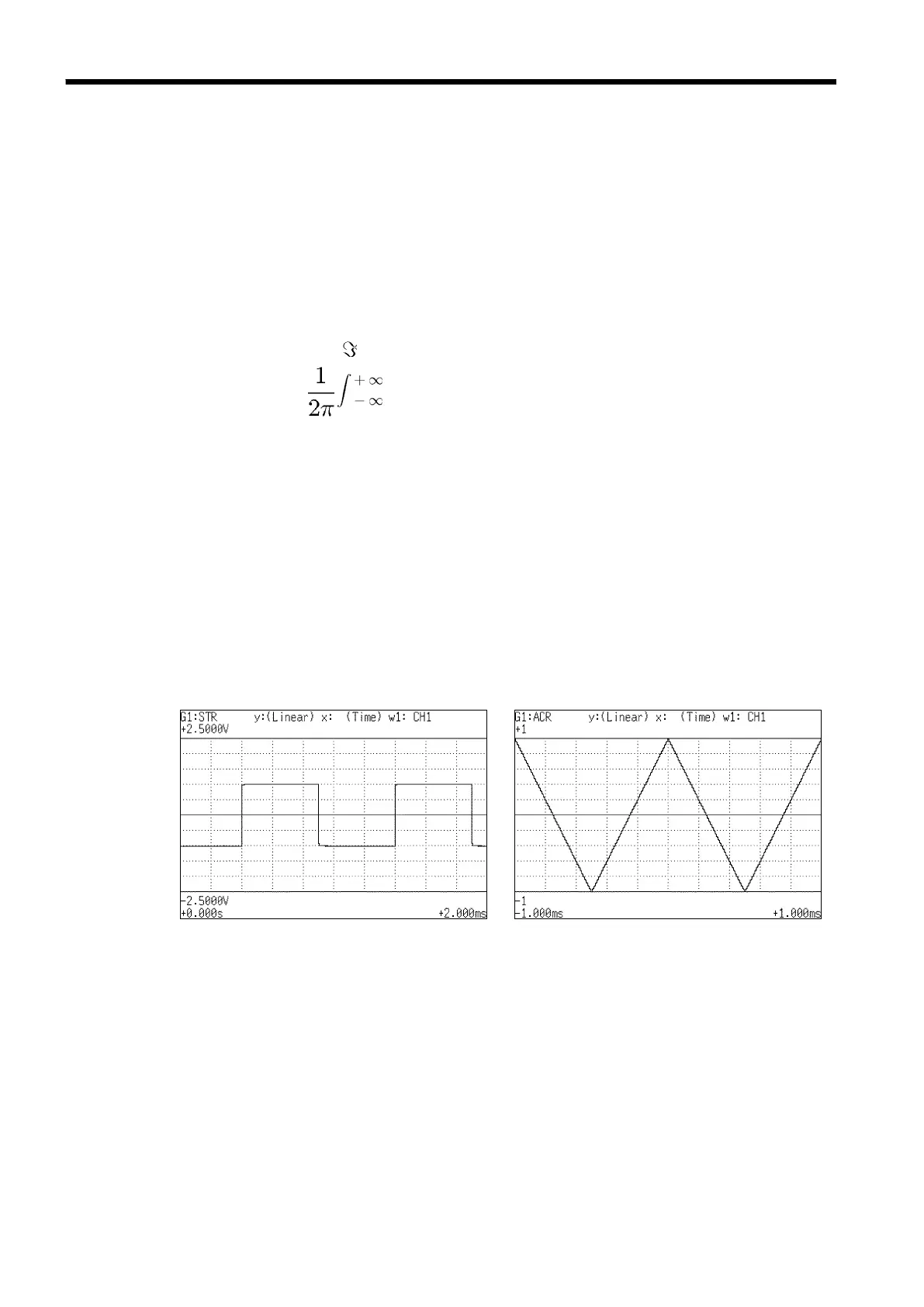

Example Auto correlation function waveforms
08-65, 38
