7.3 STATUS Settings (REC&MEM)
────────────────────────────────────────────────────
7.3.7 Setting the Additional Recording Function

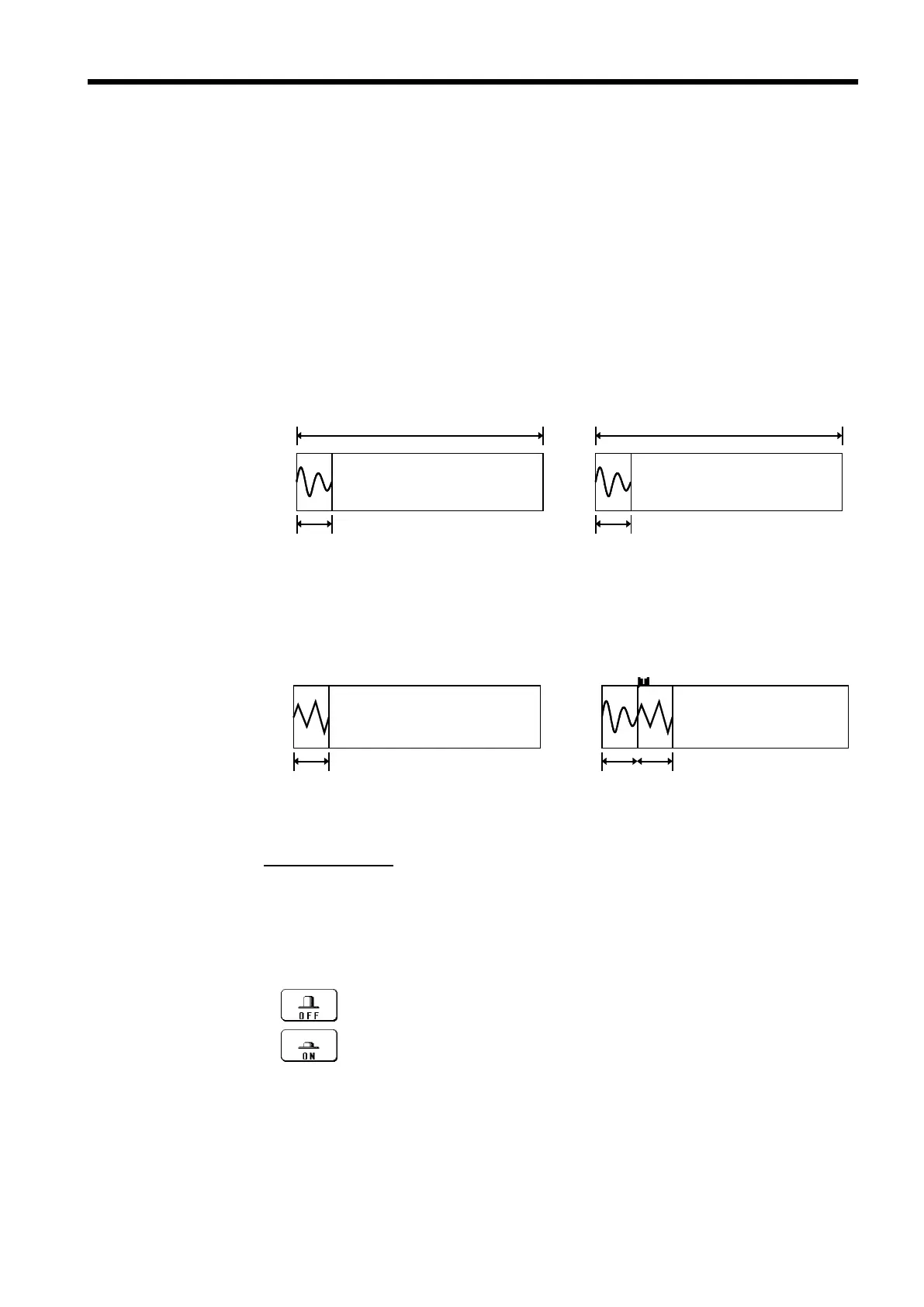

Additional recording: OFF
1. Recording 25 divisions of waveform
Additional recording: ON
1. Recording 25 divisions of waveform
1000 DIV
（
No memor
y
ex
p
ansion
）
25DIV
1000 DIV
（
No memor
y
ex
p
ansion
）
25DIV
2. Recording another 25 divisions of
waveform
The first set of measurement data is
discarded, and recording of the second
set of measurement data starts again
from the beginning of memory.
2. Recording another 25 divisions of
waveform
The first set of measurement data is
preserved, and recording of the second
set of measurement data starts after th
e
first set.
25DIV
The first and second sets of waveforms
can be observed by scrolling or
printing the waveform.
25DIV 25DIV
Function
display Meaning
:
Additional recording is disabled.
:
Additional recording is enabled.
This records, regarding the memory as though it were recording paper.
As waveforms captured by the recorder are stored in the unit's memory, this
machine can be operated as a paper recorder.
The memory capacity of 8 M words can accommodate up to 1000 divisions
of waveform data. With 32 M words (after optional memory expansion),
waveform data of up to 5000 divisions can be saved.
The waveform can be scrolled and printed out.
Switching the additional recording on and off affects the use of memory as
shown below.
Procedure
Screen: STATUS1
1. Press the STATUS key to display the STATUS1 screen.
2. Move the flashing cursor to the record add item.
3. Use the function keys to make a setting.
