13.2 Setting the STATUS Screen (printout)
────────────────────────────────────────────────────
13.2.1 Setting the Display Format

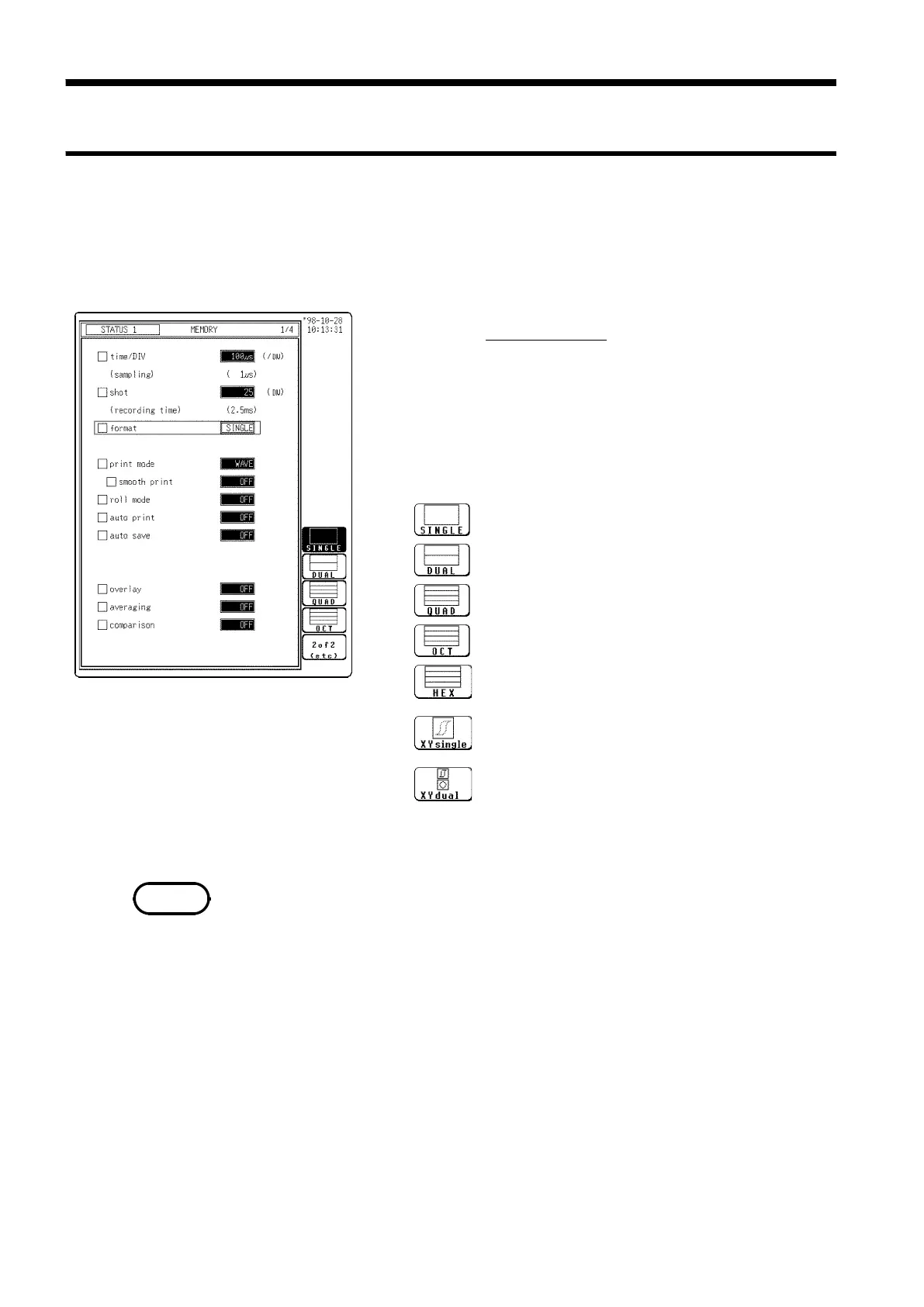

s1121-1
Function
display
Meaning
g-gr1, 2, 3, 4, 5, 6, 7
:
Display and record the waveform in one graph.
:
Display and record the waveform in two graphs.
:
Display and record the waveform in four
graphs.
:
Display and record the waveform in oct graphs.
:
The display format is the same as for an 8-part
screen, but waveforms may be printed from 16
graphs.
:
X-Y waveforms of graphs 1 to 4 are displayed
in one screen.
:
X-Y waveforms of graphs 1 and 3 are displayed
in the upper section, and those of graphs 2 and
4aredispla
ed in the lower section.
NOTE
13.2 Setting the STATUS Screen (printout)
・The style can be set for showing input signals on the screen display and
recording them on the printer.
・The styles single, dual, quad, oct (Waveform display screen), hex (Print only,
Display oct style) X-Y single, X-Y dual (dot/line) are available.
Procedure
Screen: STATUS
1. Press the STATUS key to display the STATUS screen.
2. Move the flashing cursor to the
format
item, as shown in
the figure on the left.
3. Use the function keys to select the display format.
X-Y screen can be set the memory recorder function and Recorder function.
