16.2 Calcu lating Waveform Data
────────────────────────────────────────────────────
16.2.1 Preparing for Waveform Processing
s1421
Function
display
Meaning
:
Disable waveform processing.
:
Enable waveform processing.
The various setting items are displayed.
:
Execute Waveform Processing
NOTE
Procedure

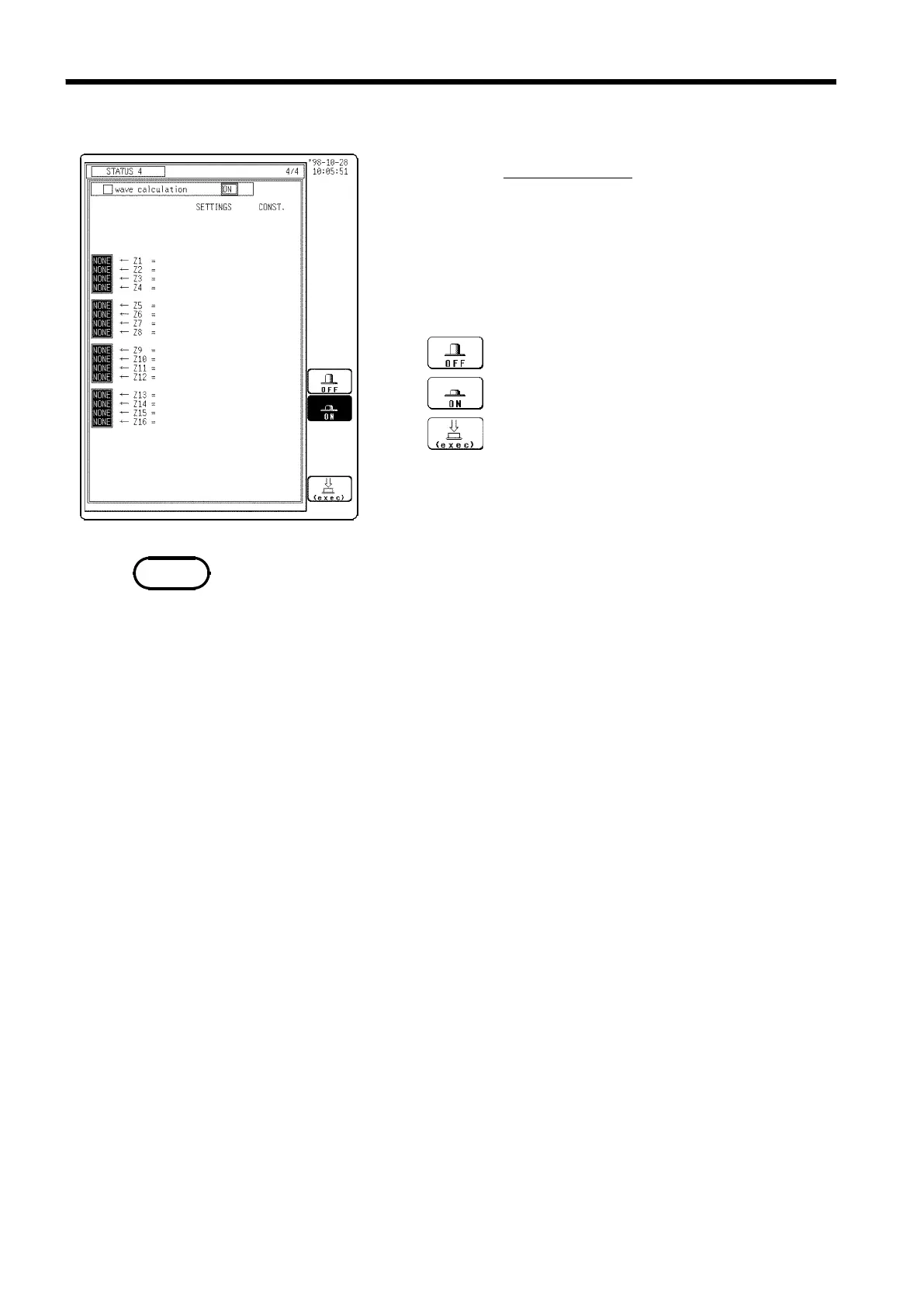

Screen: STATUS4
1. Press the STATUS key to display the STATUS4
screen.
2. Move the flashing cursor to
wave calculation
.
3. Make the setting with the function keys.
･ The maximum recording length at which waveform processing calculation is
possible is 1000 divisions (5000 divisions for 32 M words). If the recording
length exceeds this limit, the waveform processing calculation is disable.
･ When the memory segmentation function or roll mode is used, waveform
processing is not possible.
･ The averaged waveform becomes available for waveform processing when
the averaging setting is turned OFF following measurement.
･ When scaling is set for the channel in which the processing result is to be
stored, scaling is not carried out and only the unit is valid. (See Section 9.8)
･ When the waveform processing calculation executes simultaneously with
data acquisition, a forced termination displays the results being calculated.
In such cases, press the function key
RUN
to reexecute the calculation.
