4.3 ST ATUS Settings (MEM)
────────────────────────────────────────────────────
4.3.4 Setting the Display Layout
Flashing cursor
Function
display
Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
Graph
Analog
channel
Graph
Analog
channel
1
CH 1
9
CH19
2
CH 2
10
CH 10
3
CH 3
11
CH 11
4
CH14
12
CH 12
5
CH15
13
CH 13
6
CH16
14
CH 14
7
CH17
15
CH 15
8
CH18
16
CH 16
・The layout can be set for showing input signals on the screen display and
recording them on the printer.
・The following layout is available: single, dual, quad, oct (Waveform display
screen), hex (print only, oct graph on Waveform display screen) X-Y single,
X-Y dual (dot/line).
・The voltage per division is automatically changed according to the display
format.
Procedure
Screen: STATUS1
1. Press the
STATUS
key to display the STATUS1 screen.
2. Move the flashing cursor to the
format
item.
3. Use the function keys to select the display format.
4. Set the graph type when the display format is set to Dual, Quad, Oct or Hex
screen display. For the setting of the X-Y screen, refer to Section 4.4.
5. Press the
CHAN
key to display the CHANNEL screen.

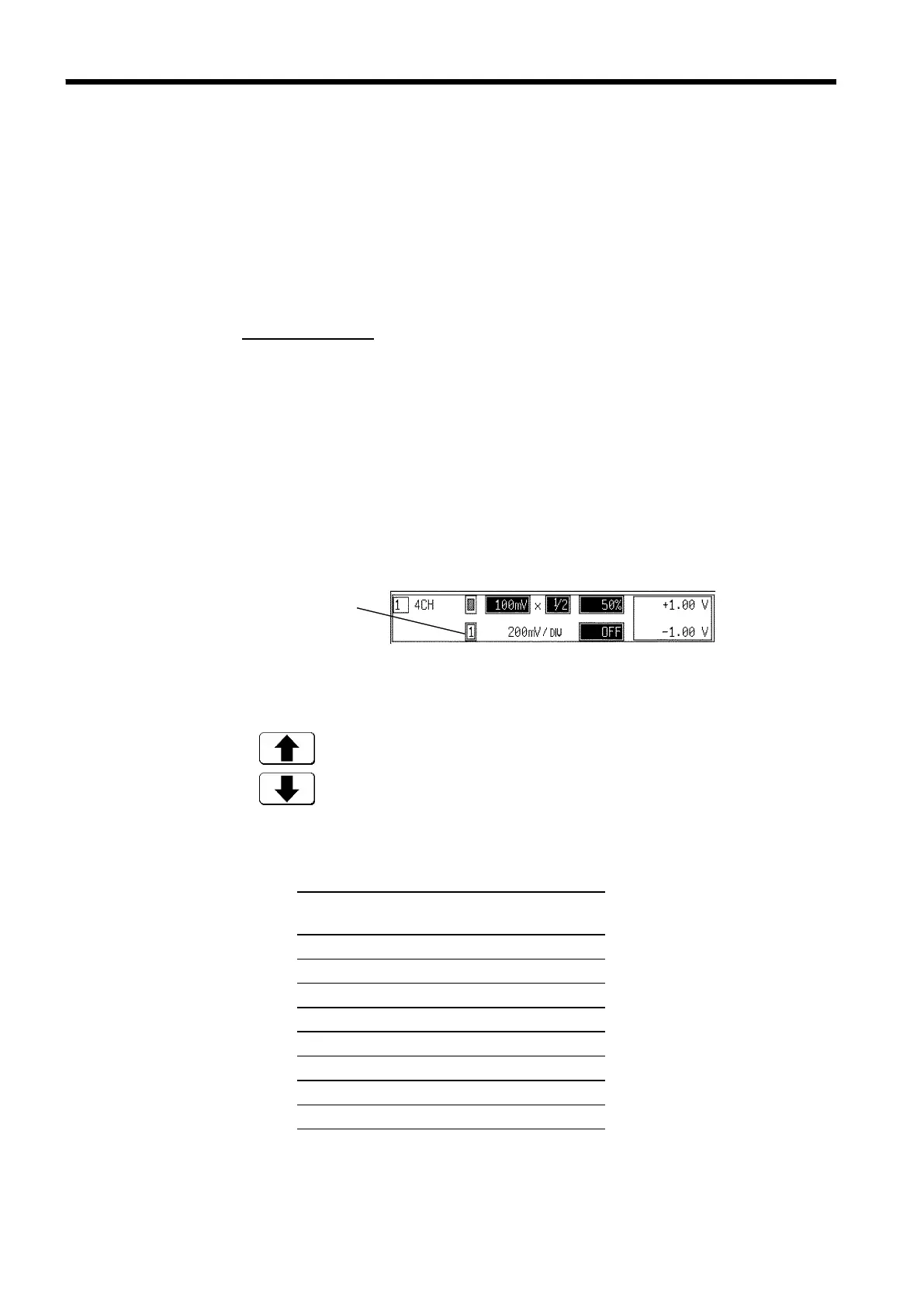

6. Move the flashing cursor to the point in the figure below.
The figure shows the setting for the channel 1 (CH1). Setting for the channel
2 to 16 should be made in the same way.
7. Use the function keys to select.
In the cases of HEX, as far as the printer recording output is concerned, the
waveforms for each channel are automatically distributed on each graph
according to the table below:
For details on logic channels, refer to Section 9.3.8.
