13.2 Setting the STATUS Screen (printout)
────────────────────────────────────────────────────
1
2
3
19
5
6
7
8
9
10
11
12
13
14
A
13.2.2 Setting the Print Mode
s1122-1
Function
display Meaning
##F5 g-wav,num
:
Measurement data and the result of calculation
are printed as a waveform.
:
Measurement data and the result of calculation
are printed as numeric data.
NOTE
Select the format, waveform, or numerical value should be used to output
measured data and calculation results.
Waveform The smooth print function can be used, but print speed will
decrease. (MEM, memory waveform in REC&MEM)
Numerical value The data spacing interval also must be set.
Procedure
Screen: STATUS (in Recorder/RMS function),
STATUS1 (in Memory recorder/REC&MEM function),
STATUS2 (FFT)
(1) Set the Print mode.

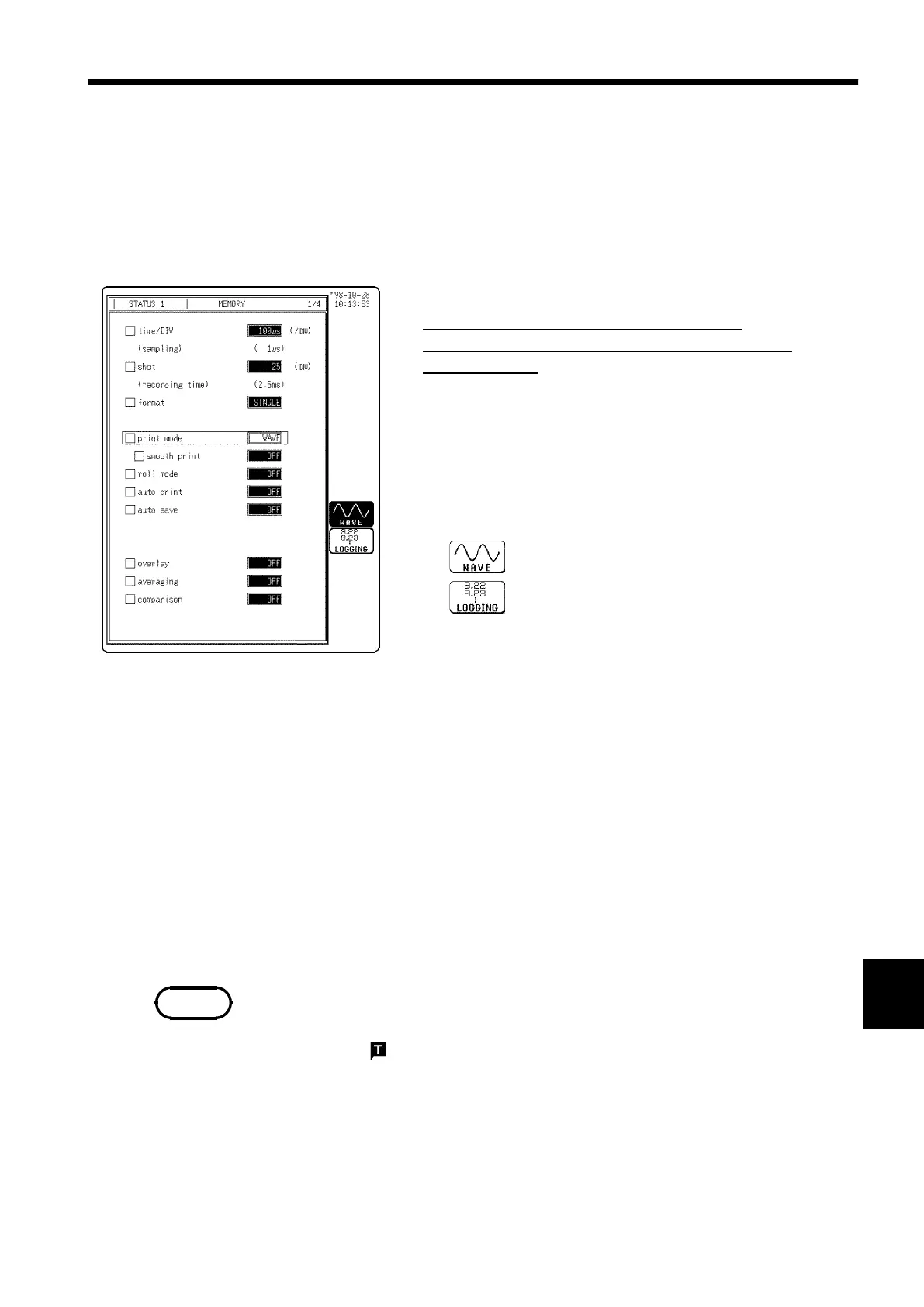

1. Press the STATUS key to display the STATUS screen.
2. Move the flashing cursor to the print mode item.
3. Use the function keys to make a setting.
.3.
(2) Set the Smooth printing and print interval.
1. When "WAVE" is selected in step (1), determine whether to use the
smooth printing or not. (in Memory recorder function, memory waveform
in REC&MEM function)
When "LOGGING" is selected, set the print interval. (unit: DIV, in FFT
number of points)
2. Move the flashing cursor to the "smooth print" or "interval" item.
3. Use the function keys to make the selection.
Since 1 division represents 100 samples, the print interval "0.01" refers to
a printout of every sample (no print interval). If the set print interval
exceeds recording length, only the first point is printed.
･ On X-Y screen, smooth printing cannot be specified.
･ In recorder function and recorder waveform in REC&MEM function, the
trigger mark ( ) is written as the start position mark. In an additional
recording, the trigger mark is displayed in front of the most recently entered
data.
･ When recorder function or RMS recorder function (excluding 5 s/DIV) and
recorder waveform in REC&MEM function, the maximum and minimum
values are printed (see Appendix 3.4 or 3.5).
The print intervals of 0.01 to 0.5 DIV can be selected, only when there are
waveform data present.
