9.14 8940 F/V UNIT
────────────────────────────────────────────────────
9.14.2 Setting the Count Mode
Flashing cursor
Flashing cursor
Function
display
Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
Function
display
Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
For count mode, the unit of measurement is 'c' (counts).
Procedure

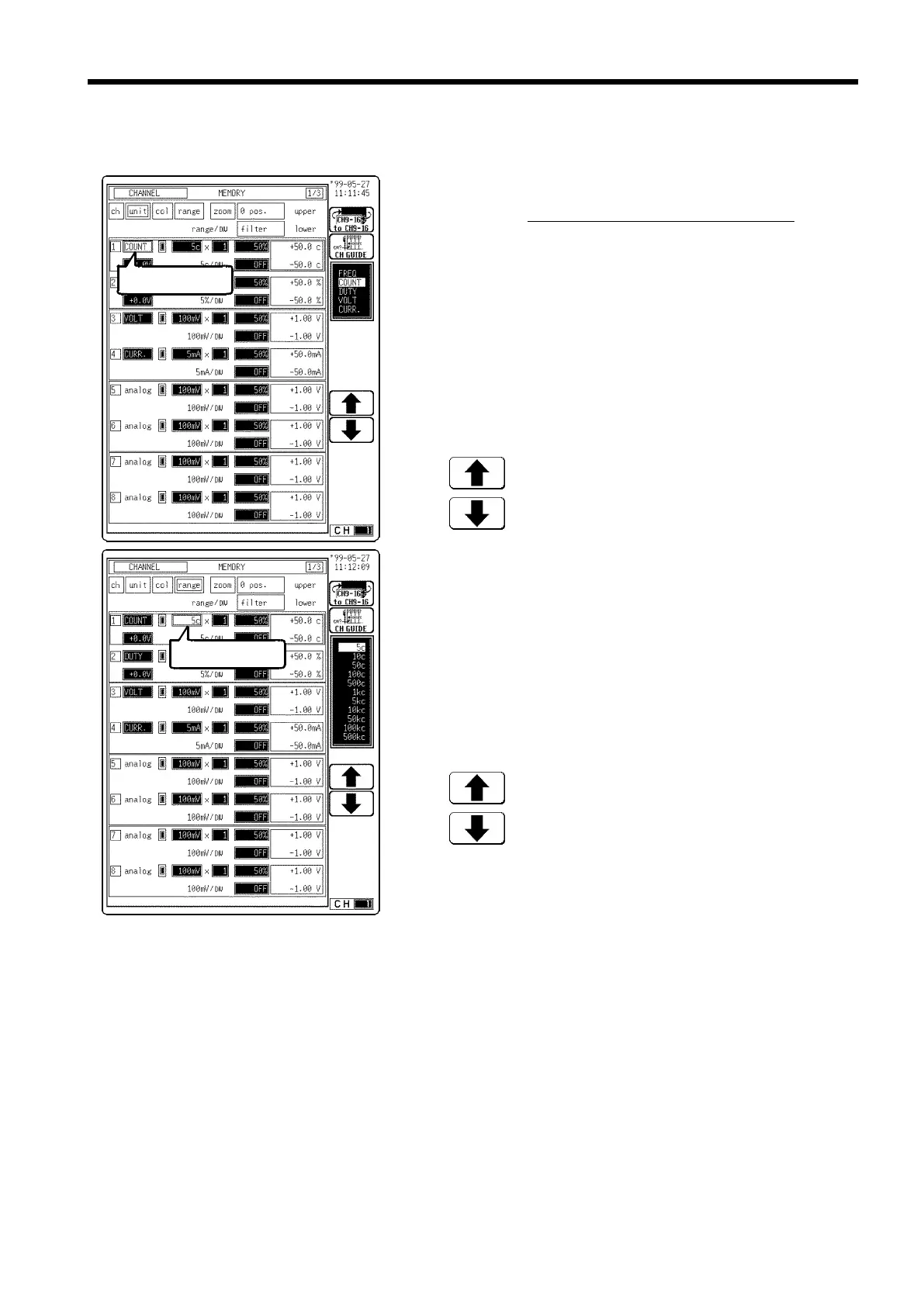

Screen: CHANNEL, Waveform display
(1) Set the measurement mode.
1. Display the CHANNEL or Waveform display screen.
2. Press the CH.SET key and move the flashing cursor to
desired channel.
3. Move the flashing cursor to the unit item and select.
4. Use the function keys, the Jog/Shuttle control to set
COUNT.
(2) Set the measurement range.
1. Move the flashing cursor to the position shown in the
figure on the left.
2. Use the function keys, Jog/Shuttle control, or RANGE
knob to set the measurement range.
With the RANGE knob, settings can be made
regardless of the position of the flashing cursor in the
channel being set.
To Next Page
