312
────────────────────────────────────────────────────
14.1 Floppy Disk
────────────────────────────────────────────────────
CAUTION
・
If a floppy disk is inserted upside down, backwards, or in the wrong
direction, the floppy disk or the unit may suffer damage. Before shipping
the unit, always remove the floppy disk.
・
2DD floppy disks formatted in PC9801 640 KB format cannot be used.
・
Do not remove the floppy disk while the floppy disk unit is operating (the
LED on the floppy disk unit is on).
・
The number of bytes depends on the floppy disk format.
・
If the write-protect tab on the floppy disk is in the set position, the
operations can not be performed.
・
The floppy disk must be initialized (formatted) before using it.

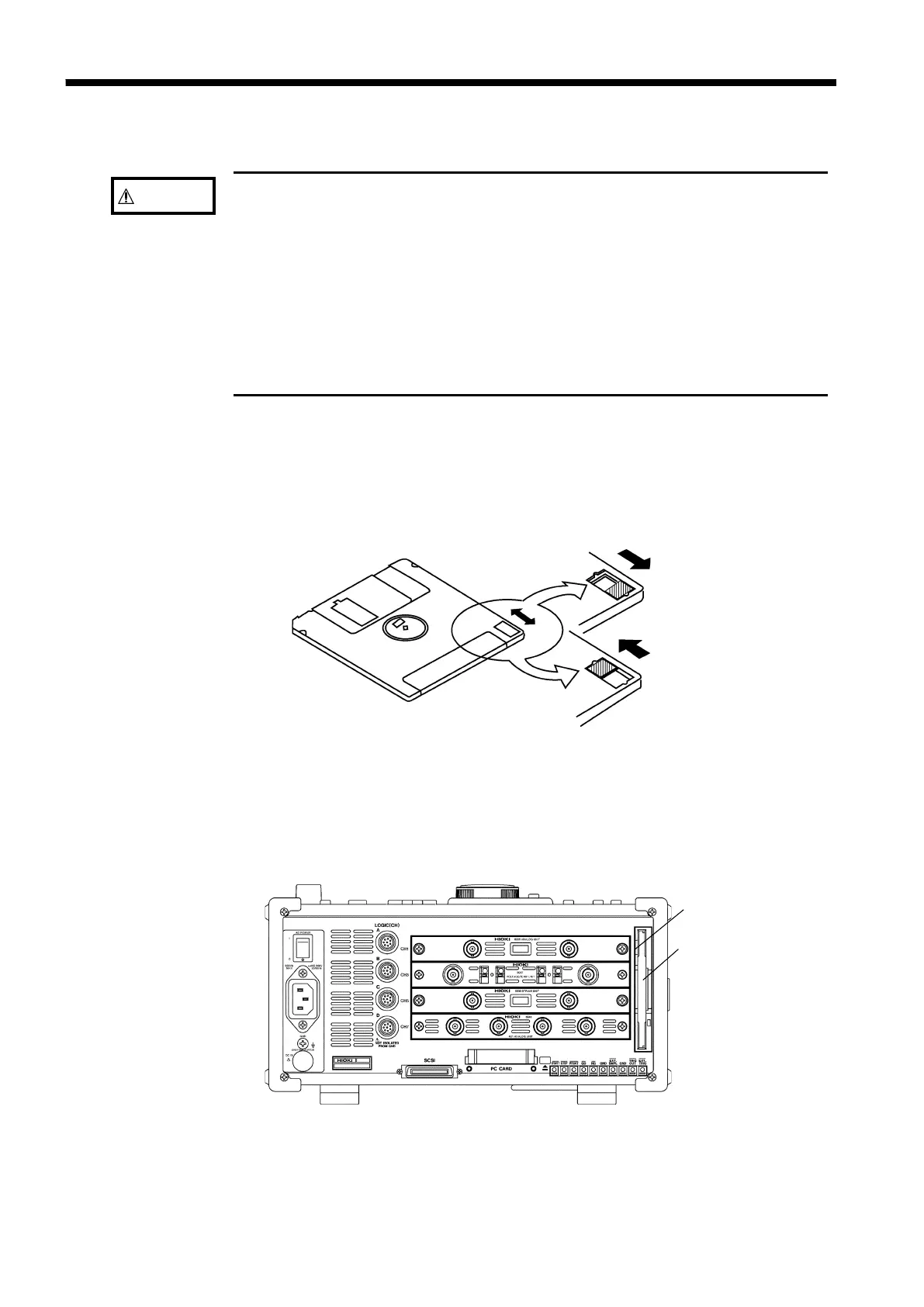

Write-protect
set position
Write-protect
unset position
Flo
ppy
disk slot
E
j
ect button
14.1 Floppy Disk
3.5 inch 2HD or 2DD floppy disks can be used.
The following floppy disk formats can be used:
720 KB (IBM PC/AT compatible), 1.2 MB (NEC PC-9801 series), 1.44 MB
(IBM PC/AT compatible or NEC PC-9801 series with 3-mode drive)
Write protection
How to set a floppy disk:
For horizontal installation of the unit, insert the floppy disk into the drive
with the disk label facing toward you. For vertical installation, insert the
floppy disk into the drive with the disk label facing downward.
To remove the floppy disk, press the eject button.
