16.1 Waveform Parameter Calculation (MEM)
────────────────────────────────────────────────────
16
17
18
19
5
6
7
8
9
10
11
12
13
14
A
16.1.1 Making Settings for Waveform Parameter Calculation
s1411-1, 2
Function
display
Meaning
:
Disable parameter calculation
:
Enable parameter calculation. The various
setting items are displayed.
:
Execute Waveform Parameter Calculation.
Function
display Meaning
:
Disable printout of parameter calculation results
:
Enable printout of parameter calculation results
Function
display
Meaning
##F7 g-mo
:
Storing is disabled.
:
Stored on floppy disk.
:
Stored on PC card
:
(When using the LAN card)
A LAN is used to transfer data to the 9333 LAN
COMMUNICATOR.
:
Stored on connected SCSI device
:
Stored on MO disk
Waveform parameter calculations results can be printed on the internal
printer.
Waveform parameter calculations results can be saved in text format to the
current directory selected in the FILE screen.
For the file name to be saved, see Section 14.7, "Saving the Data."
Procedure

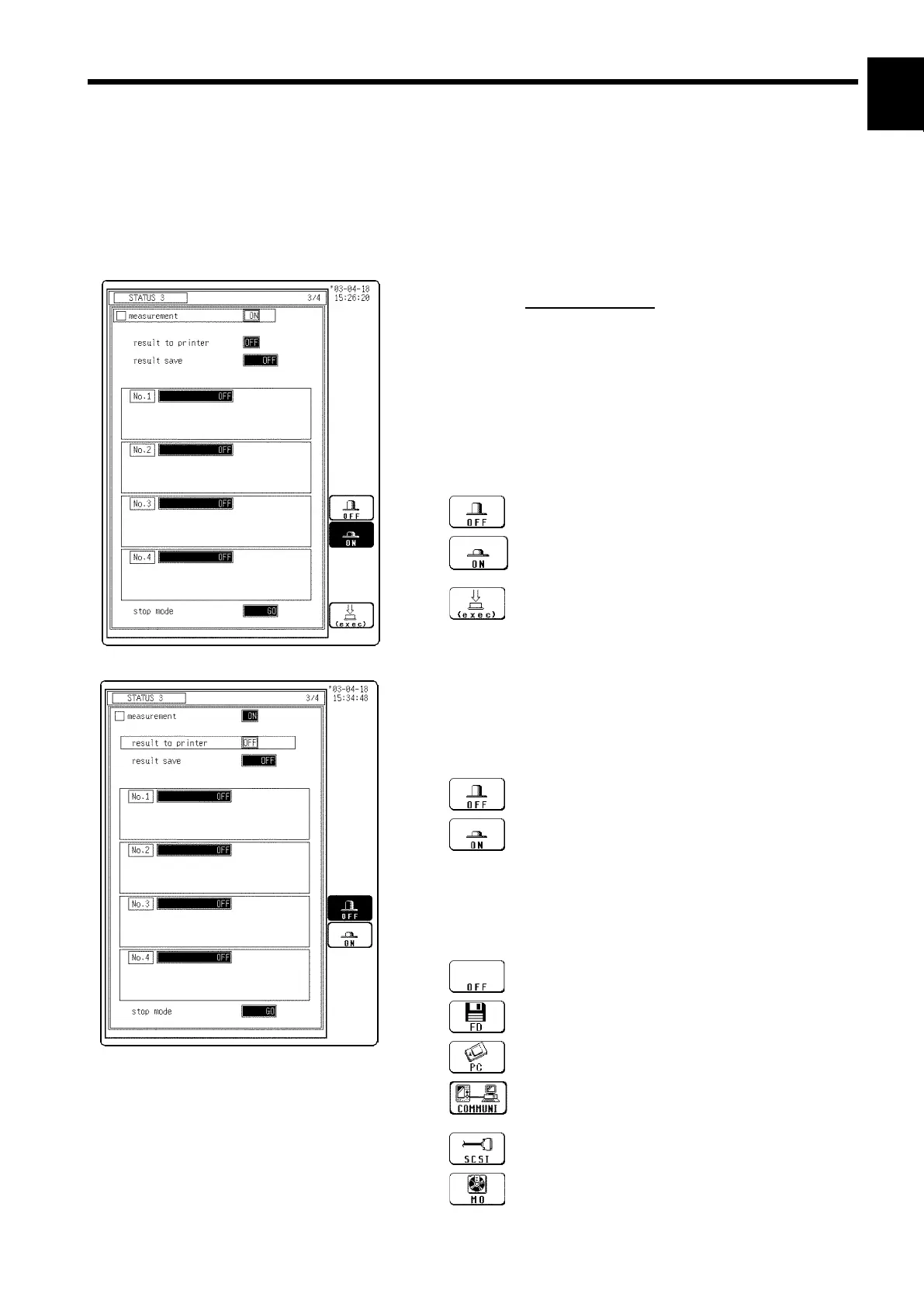

Screen: STATUS3
(1) Set the waveform parameter calculation.
1. Press the STATUS key to display the STATUS3
screen.
2. Move the flashing cursor to
measurement
.
3. Use the function keys to make the selection.
(2) Set for parameter calculation result printout and
saving
1. Move the flashing cursor to
result to printer
2. Use the function keys to make the selection.
3. Move the flashing cursor to
result save.
4. Use the function keys to make the selection.
