16.3 Waveform GO/NG Evaluation (MEM, FFT)
────────────────────────────────────────────────────

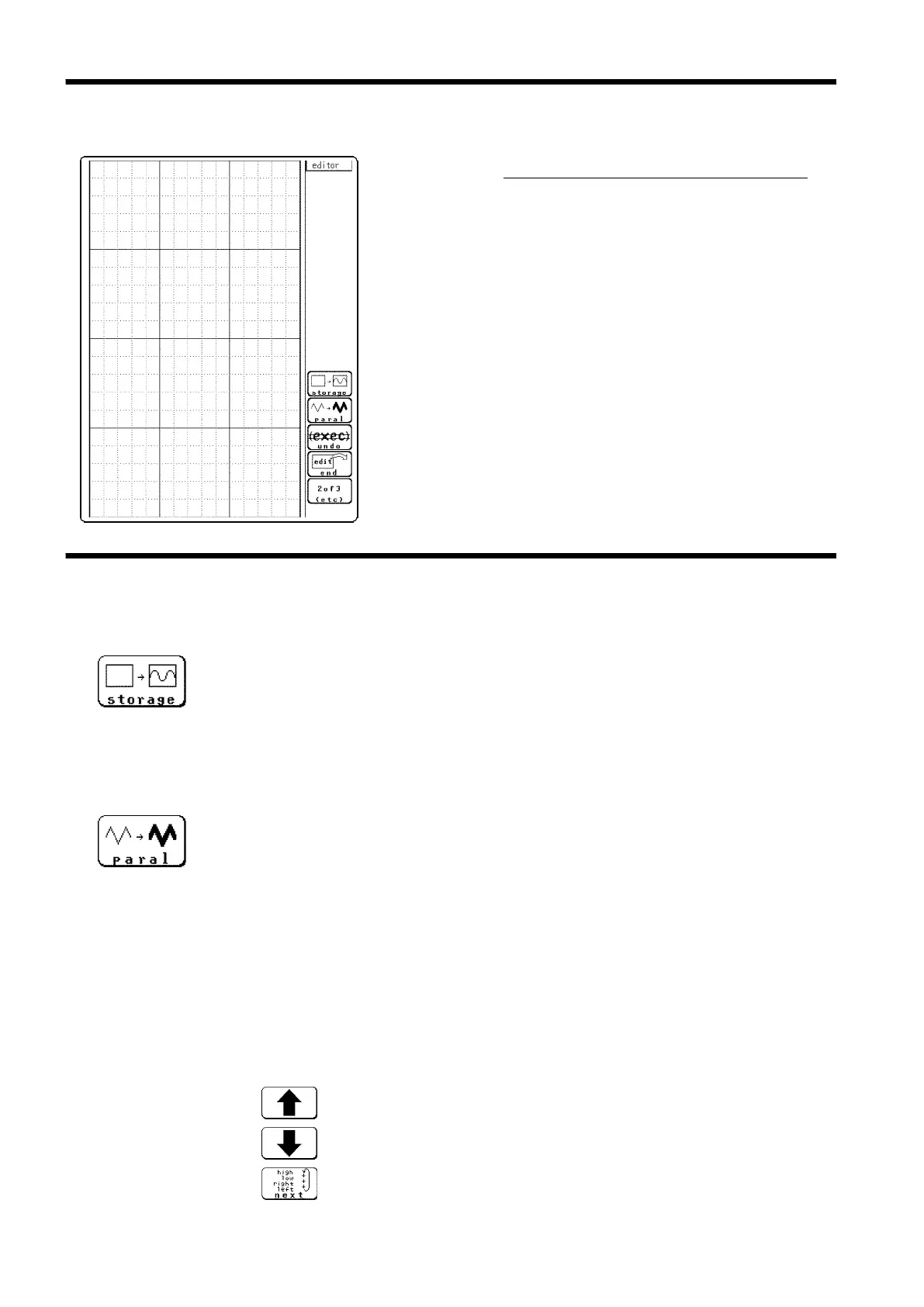

16.3.4 Creating the Evaluation Area
s1434
16.3.5 Editor Command Details
Function
display
Meaning
g-crs
:
Increase shift amount
:
Decrease shift amount
:
Cycle the cursor through up/down/right/left
Procedure
Screen: STATUS1 (MEM), STATUS2 (FFT)
1. Move the flashing cursor to the comparison item.
Select the
Edit function key.
2. Use these commands to create the evaluation area.
3. When the area has been stored in memory, it can be
used for waveform evaluation.
4. Select the end
function key to terminate the editor.
5. Serves to store the created area in memory.
6. Save the evaluation area through the FILE screen, if
necessary. See Section 14.7.
storage
Function key display: 1/3
g-ed1
Loads a waveform already stored in memory into the editor.
Press this key and the waveform that was displayed on the screen is loaded
into the editor.
The imported waveform is shown in a different color from the original
setting.
parallel
Function key display: 1/3
g-ed2
Shifts the line pattern in parallel direction, to create an area.
1. Press this key.
2. Set the amount of shift.
・Use the function keys or the Jog/Shuttle control to set the value.
・Use the
next
key (or the cursor keys) to set the shift amount in the
up/down/right/left directions.
・Minimum shift increments is 0.05 movement.
3. Press the
(exec) key. The parallel shift is carried, thereby creating the
evaluation area.
4. Press the exit
key to terminate the parallel shift mode.
