16.3 Waveform GO/NG Evaluation (MEM, FFT)
────────────────────────────────────────────────────
Function
display Meaning
g-ar1, 2
:
Store evaluation area in memory and quit editor
:
Quit editor without storing evaluation area in
memory. The created area is discarded.
:
Cancel and continue editor.

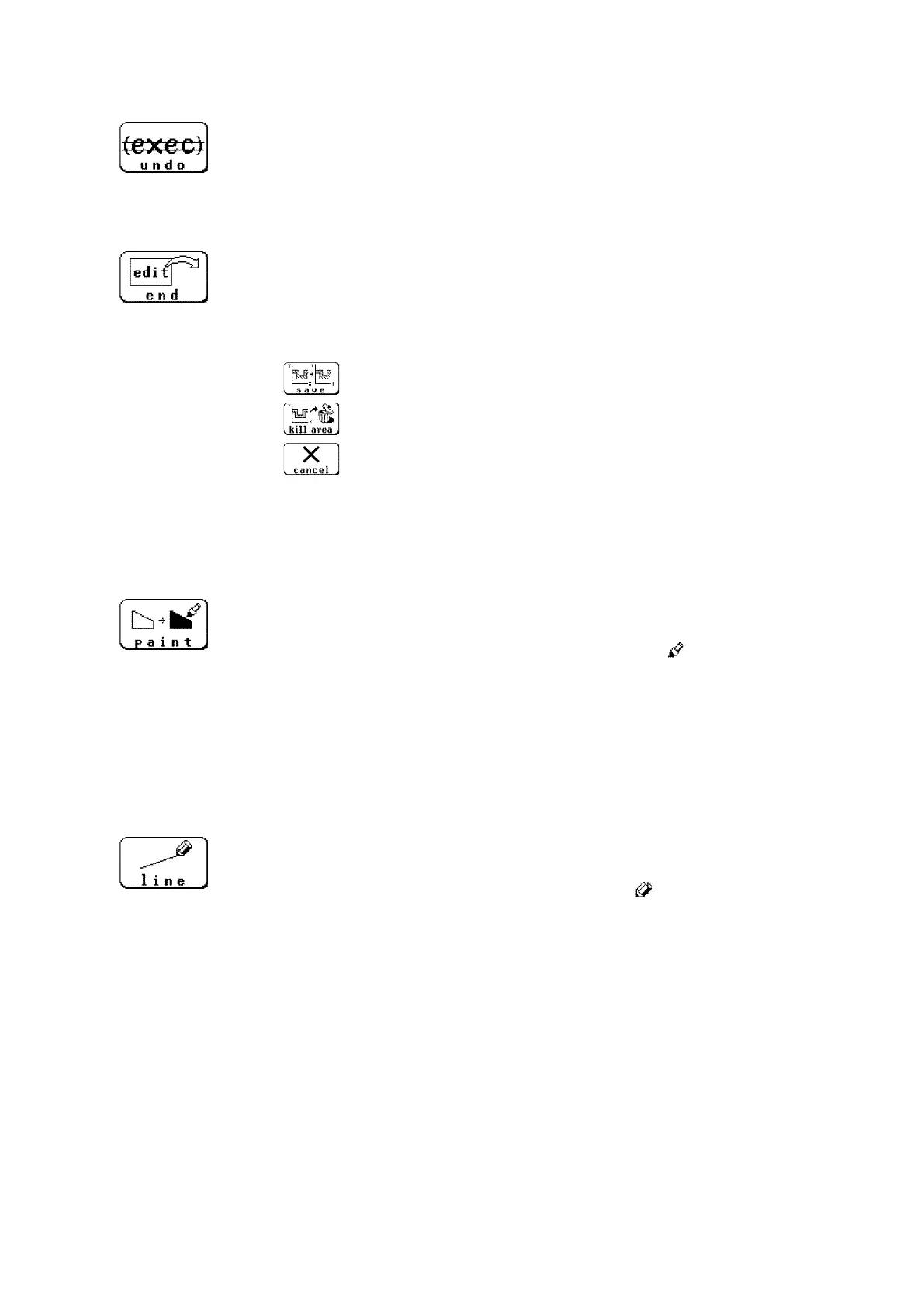

undo
Function key display: 1/3
g-ed3
Serves to undo the immediately preceding command.
Undo is applicable to all commands except save and end.
Press this key and clears the editor screen
end
Function key display: 1/3
g-ed4
Terminates the editor.
Press this key and select storing evaluation area in memory and quit editor
or quitting editor without storing evaluation area in memory.
If the
end
key is pressed without having done any editing or immediately
after using the store command, the editor is terminated without confirmation.
paint
Function key display: 2/3
g-ed5
Fills in an enclosed area.
1. Press this key.
2. Use the cursor keys to move the paintbrush mark to the area to be
filled in. Pressing
speed up
accelerates the movement of the mark.
If the area is not completely enclosed, adjacent areas will also be filled in.
3. Press the
(exec)
key. The area completely enclosed by lines is filled in.
4. Press the
exit
key to terminate the paint mode.
line
Function key display: 2/3
g-ed6
Serves to draw a straight or polygonal line.
1. Press this key.
2. Use the cursor keys to move the pencil mark
to the start point of the
line. Pressing
speed up
accelerates the movement of the mark.
If the area is not completely enclosed, adjacent areas will also be filled in.
3. Press the SET key.
4. Move the pencil mark. A line is drawn between the set point and the
pencil mark.
5. Press the
SET key again. The color of the line changes, and it is fixed.
Press the CANCEL
key. Cancel the immediately preceding set point.
6. Repeat steps 4. and 5. when wishing to draw a polygonal line.
7. Press the
exit
key to terminate the line mode.
