378
────────────────────────────────────────────────────
16.3 Waveform GO/NG Evaluation (MEM, FFT)
────────────────────────────────────────────────────
NOTE

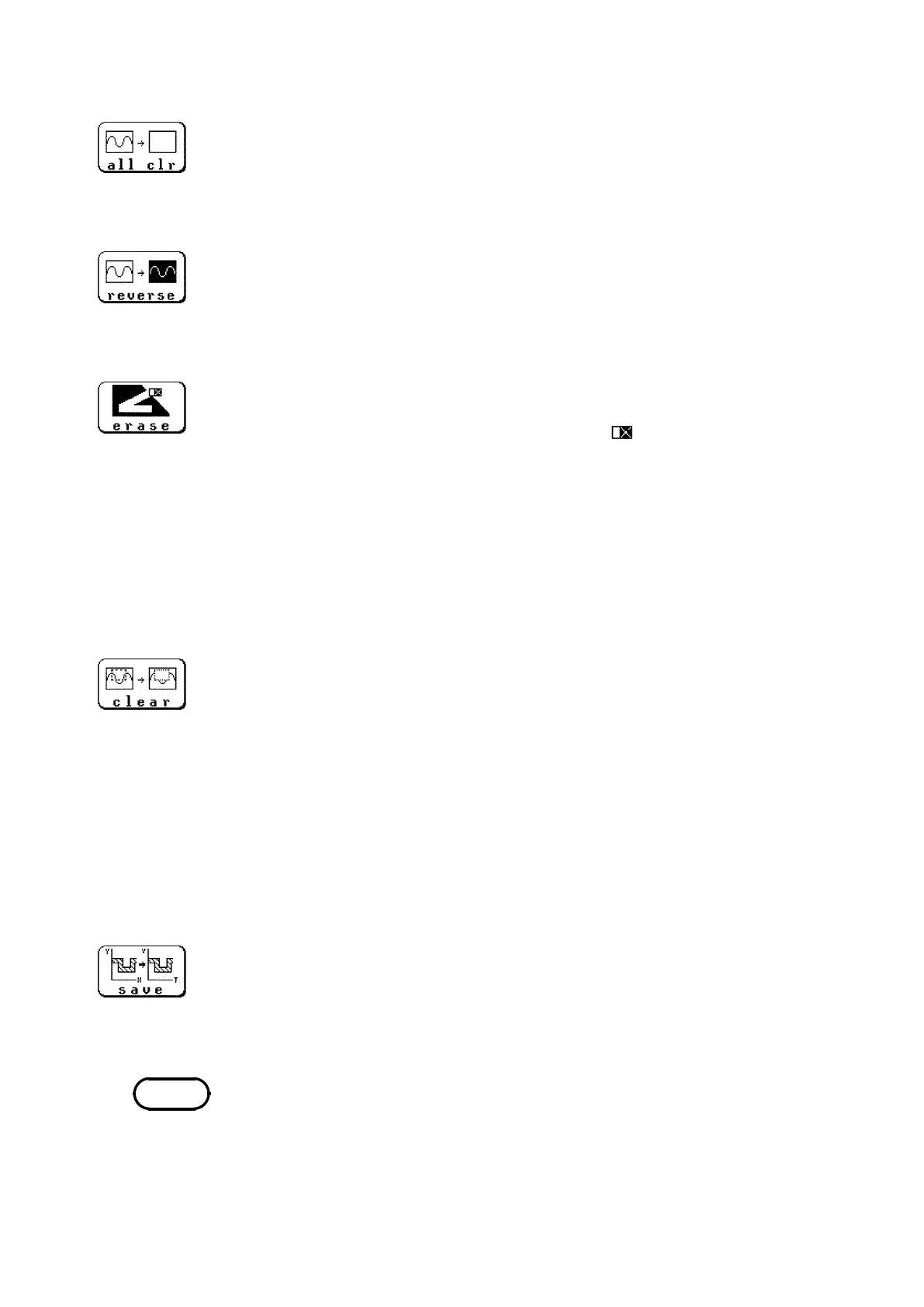

all clr
Function key display: 2/3
g-ed7
Clears the entire editor screen.
Pressthiskey.
reverse
Function key display: 2/3
g-ed8
Reverses the colors of a filled-in area and the surrounding area.
Pressthiskey.
Displays filled in area in reverse.
erase
Function key display: 3/3
g-ed9
Serves to erase unwanted sections.
1. Press this key.
2. Use the cursor keys to move the eraser mark to the start point of the
section to be erased.
Pressing
speed up
accelerates the movement of the mark.
3. Press the
SET
key.
Press the
CANCEL
key. Cancel the immediately preceding set point.
4. Move the eraser mark to erase the unwanted section.
5. Press the exit key to terminate the erase mode.
clear
Function key display: 3/3
g-ed10
Clears a specified rectangular area of the editor screen.
1. Press this key.
2. Use the cursor keys to move the pencil mark to the start corner of the area
to be erased. Pressing
speed up
accelerates the movement of the mark.
3. Press the
SET
key.
4. Move the pencil mark to the end corner of the area to be erased.
5. Press the SET key again. The rectangular area is cleared.
Press the
CANCEL
key. Cancel the immediately preceding set point.
6. Press the
exit
key to terminate the clear area mode.
save
Function key display: 3/3
g-ed11
Serves to store the created area in memory.
After an area has been stored, it can be used for waveform evaluation.
Pressthiskey.
For storing to the media, refer to Section 14.7.
If the
end
key is pressed without having done any editing or immediately
after using the store command, the editor is terminated without confirmation.
