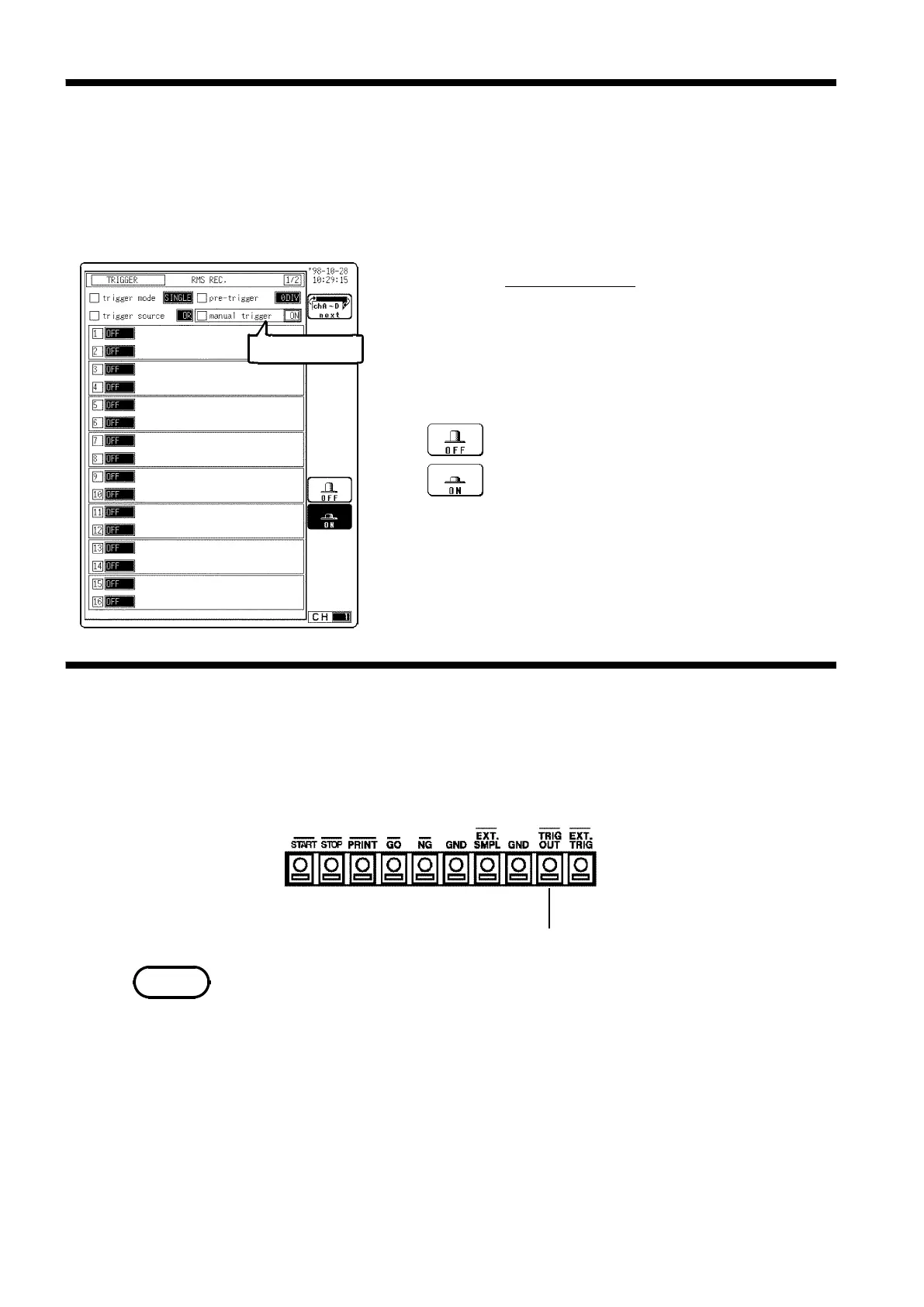

10.12 Manual Trigger
────────────────────────────────────────────────────
s812
Flashing cursor
Function
display
Meaning
:
Manual trigger is disabled.
:
Manual trigger is enabled.
Trigger output terminal
NOTE
10.12 Manual Trigger
10.13 Trigger Output Terminal
・Triggering occurs when the MANU TRIG key is pressed.
・The manual trigger is always activated when the MANU TRIG key is
pressed, regardless of trigger source AND/OR linking setting.
Procedure
Screen: TRIGGER
1. Press the TRIG key to display the TRIGGER screen.
2. Move the flashing cursor to manual trigger.
3. Use the function keys to make the selection.
・When triggering occurs, a signal is output from the TRIG OUT terminal.
・This can be used to synchronize several 8841/42 units.
・For details, see Section 17.1.3.
Pressing the AUTO key to use the auto ranging function causes a trigger
signal to be output. Care is therefore required when using the auto ranging
function when the trigger output terminal is in use. (Only a memory recorder
function)
