243
────────────────────────────────────────────────────

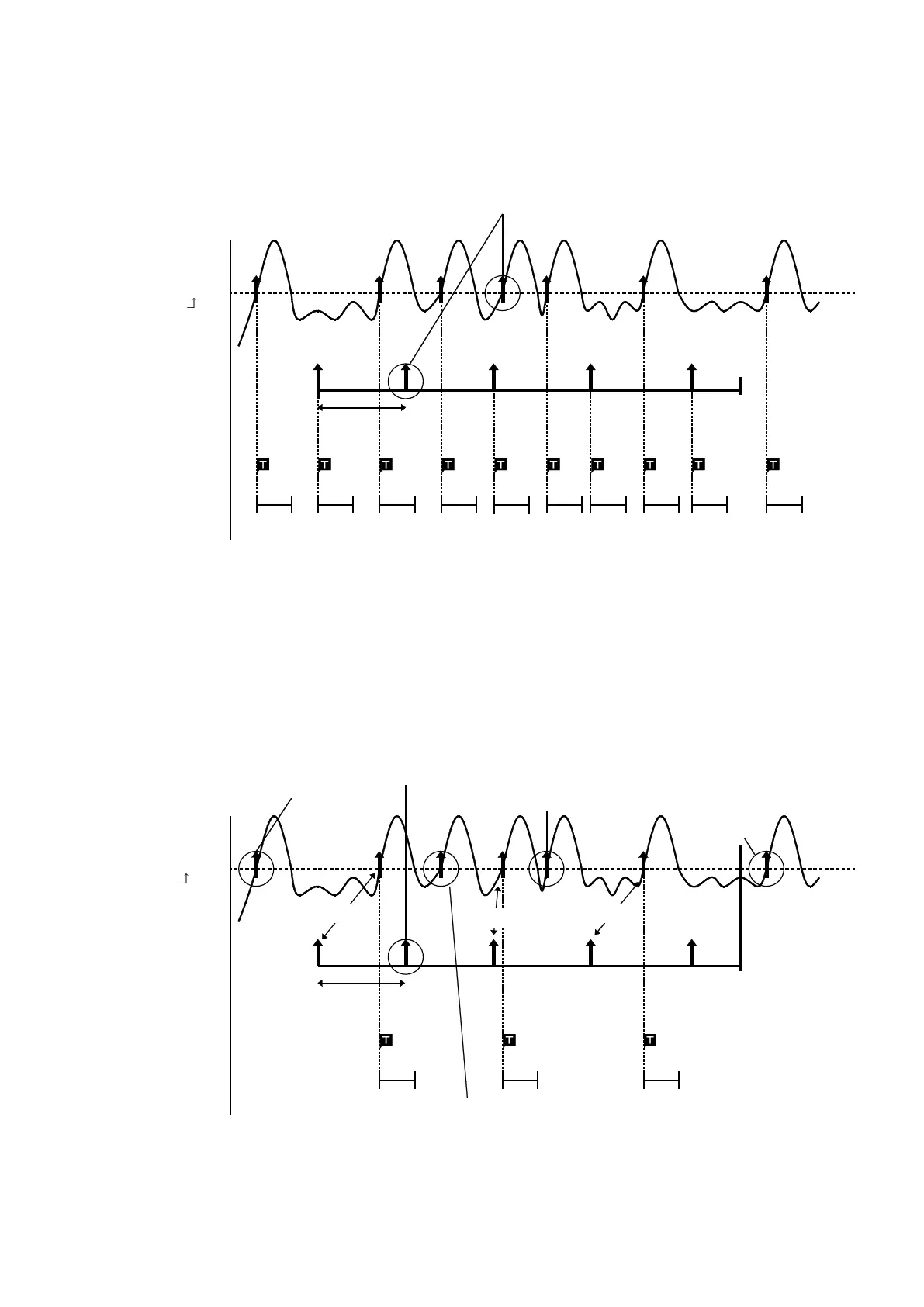

10.11 Timer Trigger Function
────────────────────────────────────────────────────
Start time
Measurement start
Invalid (overlaps with recording)
Level trigger
slope:
Timer trigger
Interval
End time
Recording length
Start time
End time
Invalid (overlaps with recording)
Invalid (not more than one trigger in interval)
Outside of
timer trigger
AND
AND
AND
Measurement
start
Level trigger
slope
Timer trigger
Recording
length
Interval
Outside of
timer trigger
Measurement
stop
Outside of
timer trigger
Relation between timer trigger and AND/OR linking
When trigger sources are set to OR:
All trigger sources are valid. If other trigger sources have been set, triggering
can also occur before the start time or after the end time.
When trigger sources are set to AND:
・Measurement is carried out from the start time to the end time. Triggering
occurs at the preset intervals if the conditions for the other trigger sources
are also met at these points.
・If the interval has been set to 0s, triggering occurs at any point between the
start and end time, if the conditions for the other trigger sources are met.
