13.4 Setting the SYSTEM Screen (printout)
────────────────────────────────────────────────────
13.4.4 Setting the Output Destination by the COPY Key
s1144
･ If the files are output to floppy
disks or PC cards and the output is
in monochrome, the screen displays
in monochrome during data
storage.
･ Using the
COPY
key, output may be
set to the internal printer, external
printer, floppy disk, PC card,
interface, MO disk, or external
SCSI storage device.
･ Refer to the printer operating
manual for the control codes.
･ Files stored in BMP format cannot
be read by the 8841/42.
NOTE
Function
display Meaning
g-p1, p2, p3, #gc-mo
:
Output to internal printer.
:
Output to external printer.
:
Save bitmap file to FD.
:
Save bitmap file to a PC card.
:
Send the data displayed on-screen to the
interface.
:
Save the data displayed on-screen in BMP
format to an external storage device attached to
the SCSI port.
:
Save bitmap file to the internal MO.
Function
display
Meaning
##g-esc
:
Use the ESC/P as a control code.
:
Use the ESC/P raster as a control code.
Function
display
Meaning
##g-cl1, cl2, cl3, cl4
:
Output data in color.
:
Output data in gray scale. (This setting is
disabled for external printers.)
:
Output data in monochrome.
:
Output data in inverted monochrome.
To output data with the 8841/8842 printer, set destination to "Internal
Printer". When the external printer, see Section 13.7, "External Printer".
Procedure

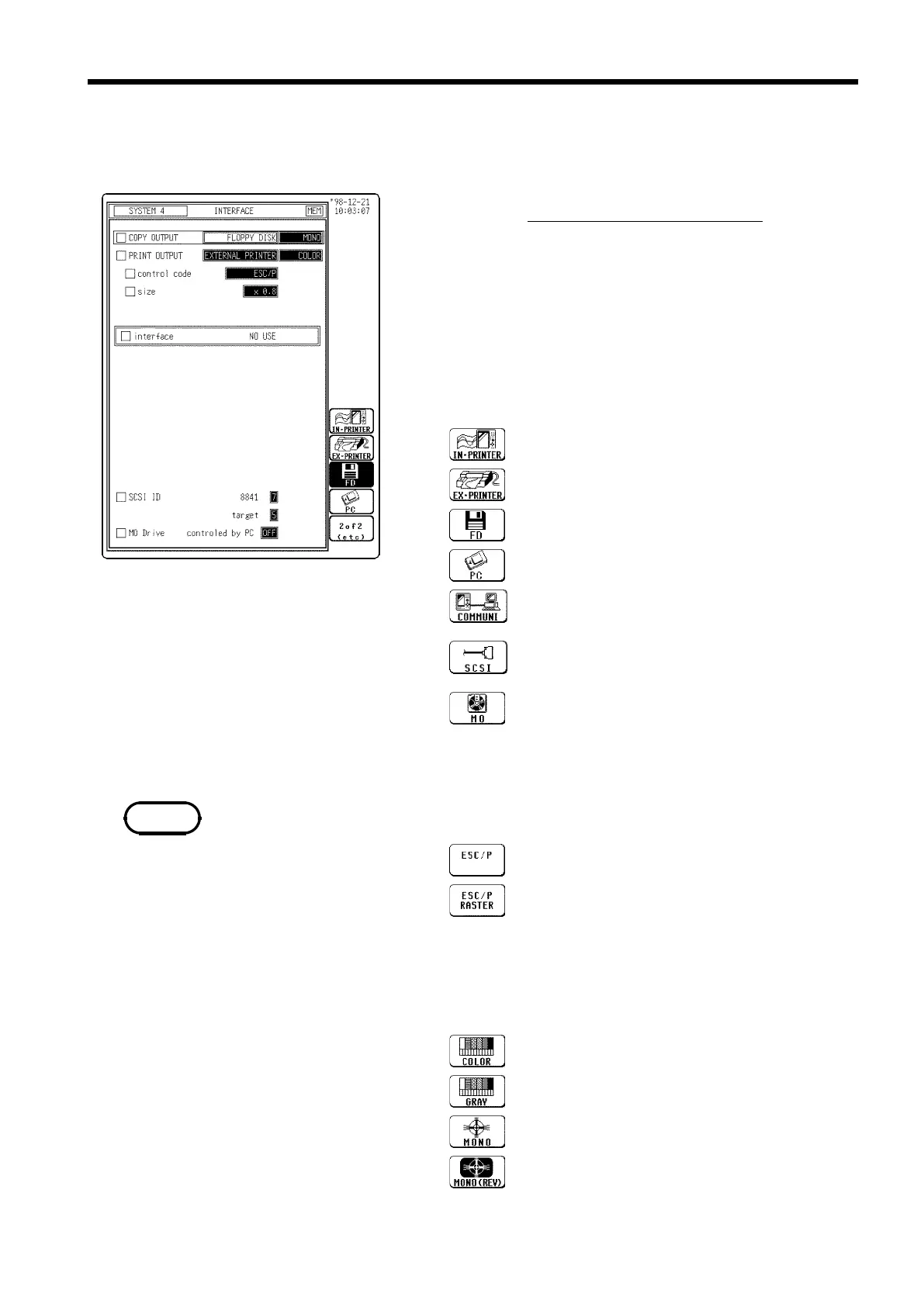

Screen: INTERFACE (SYSTEM4)
1. Press the SYSTEM key or function key to display the
INTERFACE screen.
2. Move the flashing cursor to the position shown in the
figure on the left.
3. Use the function key to make a setting.
・ Selecting the copy destination
・ Selecting the control code.
(When the output destination is set to external printer)
・ Selecting the color of the output destination
(When the output destination is set to other than
internal printer)
