11.1 Scrolling the Waveform
────────────────────────────────────────────────────
s91
Displayed screen
Position display by the VIEW key




Scrolling the waveform to the right
11.1 Scrolling the Waveform
The waveform on the display can be scrolled horizontally.
Procedure
Screen: Waveform display
1. Press the WAVE select key.
2. Use the Jog/Shuttle control to scroll the waveform
Auto-scroll
If turning the the Shuttle control fully and holding the control for about five
seconds, the indication "auto scroll" appears on the function key display and
the waveform continues to scroll even if releasing the control.
Auto-scroll is canceled by pressing any key.

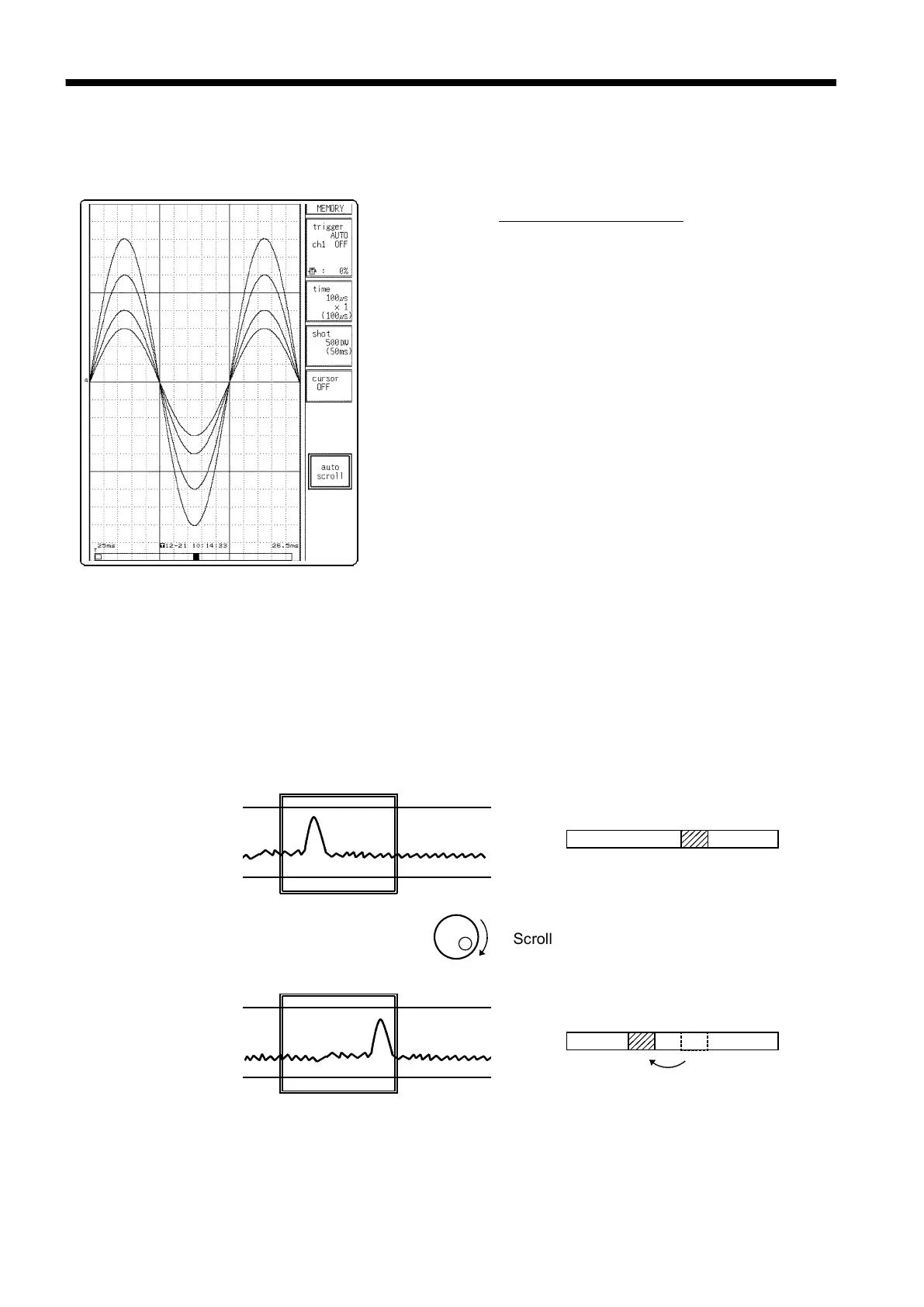

When the waveform is scrolled, the screen status and waveform position are
as illustrated below.
