132
────────────────────────────────────────────────────

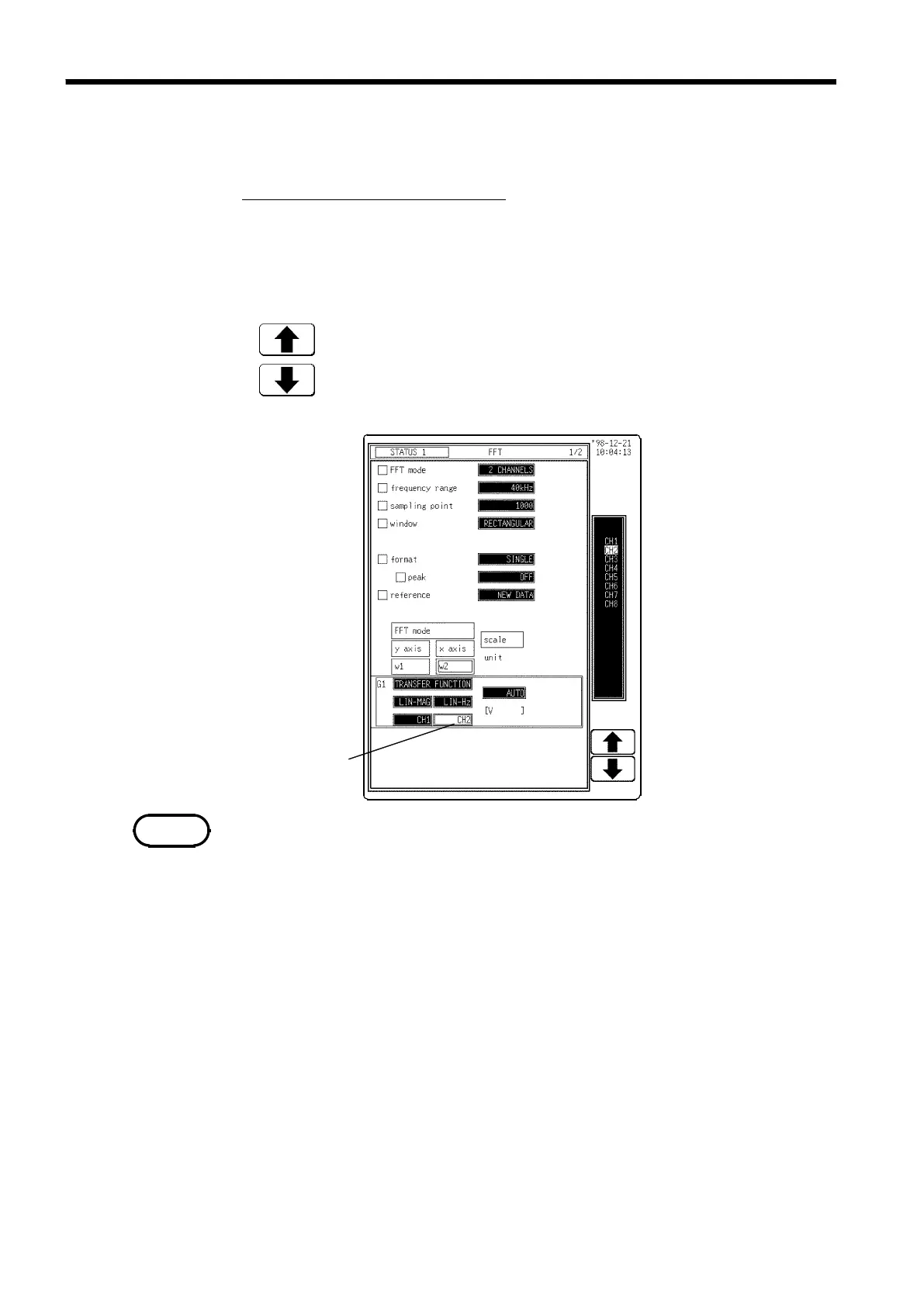

8.3 STATUS1 Settings (FFT)
────────────────────────────────────────────────────
8.3.10 Setting the Analysis Channel
Function
display Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
Flashing cursor
NOTE
Select the channel for FFT analysis.
Procedure
Screen: STATUS1, Waveform display
1. Use the Menu keys to display the desired screen.
2. Move the flashing cursor to the w1 or w2 item.
3. Use the function keys or Jog/shuttle control, select the channel.
･ The values for transmission interval and single impulse response are
calculated from (W2)/(W1).
･ To analyze data without aliasing distortion due to sampling, we recommend
that you use a channel input unit that is capable of FFT analysis, such as the
8938 FFT ANALOG UNIT.
To Next Page
