8.7 FFT Analysis Function
────────────────────────────────────────────────────
8.7.1 Storage Waveform [STR]
Function
Horizontal
cursor
Vertical
cursor
8.7 FFT Analysis Function
Displays the time domain waveform of the input signal.
fa
Time Time axis display
Indicates the value of the specified TIME/DIV frequency
range.
(Refer to the table of the frequency range and time axis in
Section 8.3.3.)
Linear Indicates the value of the measurement range of the input unit
in voltage units.

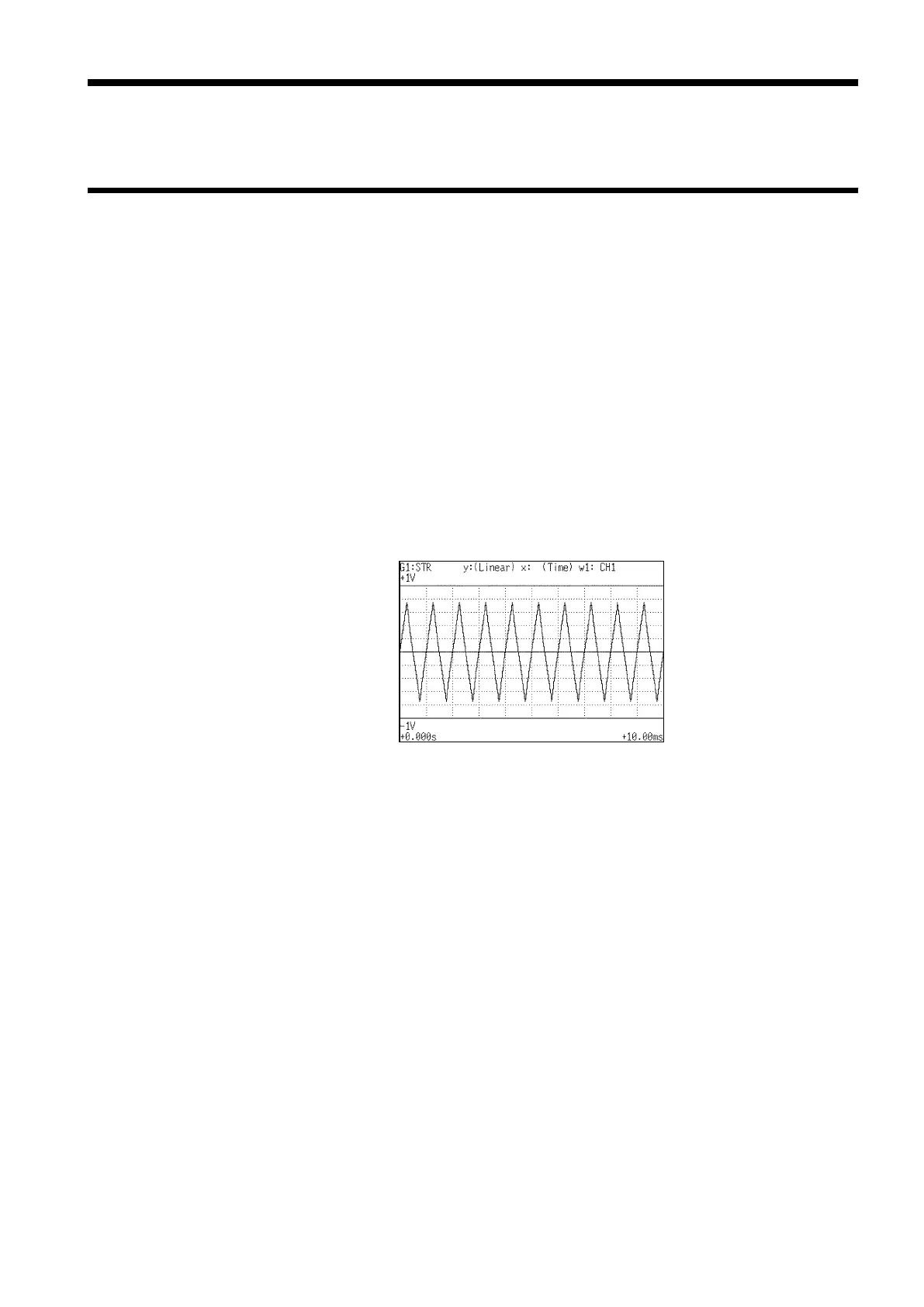

Example Stored waveform
