11.6 View Function (VIEW key)
────────────────────────────────────────────────────
NOTE

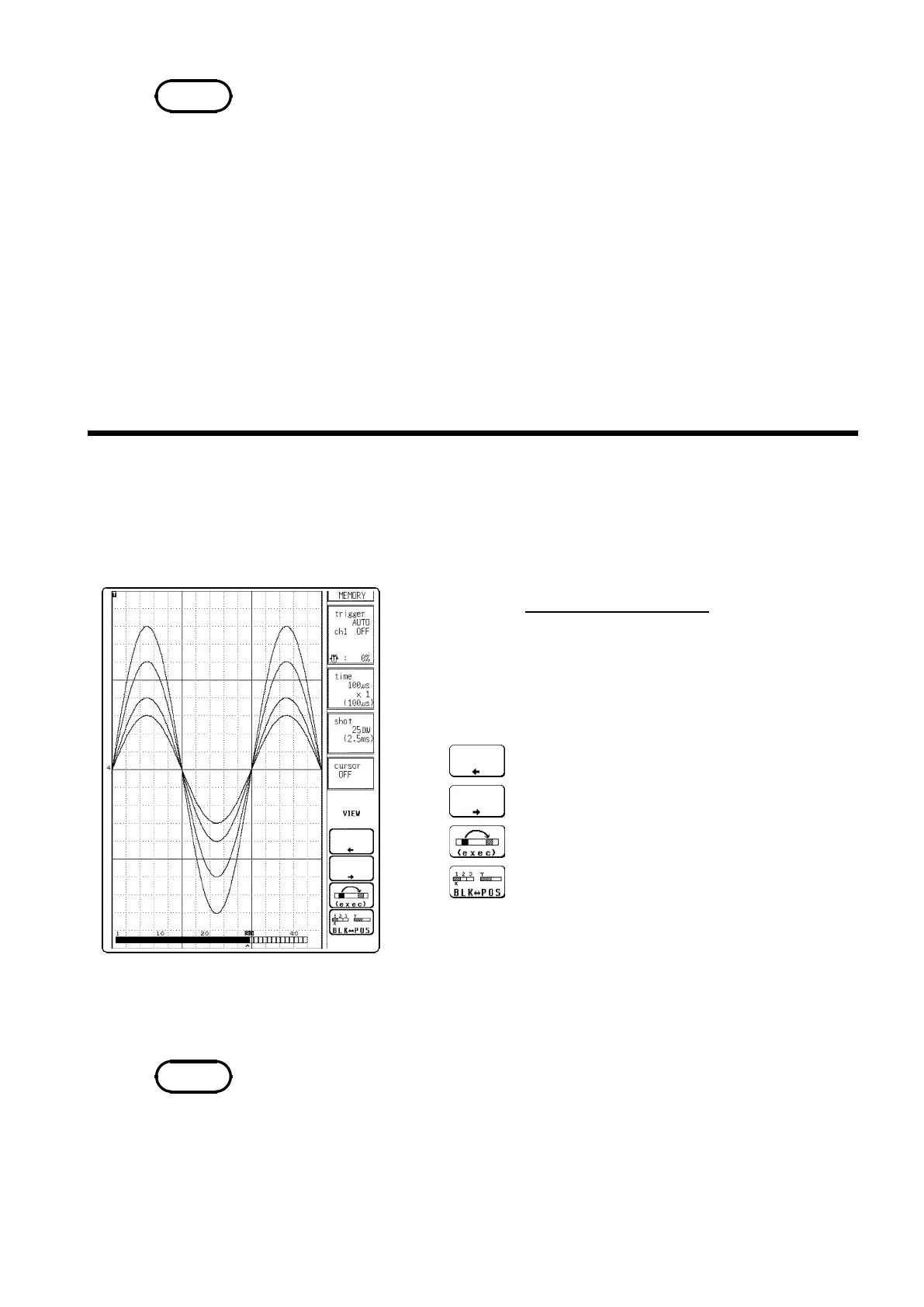

11.6.2 Block Display (MEM only)
s96-2
Function
display Meaning
:
Shifts the destination to the left.
:
Shifts the destination to the right.
:
Executes the dislocation.
:
Toggles block display.
NOTE
･ While the view function is active, the flashing cursor is not displayed and
the settings cannot be changed.
･ Even during measurement, the position of the waveform can be displayed by
pressing the
VIEW key.
･ When the view function is displayed, settings with the CH.SET key are
disabled.
･ When the recording length is set to "
CONT.
" on the recorder or RMS
recorder and at least 2000 divisions (10,000 divisions for 32 M words) are
recorded, the time displayed does not represent the value counted from the
trigger point.
･ When the recording length of recorder waveform in REC&MEM is set to
"
CONT.
" and at least 1000 divisions (5000 divisions for 32 M words) are
recorded, the time displayed does not represent the value counted from the
recording start point.
When memory segmentation is being used, the memory block status is
shown. Sequential save and multi-block function can be used block display.
Any block in which an input signal is recorded can be called up on the
display.
Procedure
Screen: Waveform display
1. Press the VIEW key on the Waveform display screen.
2. The position is displayed.
3. Using the function key to select
block display
.
4. When the number of divisions is 31 or over, change
the bar graph using the up and down cursor keys.
5. Use the function keys to move the "∧" mark and
specify the memory block you wish to display.
6. Using the function key to select
(exec)
.
･ While the view function is active, the flashing cursor is not displayed and
the settings cannot be changed.
･ The memory segmentation function can be used in memory recorder
function.
･ Sequential save of memory blocks is possible only with the Record &
Memory function.
