6.3 ST ATUS Settings (RMS)
────────────────────────────────────────────────────
6.3.7 Setting the Additional Recording Function

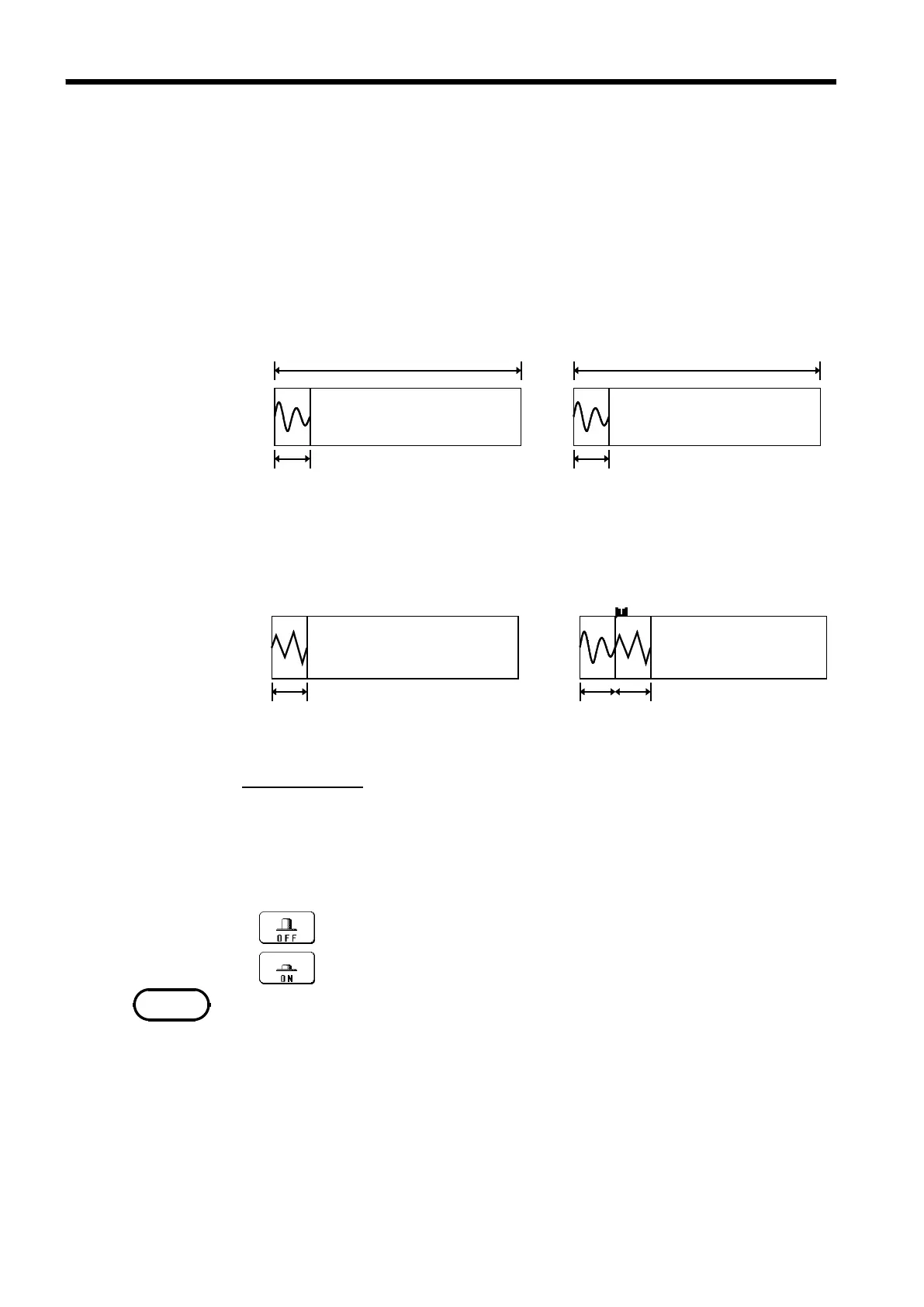

Additional recording: OFF
1. Recording 25 divisions of waveform
Additional recording: ON
1. Recording 25 divisions of waveform
2000 DIV
（
No memor
y
ex
p
ansion
）
25DIV
2000 DIV
（
No memor
y
ex
p
ansion
）
25DIV
2. Recording another 25 divisions of
waveform
The first set of measurement data is
discarded, and recording of the second
set of measurement data starts again
from the beginning of memory.
2. Recording another 25 divisions of
waveform
The first set of measurement data is
preserved, and recording of the second
set of measurement data starts after th
e
first set.
25DIV
The first and second sets of waveforms
can be observed by scrolling or
printing the waveform.
25DIV
25DIV
Function
display Meaning
##F6
:
Normal recording is carried out.
:
The waveform is displayed immediately at the
start of recording.
NOTE
This records, regarding the memory as though it were recording paper.
The memory capacity of 8 M words can accommodate up to 2000 divisions
of waveform data. With 32 M words (after optional memory expansion),
waveform data of up to 10000 divisions can be saved.
The waveform can be scrolled and printed out.
Switching the additional recording on and off affects the use of memory as
shown below.
Procedure
Screen: STATUS
1. Press the STATUS key to display the STATUS screen.
2. Move the flashing cursor to the record add item.
3. Use the function keys to make a setting.
･
Time values output to the printer and displayed on the screen with the
additional recording function enabled are equal to those of the most recently
acquired waveforms. Therefore, when measuring waveforms in a different
time axis range, always take that difference into consideration.
･
When the 2000 (32 M words: 10000) DIV has been reached, old data will be
overwritten.
･
If auto-save is enabled, only newly acquired waveforms are saved. Even
when A and B cursors appear on the screen, no partial save is performed,
because the setting is disabled when the START key is pressed.
