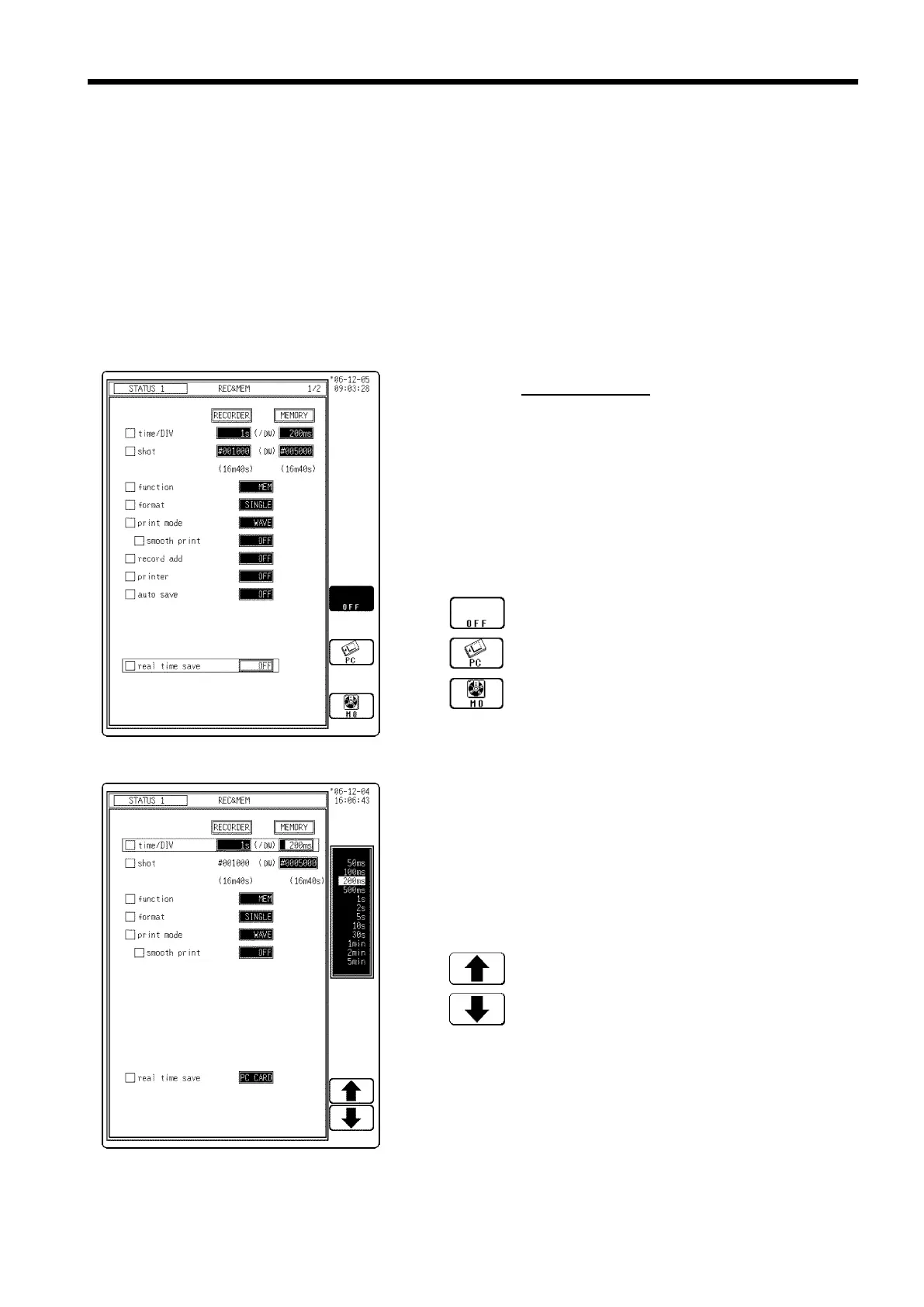

7.3 STATUS Settings (REC&MEM)
────────────────────────────────────────────────────
7.3.10 Setting the Real-Time Save
s7311
Function
display
Meaning
g-ent,LOG1, 2
:
Real time save is disabled.
:
Real time save data is stored on the PC card.
:
Real time save data is stored on the Internal
MO drive.
s7311
Function
display Meaning
g-ent,LOG1, 2
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
Data can be saved to memory in real time, and afterwards compressed and
stored on disk. Real-time save data is stored in binary format on the PC card
or the internal MO drive.
Trigger settings are not applicable to the memory waveform, and the start of
Memory waveform recording coincides with the start of the Recorder
waveform.
The time axis of the Real-Time Save waveform may be 50 ms to 5 min/DIV
for channels 1 to 8, and 100 ms to 5 min/DIV for channels 9 and above.
Procedure
Screen: STATUS1
1. Press the STATUS key to call up the STATUS1 screen.
2. Move the flashing cursor to the real time save
item,
and ues the function keys to make the selection.
When Real-Time Save is selected, the time axis must
be set to the valid range.
3. Move the flashing cursor to "Memory Time Axis",
and select using the displayed function keys or jog
control.
4. Select the "Recording Time Axis" at the same time.
To Next Page
