Hioki 8841 - Identification of Controls and Indicators

3
────────────────────────────────────────────────────
1.2 Identification of Controls and Indicators
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
4 5
7
1 2
13
14
19
20
3 6
8
9
10
11
12
15
16
17
18
21
22
23
24
25
26 27 28

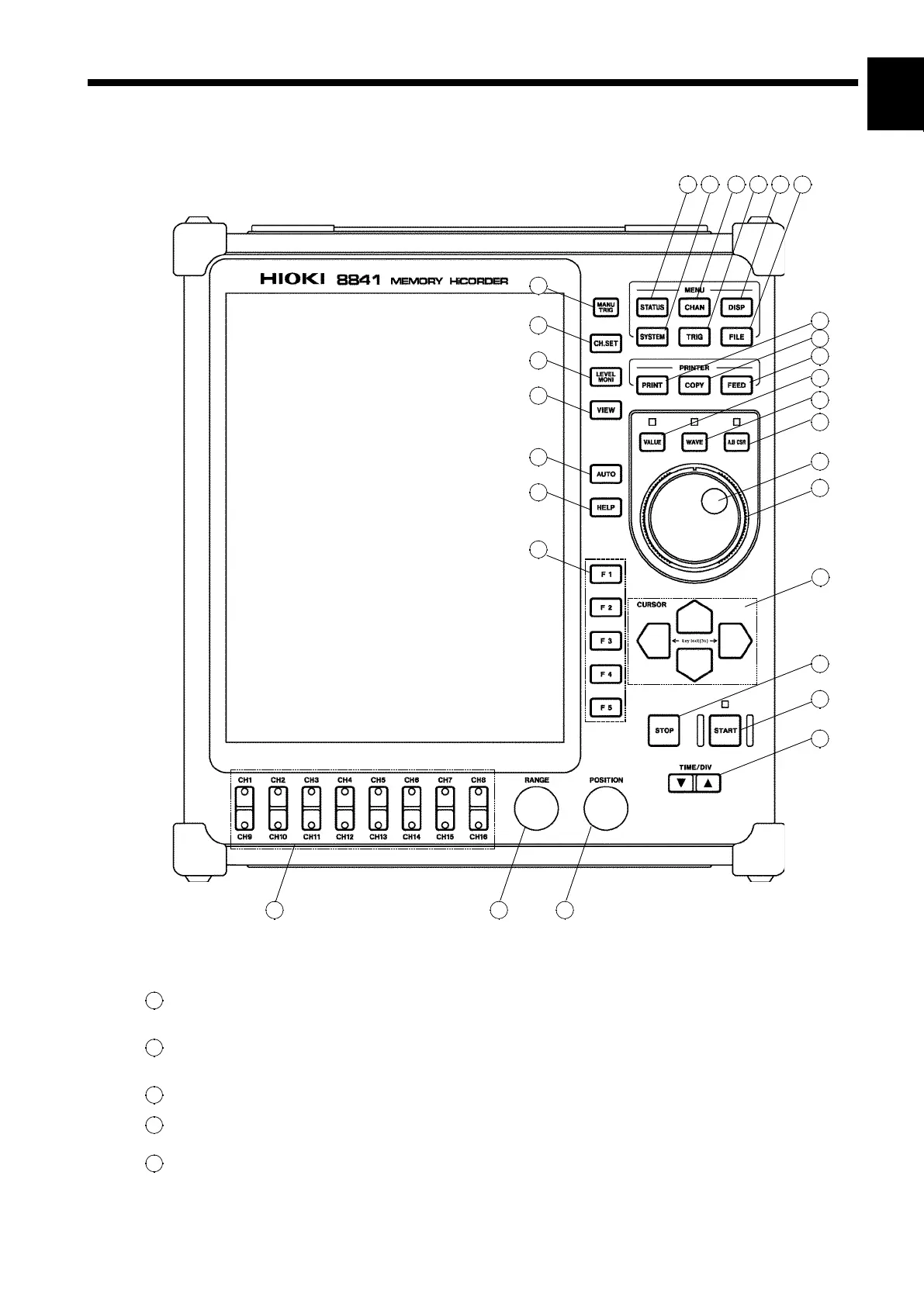

Front Panel
(example: 8841)
1
STATUS key
Causes the display to show the STATUS screen which serves for setting
most measurement parameters.
2
CHAN key
Causes the display to show the CHANNEL or Variable screen which serves
for making input channel settings.
3
DISP key
Causes the display to show measurement and analysis results.
4
SYSTEM key
Causes the display to show the SYSTEM screen which serves for making
system-wide settings such as for the scaling function.
5
TRIG key
Causes the display to show the TRIGGER screen. Setting the trigger
functions.
1.2 Identification of Controls and Indicators
