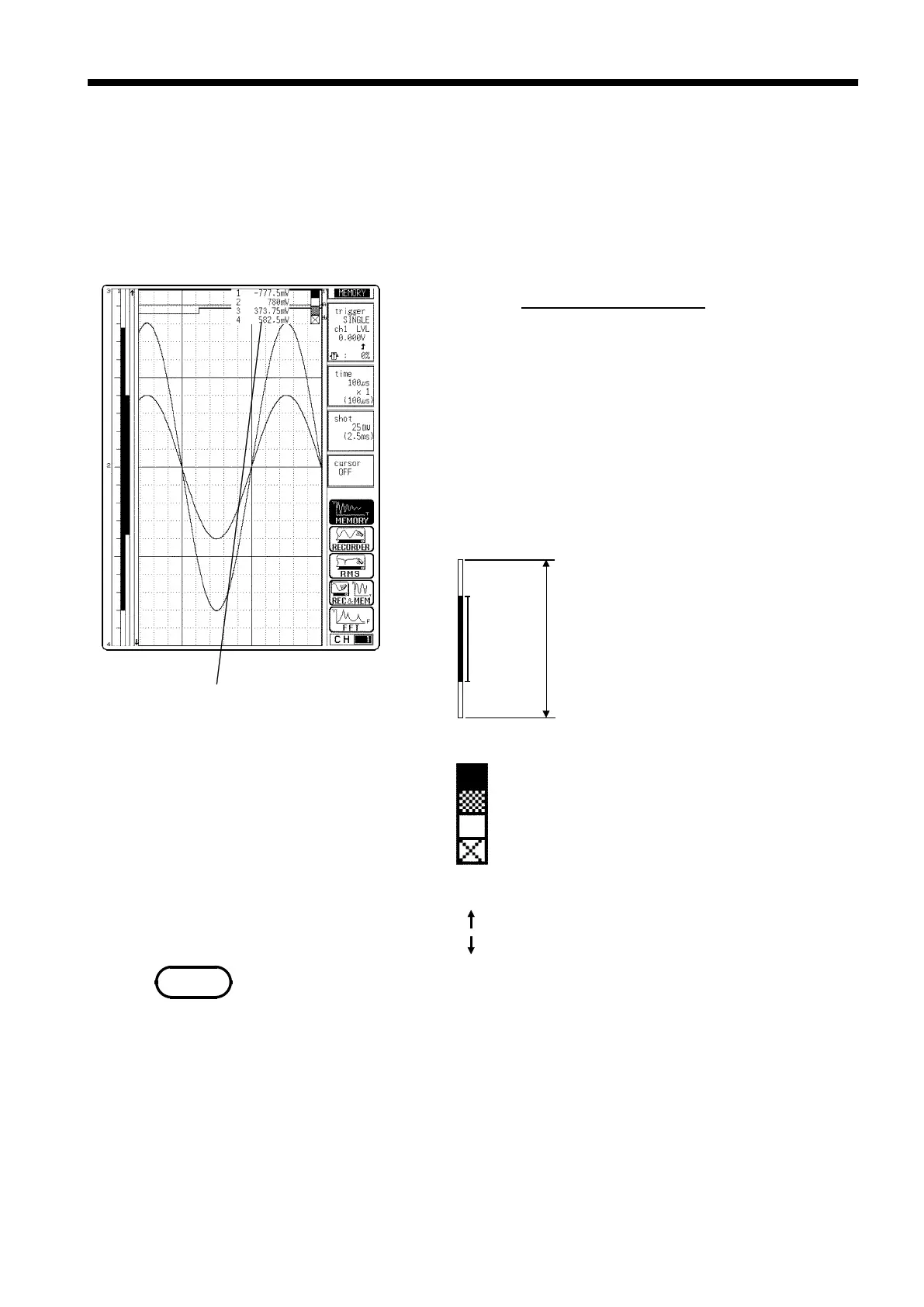

11.5 Input Level Monitor Function
────────────────────────────────────────────────────
s95
An instantaneous value for the analog
channel is displayed. In RMS recorder
function, however, the RMS value is not
displayed.
Display of current measurements is
hidden when displaying the CH.SET
screen, and reappears when exiting the
CH.SET screen.
Input
level
Full s
p
an
: The input is stabilized at the HI level.
: The input varies drastically between the HI
and LOW levels.
: The input is stabilized at the LOW level.
: The dis
p
la
y
is disabled.
Lo
g
ic channels
When the input level is not displayed on the
screen dis
p
la
y
ran
g
e
The input level exceeds the upper limit.
The in
p
ut level exceeds the lower limit.
A
nalo
g
channels
NOTE
11.5 Input Level Monitor Function
・The levels of all input waveforms can be monitored in real time.
・Levels are displayed separately for CH1 - CH16 and logical CHA - CHD.
・To select the input channel, use the CH.SET key. See Section 9.10.
・The level monitor function can not be used in RMS record function during
measurement.
Procedure
Screen: Waveform display
1. Press the LEVEL MONI key.
2. The CH.SET key can be used to select the input
channel while using the input level monitor function.
3. Press the LEVEL MONI key once more to terminate the
function.
The screen displays depend on settings of display
format on the STATUS screen in each function.
When the X-Y screen has been set, only those
channels assigned to graphs 1 to 4 are displayed.
For the following channels, analog input level is not displayed:
・Channels where no unit is installed.
・A channel that deviates from the set active channel range（example:
channel 5 or subsequent channels when the number of set active channels
is four).
