Hioki 8841 - 9018-10;9132-10 Clamp on Probe

21
────────────────────────────────────────────────────

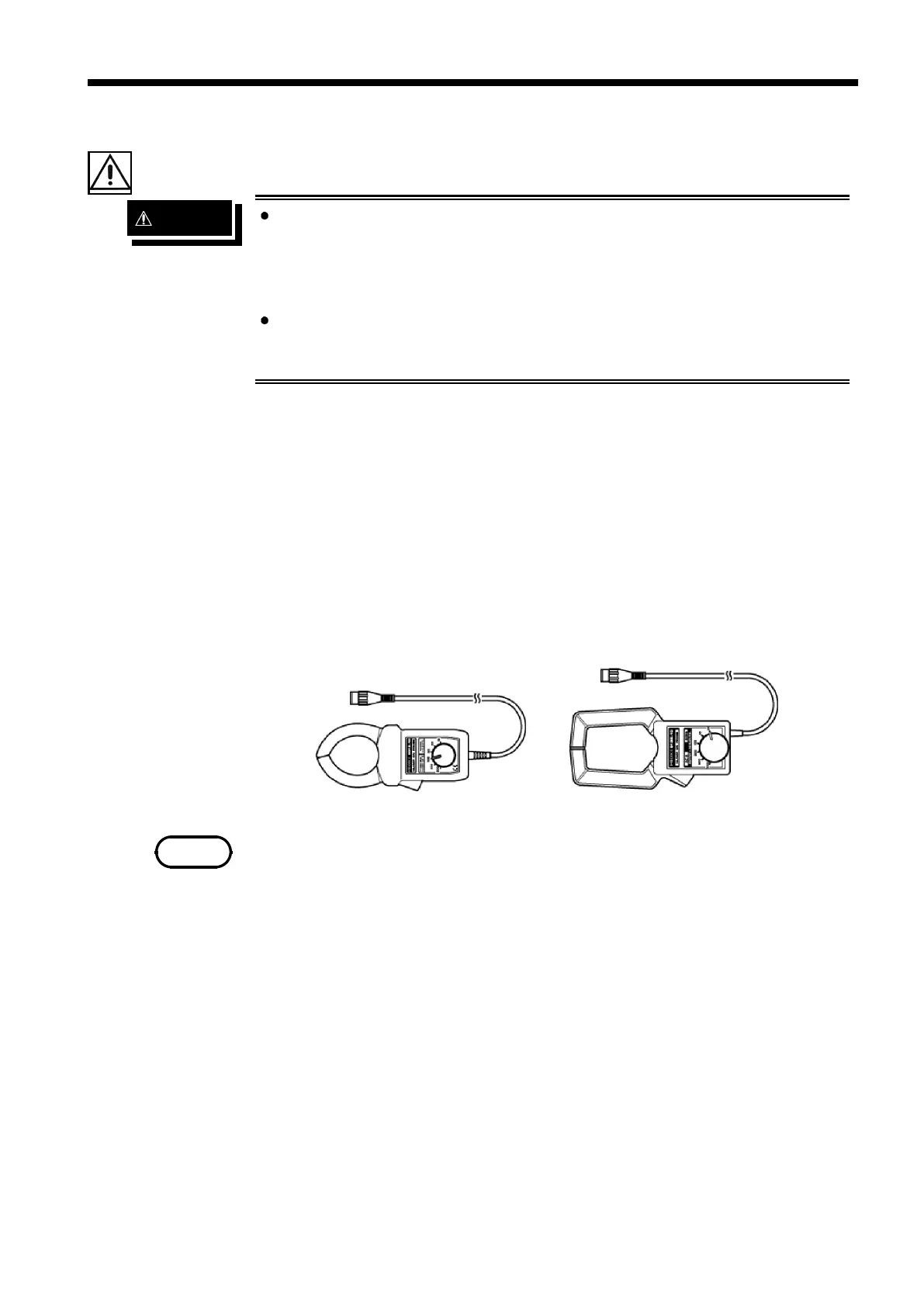

2.6 9018-10/9132-10 CLAMP ON PROBE
────────────────────────────────────────────────────
DANGER
Clamp-on probe should only be connected to the secondary side of
a breaker, so the breaker can prevent an accident if a short circuit
occurs. Connections should never be made to the primary side of a
breaker, because unrestricted current flow could cause a serious
accident if a short circuit occurs.
Before using the 9018-10/9132-10 CLAMP ON PROBE, be sure to
carefully read its instruction manual and familiarize yourself with the
operation principles of this product.
9132-10
9018-10
NOTE
2.6 9018-10/9132-10 CLAMP ON PROBE
The
HIOKI
9018-10/9132-10 CLAMP ON PROBE can be used to perform
current measurement. This probe has a voltage output. The 8841/42 is
designed for voltage input. It cannot be used to perform current
measurements by itself.
Connections
Connect the BNC connector of the 9018-10/9132-10 CLAMP ON PROBE to
the analog input of the 8841/42. Refer to "2.4 Connection of the Input
Unit."
･ The 8841/42 will indicate measurement results as voltage.
･ Using the scaling function, units can be converted to "A" for display.
･ When the clamp-on probe is used for measurement, the measurement
precision will be affected both by the 8841/42 precision and clamp-on probe
precision ratings. The same is true for cases where other clamps are used.
･ When using the 9018/9132 CLAMP ON PROBE, always use the 9199
CONVERSION ADAPTOR.
