6.3 ST ATUS Settings (RMS)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A

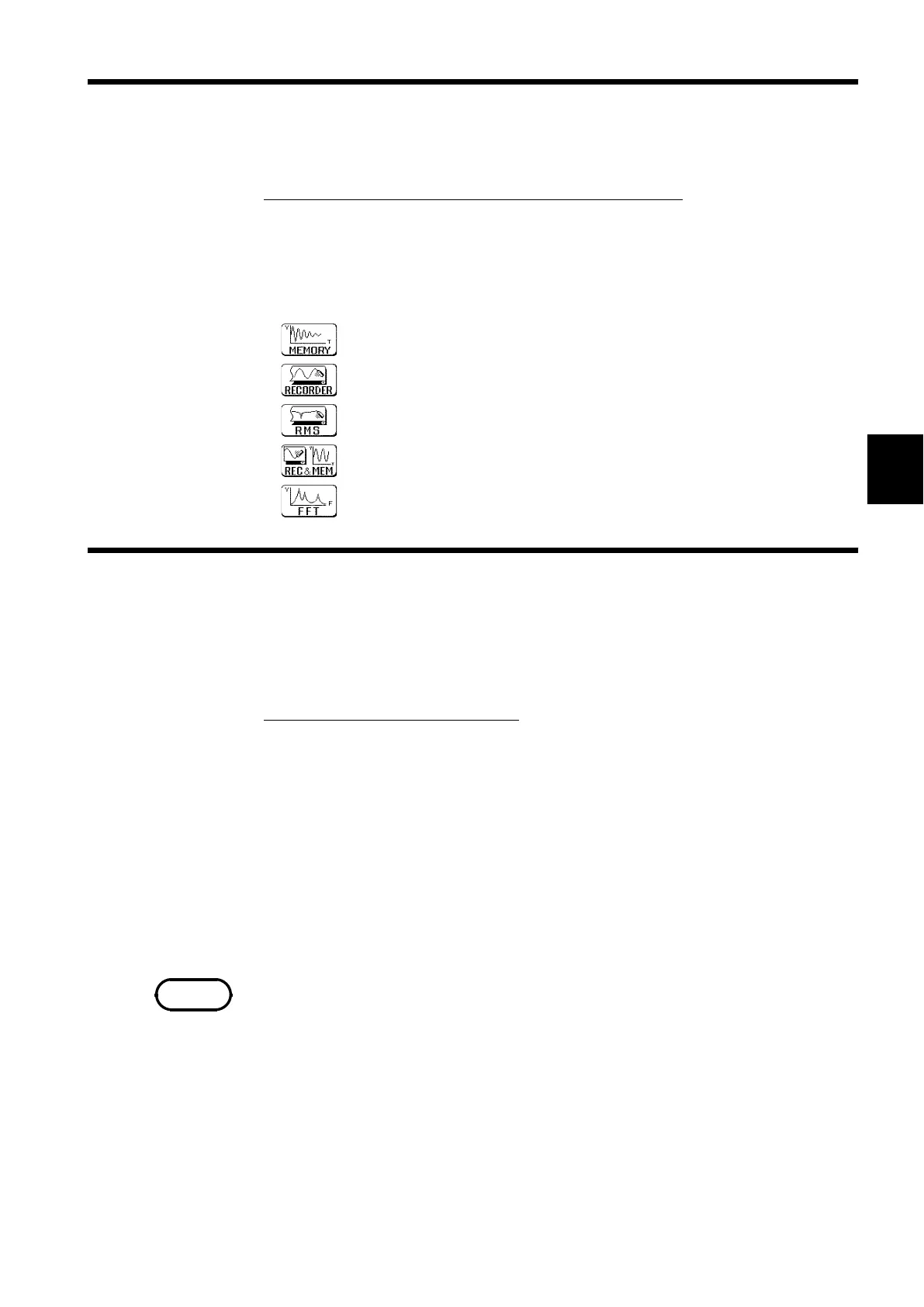

6.3.1 Setting the Function Mode
Function
display Meaning
:
Memory recorder function
:
Recorder function
:
RMS recorder function
:
Recorder & Memory recorder function
:
FFT function
6.3.2 Setting the Time Axis Range
NOTE
The 8841/42 has five function modes Select the RMS recorder function.
Procedure
Screen: STATUS, CHANNEL, Waveform display, TRIGGER
1. Use the Menu keys to display the desired screen.
2. Move the flashing cursor to the top position.
3. Select the RMS function key display.
Set the speed for inputting and storing the waveform of the input signal.
Time axis range setting expresses the time for 1 division. The sampling
interval is constant (200
μ
s), regardless of the time axis range.
Screen: STATUS, Waveform display
Procedure 1 1. Use the Menu keys to display the desired screen.
2. Move the flashing cursor to the time/DIV
item.
3. Use the Jog/Shuttle control , the function keys or the
TIME/DIV key to make
the selection.
Procedure 2
Using the TIME/DIV key
1. Use the Menu keys to display the desired screen.
2. Use the TIME/DIV
key to make the selection.
The
TIME/DIV key can be used regardless of where the flashing cursor is
located.
For details on sampling period, see Appendix 3.5.
The symbol "*" in the selection window indicates the time axis of the data
stored to current memory. (If no data is present in memory, this symbol is
not displayed.)
