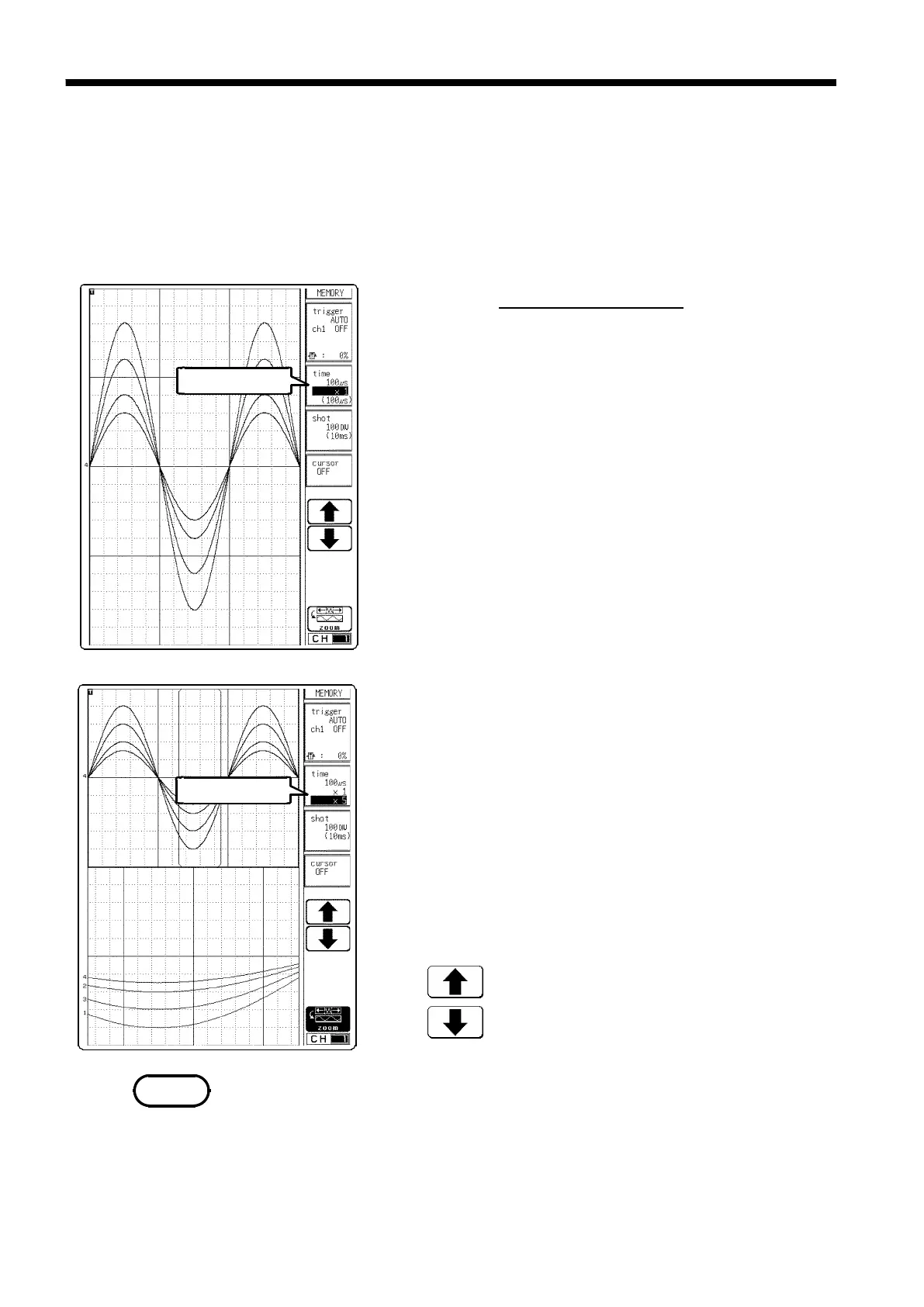

11.4 Zoom Function (MEM only)
────────────────────────────────────────────────────
s94-1,2
Flashing cursor
Flashing cursor
Function
display Meaning
:
Increases in number.
:
Decreases in number.
NOTE
11.4 Zoom Function (MEM only)
This function divides the memory recorder function display screen into upper
and lower windows, so that the regular-size waveform is displayed in the
upper window and the waveform enlarged in the time axis direction is
displayed in the lower window.
Procedure
Screen: Waveform display
1. Press the DISP key to display the Waveform display
screen.
2. Move the flashing cursor to the position shown in the
figure on the left.
3. Use the function keys to select the
zoom
item.
When the zoom function is selected, the display is
split into two horizontally tiled screens. The
waveform before the zoom mode was activated is
displayed on the upper screen. The lower screen
shows the zoomed waveform.
When the logic waveform is set so as to be displayed
in a position from 5 to 8, it is not displayed.
4. Move the flashing cursor to the position shown in the
figure on the left.
5. Use the function keys or the Jog/Shuttle control to set
the magnification ratio.
The brackets [ ] on the upper screen indicate the
waveform range displayed on the lower screen.
The position of bracket can be move by using the
Jog/Shuttle control with the WAVE
select key.
The A･B cursors are applicable to the waveform on
the lower screen.
6. To exit the zoom function, press zoom
.
･ During the zoom function, pressing the PRINT key prints the waveform on
the lower screen. (The waveform becomes that of the one screen display. If
the A･B cursors are used, partial print is applied.)
･ To zoom a stored REC&MEM waveform, switch to the Memory recorder
function.
