15.1 Using the Sequential Save Function
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Function
display
Meaning
##F3
:
Disable ref block
:
Enable ref block
:
Turns off all ref block settings.
:
Sets all blocks as ref blocks.
NOTE

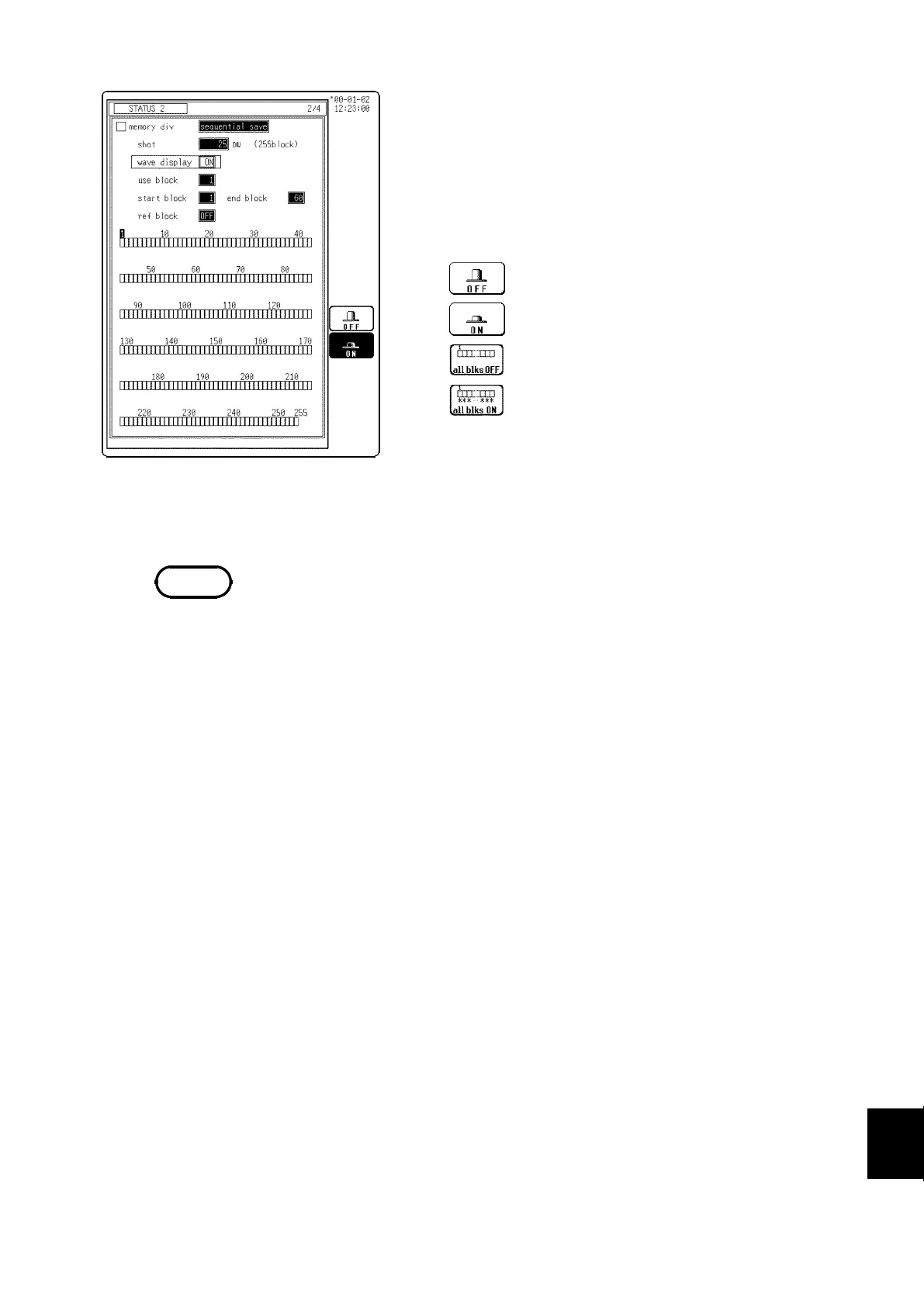

(6) Setting ref blocks
Waveform data recorded in multiple blocks can be
displayed in a composite display.
1. Move the flashing cursor to the
ref block
item.
2. Use the function keys to make the selection.
3. Move the flashing cursor to the numerical value item
(ref block). Ref block settings can be made one block
at a time. Blocks set as ref blocks are marked with
an asterisks.
･ The colored blocks indicate that measured data has been saved to the blocks.
･ The displayed block settings and block status are shown on the display
screen. (See Section 11.6.)
