15.1 Using the Sequential Save Function
────────────────────────────────────────────────────
s131- 2,3
Function
display Meaning
##
:
After all blocks are recorded, the waveform of
the last block only is displayed.
:
Each block is recorded and displayed.
Function
display Meaning
##F3
:
Increases in number.
:
Decreases in number.
Function
display
Meaning
##F3
:
Increases in number.
:
Decreases in number.

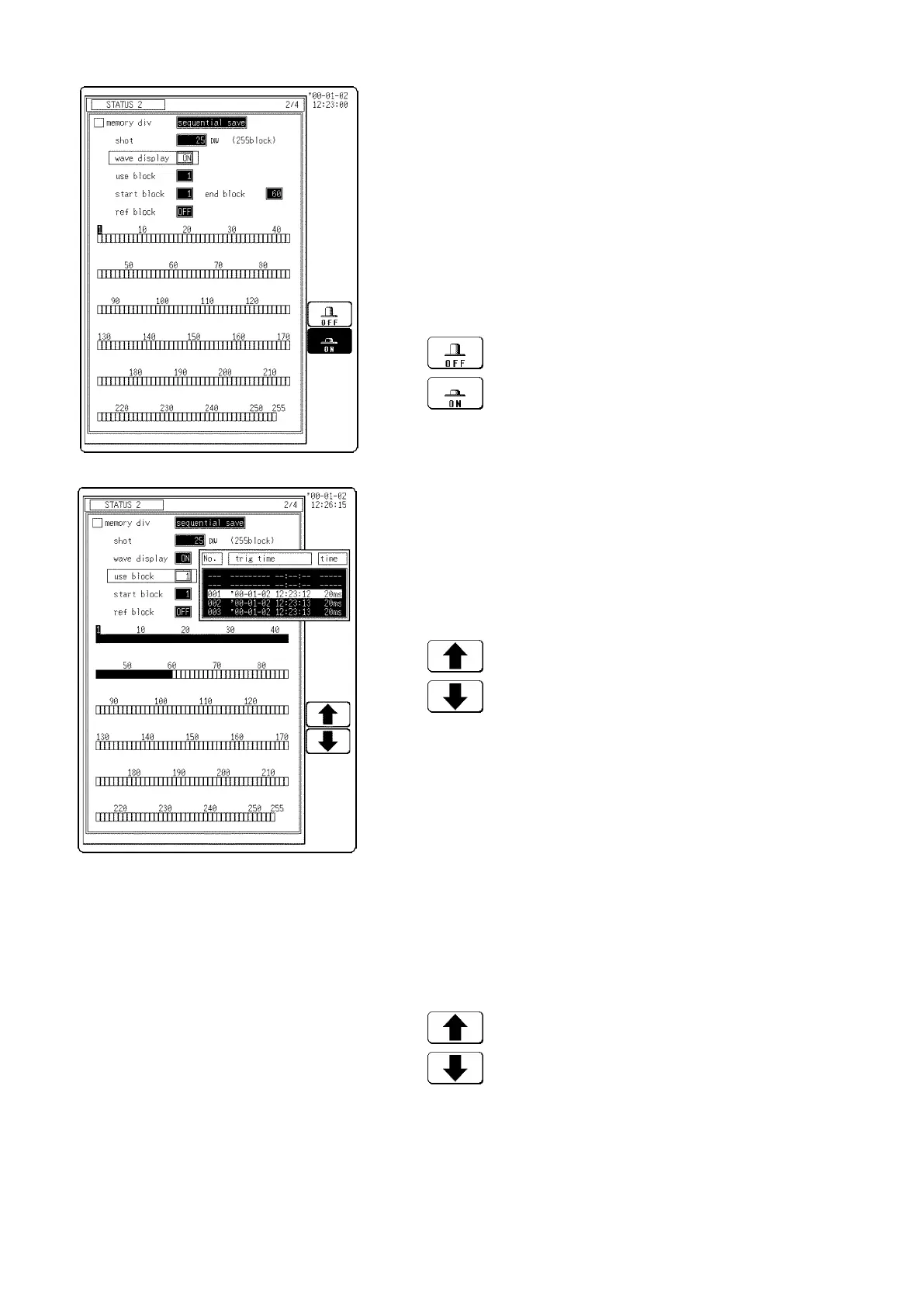

(3) Set the follow-up waveform display (MEM only).
Waveforms acquired for each block by triggering during
the sequential saving process are displayed one by one.
As a result, the dead time is increased.
1. Move the flashing cursor to the wave display item, as
shown in the figure on the left.
2. Use the Jog/Shuttle control or the function keys to
make the selection.
(4) Display block setting
Set the block to be displayed. The recording start time
and time axis range are displayed on the window.
1. Move the flashing cursor to the
use block
item, as
shown in the figure on the left.
2. Use the Jog/Shuttle control or the function keys to
make the selection.
After measurement starts, the displayed block is updated
by the recorded block.
When measurement is completed, the most recently
recorded block is displayed.
(5) Start/end block setting
1. Move the flashing cursor to the
start block
or
end
block
item.
2. Use the Jog/Shuttle control or the function keys to
make the selection.
