345
────────────────────────────────────────────────────

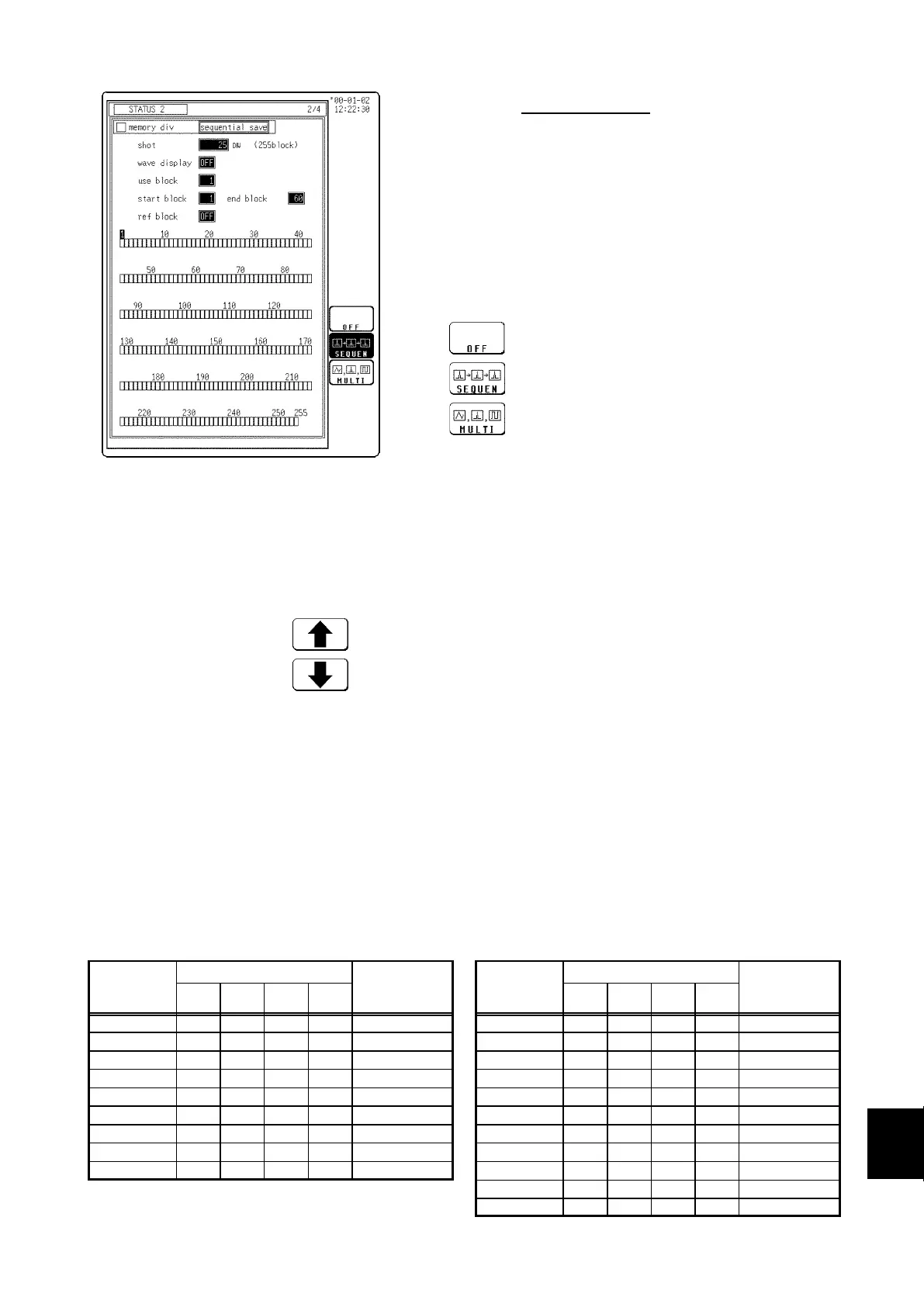

15.1 Using the Sequential Save Function
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
s131-1
Function
display
Meaning
#g-sq1, sq2
:
Disable memory segmentation
:
Enable sequential save function.
:
Enable multi-block function.
Function
display
Meaning
##F2
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
8Mwords
Recording
length (DIV)
Number of channels Memory
waveform in
REC&MEM
16 8 4 2
25 127 255 255 255 63
50 63 127 255 255 31
100 31 63 127 255 15
200 15 31 63 127 7
500 7 15 31 63 3
1000 3 7 15 31 −
2000 − 3 7 15 −
5000 − − 3 7 −
10000 − − − 3 −
32 M words
Recording
length (DIV)
Number of channel Memory
waveform in
REC&MEM
16 8 4 2
25 255 255 255 255 255
50 255 255 255 255 127
100 127 255 255 255 63
200 63 127 255 255 31
500 31 63 127 255 15
1000 15 31 63 127 7
2000 7 15 31 63 3
5000 3 7 15 31 −
10000 − 3 7 15 −
20000 − − 3 7 −
40000 − − − 3 −
Procedure
Screen: STATUS2
(1) Select the Memory Segmentation
1. Press the STATUS key to display the STATUS2
screen.
2. Move the flashing cursor to the position shown in the
figure.
3. Select the
SEQUEN
function key.
(2) Set the Recording Length.
1. Move the flashing cursor to the shot item.
2. Use the Jog/Shuttle control or the function keys to make the selection.
When the recording length is set to the arbitrary recording-length mode,
recording-length setting cannot be performed on the memory segmentation
screen, and the symbol "#" is displayed before the recording length.
When the recording length is changed to one for which memory
segmentation is not permitted on the STATUS1 or the Waveform display
screen, sequential saving is automatically set to OFF.
Maximum number of divisions
The recording length and maximum number of divisions are automatically
determined according to the set memory capacity and number of available
channels, as shown in the tables below. (See Section 12.2.1)
