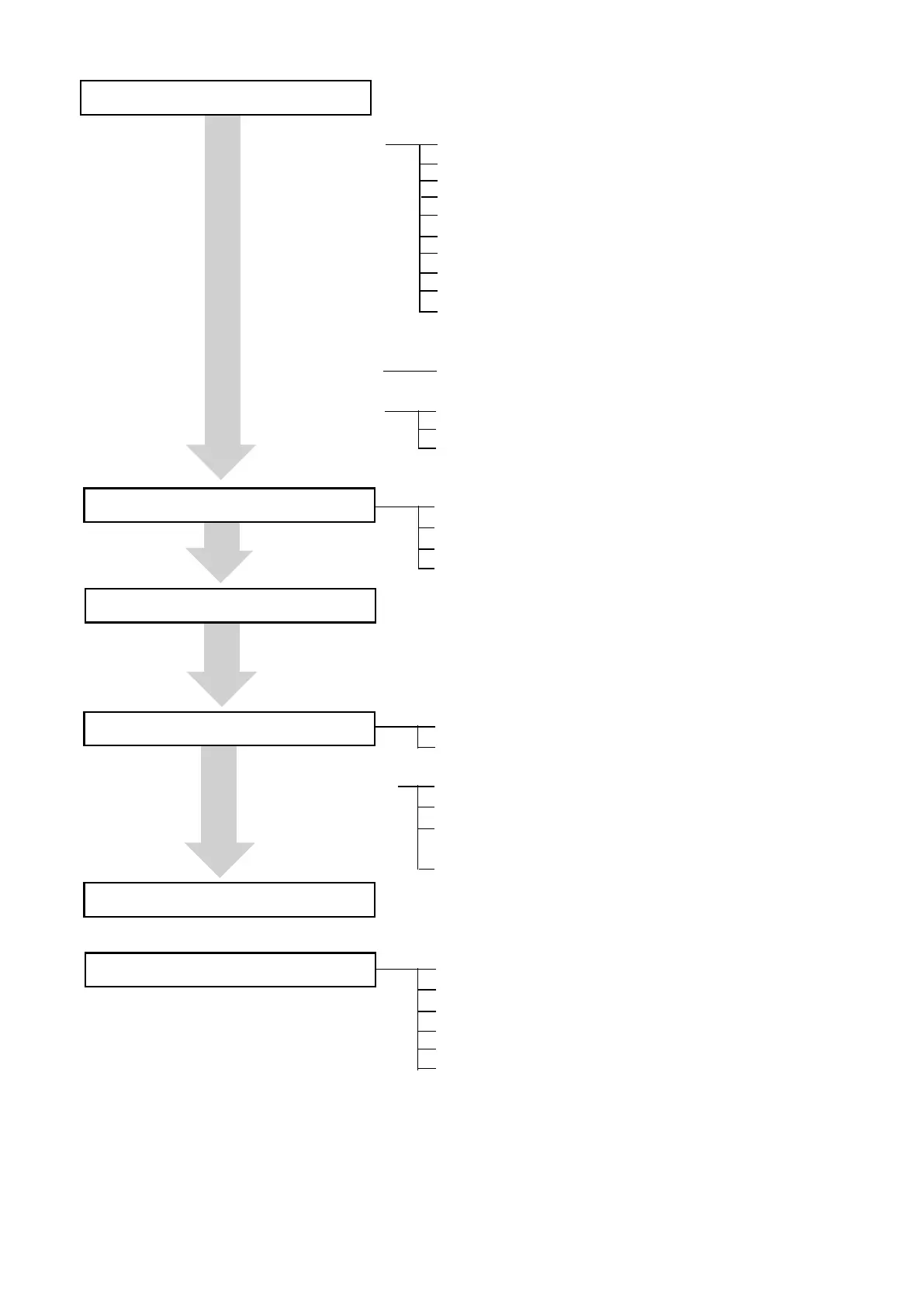

4.2 Operation Sequence (MEM)
────────────────────────────────────────────────────
Settings on the channel screen
Setting the input channel
Setting the trigger function
Stop measurement
Setting the system
・ Press the
START
key and the LED lights.
・ When the trigger conditions are met, measurement start.
・ Press the
STOP
key and the LED goes out after measurement has finished.
Variable function (See Chapter 9.7)
Waveform display color
Waveform display graph
Voltage axis range
Input coupling
Logic input
Magnification/compression along voltage
Zero position
Zero adjustment
Offset cancel
Low-pass filter
Settings on the variable screen
Settings the advanced function
Scalingfunction(SeeChapter9.8)
Comment function (See Chapter 9.9)
Vernier function (See Chapter 9.10.2)
Trigger mode
Trigger source
Pre-trigger
Trigger selection
Processing measurement data
Printing the measurement data (See Chapter 13)
Saving the measurement data (See Chapter 14)
Measurements on display screen
Waveform scrolling (See Section 11.1)
Using the A･B cursor (See Section 11.2)
Magnification/compression ratio along time axis
(See Section 11.3)
Zoom function (See Section 11.4)
Set up (See Section 12.2)
Scaling (See Section 12.3)
Comment (See Section 12.4)
Interface (See Section 12.5)
Initialize (See Section 12.6)
Self-check (See Section 12.7)
Press the
SYSTEM
key to display the
SYSTEM screen. (See Chapter 12)
Start measurement
(See Chapter 9)
(See Chapter 10)
