90
────────────────────────────────────────────────────
6.3 ST ATUS Settings (RMS)
────────────────────────────────────────────────────

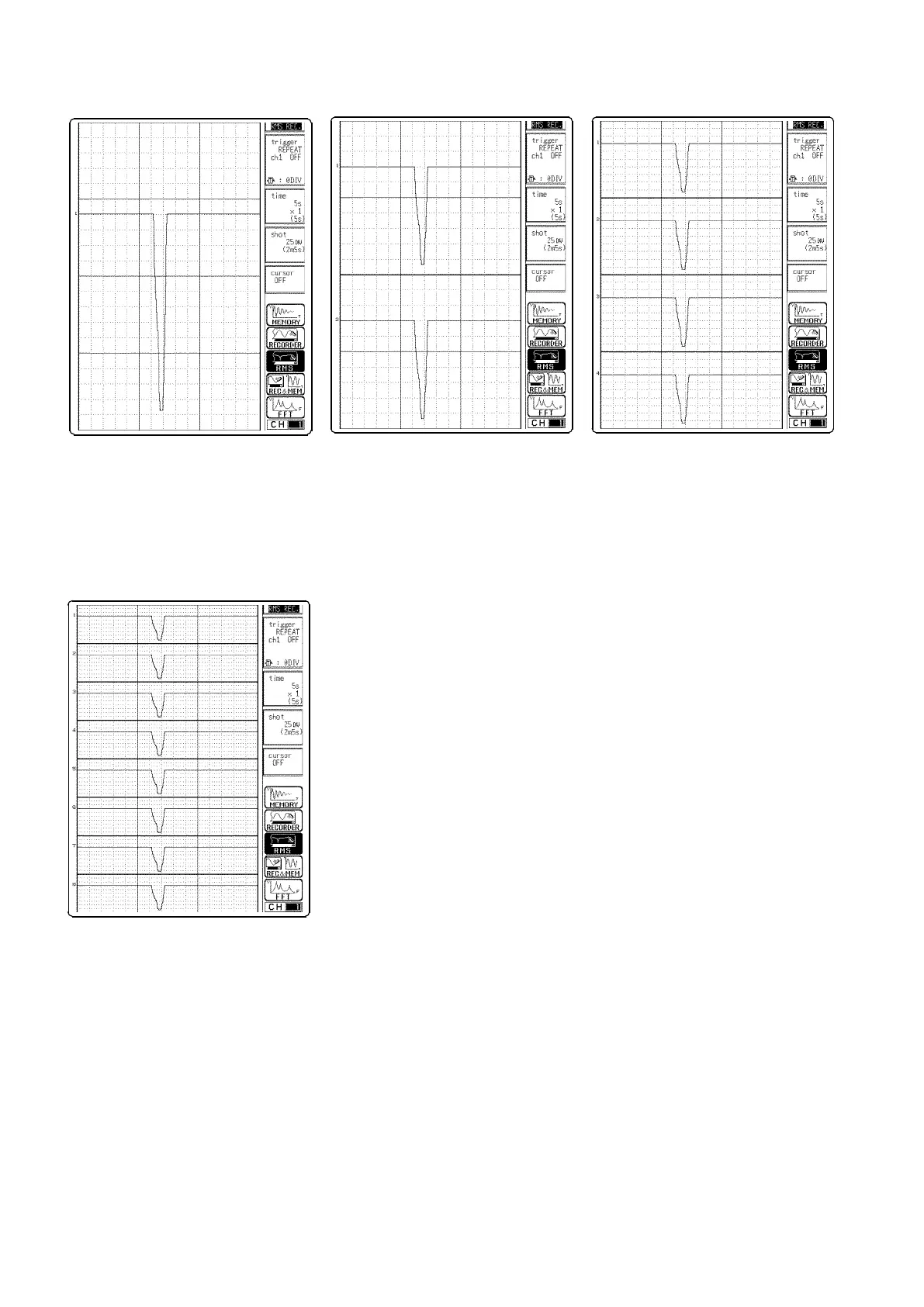

Single graph
Display and record as one graph.
(At the most, 16 analog + 16
logic signals)
Dual graph
Quad graph
Oct graph
HEX graph
･
Display and record as two
graphs. (At the most, 16 analog
+16logicsignals)
･
Specify which input channel to
use for waveform graph display
and recording.
･
Display and record as four
graphs. (At the most, 16 analog
+ 8 logic signals)
･
Specify which input channel to
use for waveform graph display
and recording.
･
Record as eight graphs. (At the
most, 16 analog + 4 logic
signals)
･
Specify which input channel to
use for waveform graph display
and recording.
･
Display is same as Oct screen display.
･
Record as sixteen graphs. (At the most, 1 analog + 2 logic signals)
･
Channel positions are automatically distributed.
s635-2, 3, 4,
5
