8.7 FFT Analysis Function
────────────────────────────────────────────────────

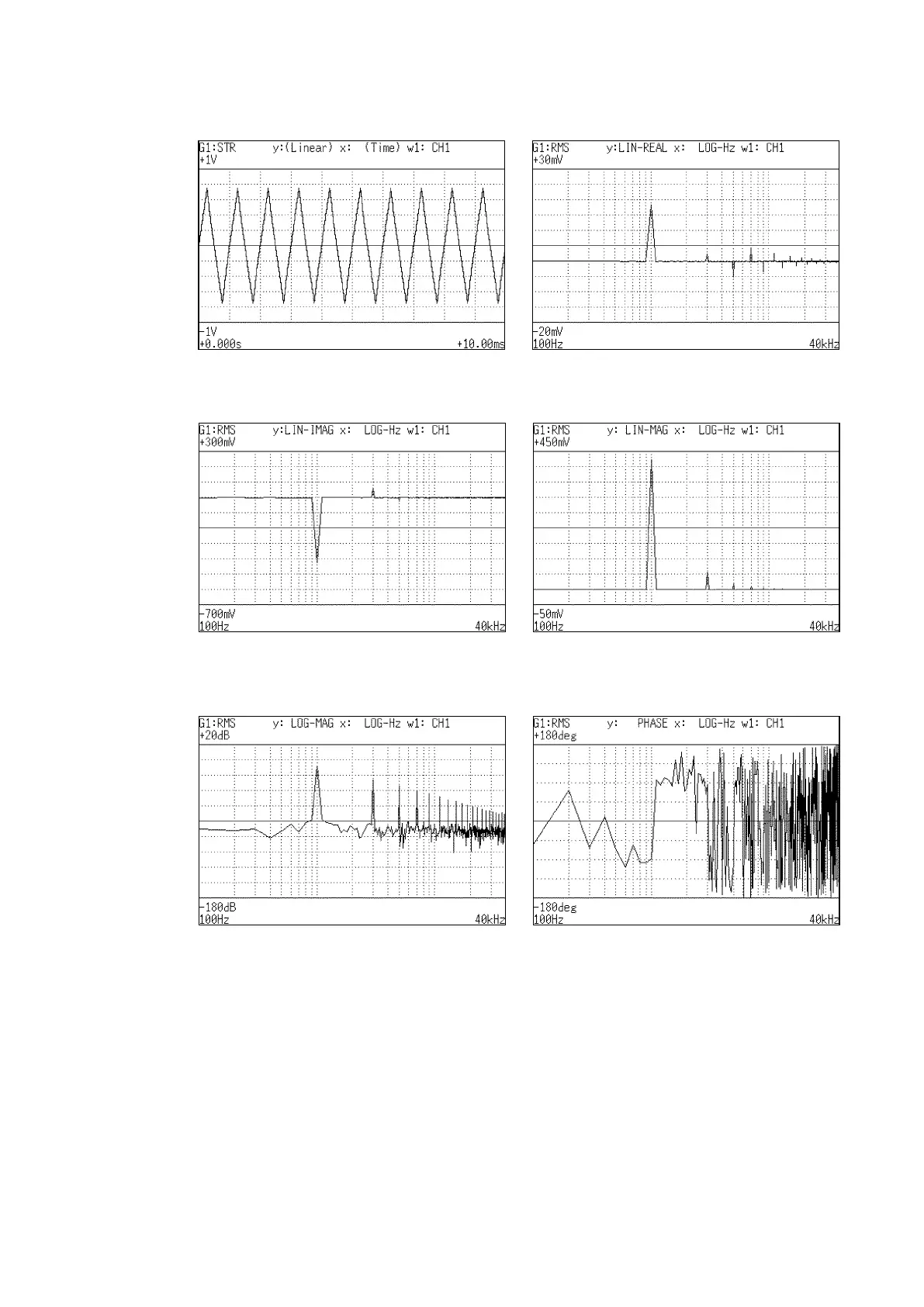

Stored waveform
Y-axis: LIN-REAL (X-axis: LOG-Hz)
Y
-axis: LIN-IMAG (X-axis: LOG-Hz)
Y
-axis: LIN-MAG (X-axis: LOG-Hz)
Y
-axis: LOG-MAG (X-axis: LOG-Hz)
Y
-axis: PHASE (X-axis: LOG-Hz)
Examples RMS spectra waveform
08-23, 30, 31, 32, 33, 34
