8.7 FFT Analysis Function
────────────────────────────────────────────────────
Stored waveform 1 Stored waveform 2
Y
-axis: LIN-REAL (X-axis: LOG-Hz)
Y
-axis: LIN-IMAG (X-axis: LOG-Hz)
Y
-axis: LIN-MAG (X-axis: LOG-Hz)
Y
-axis: LOG-MAG (X-axis: LOG-Hz)
Y-axis: PHASE (X-axis: LOG-Hz)
Nyquist

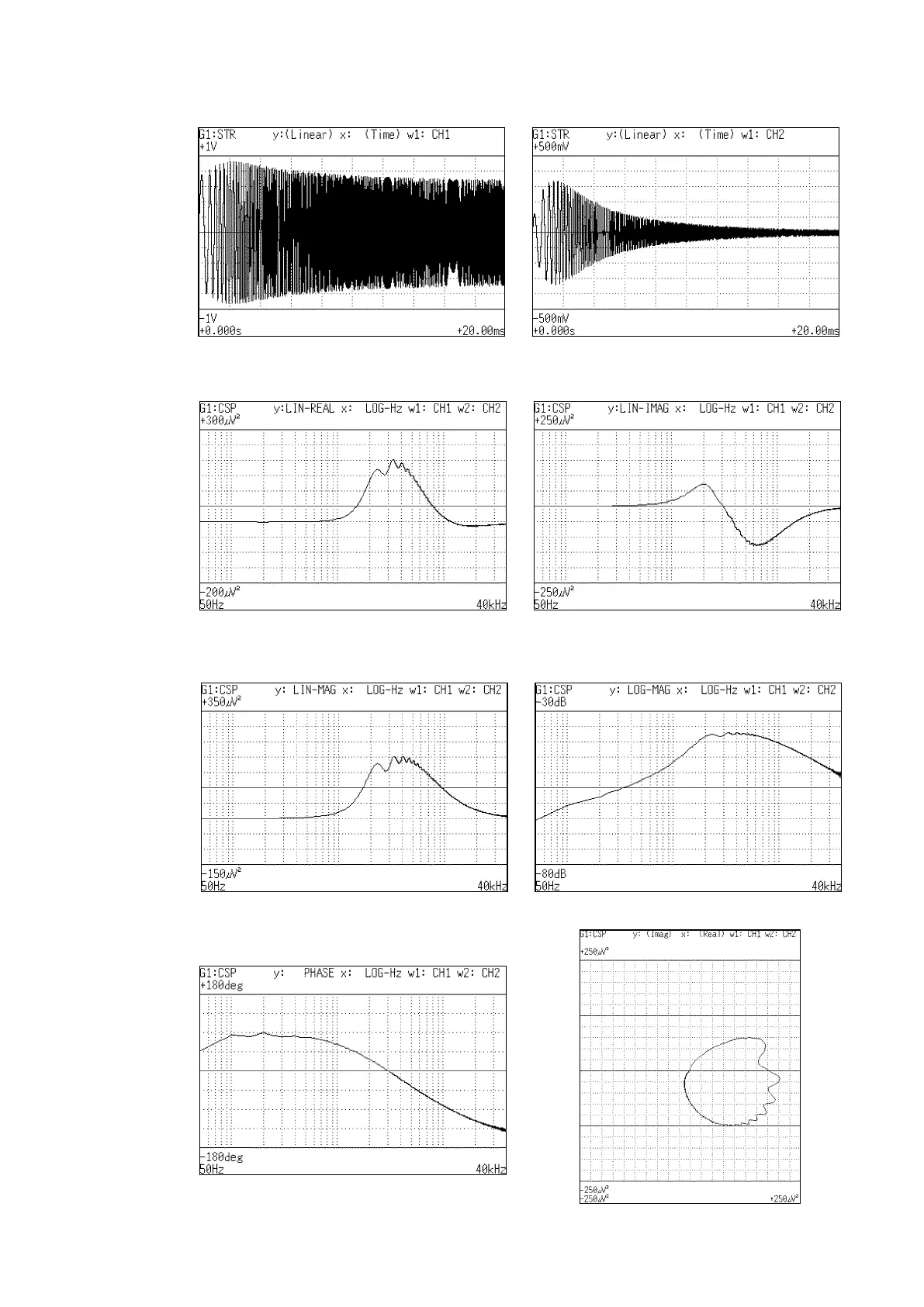

Example Cross power spectra waveforms
