181
────────────────────────────────────────────────────

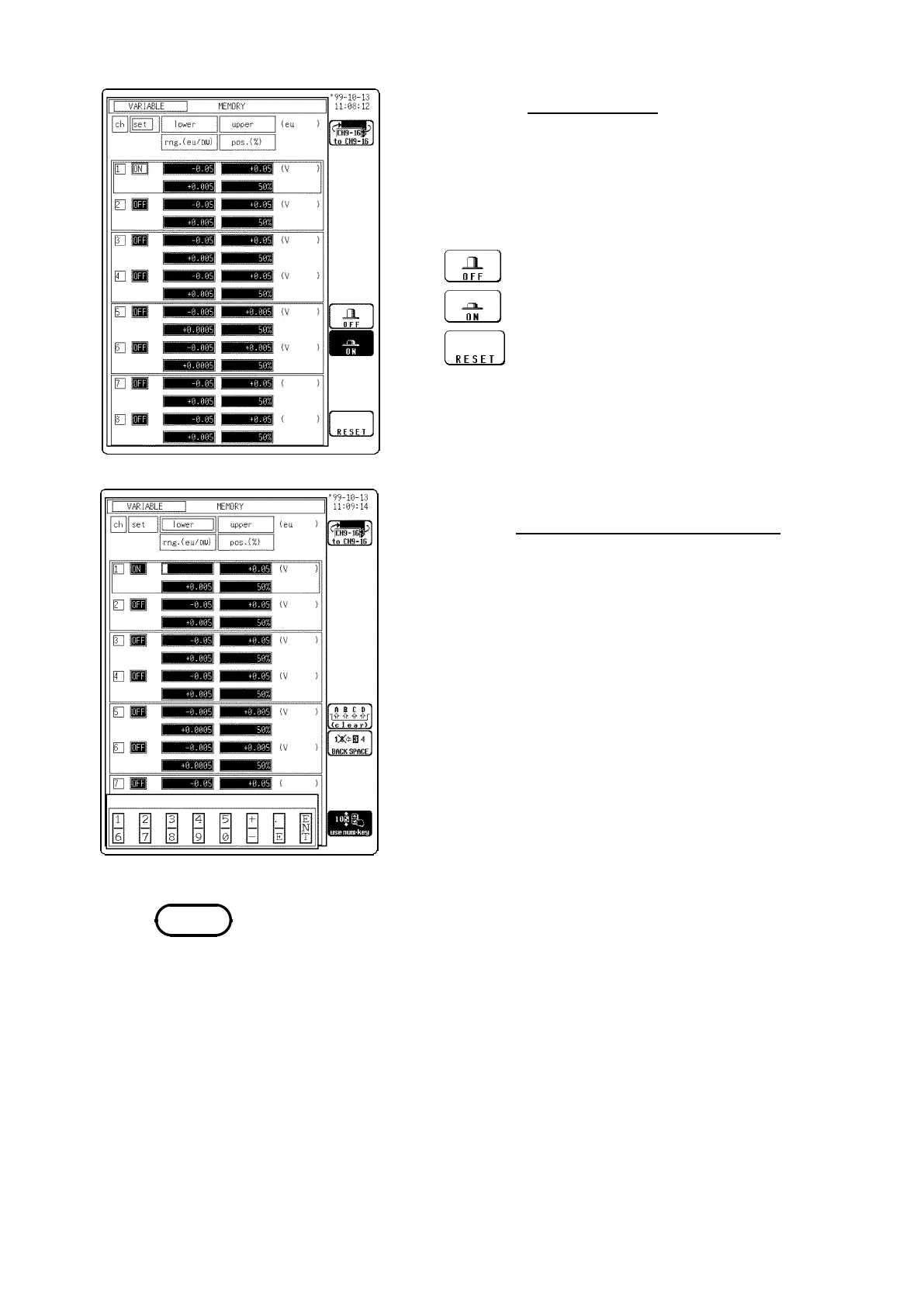

9.7 Setting the Variable Function
────────────────────────────────────────────────────
s74-1, 2
Function
display
Meaning
:
Variable function is disabled.
:
Variable function is enabled.
:
Reset. The reset value is determined by the
voltage axis range, zero position, and
ma
g
nification ratio.
NOTE
Procedure
Screen:VARIABLE
1. Press the
CHAN
key to display the VARIABLE screen.
2. Move the flashing cursor to the channel to be set.
3. Use the function keys to make a setting.
Setting the value
Method
Screen:VARIABLE, Waveform display
1. Select the use num
･
key function key.
2. Enter the value using the numerical input keys.
The unit (eu) is setting on the SYSTEM2
(SCALING) screen.
･ Variable function and scaling function processing can be carried out
simultaneously.
･ Settings made for one channel can be copied to another channel.
See Section 9.4.
･ Although the variable function cannot be enabled or disabled on the display
screen, the values of the enabled channels can be changed.
