9.11 Setting the 8937 VOLTAGE/TEMP UNIT
────────────────────────────────────────────────────
s781-2

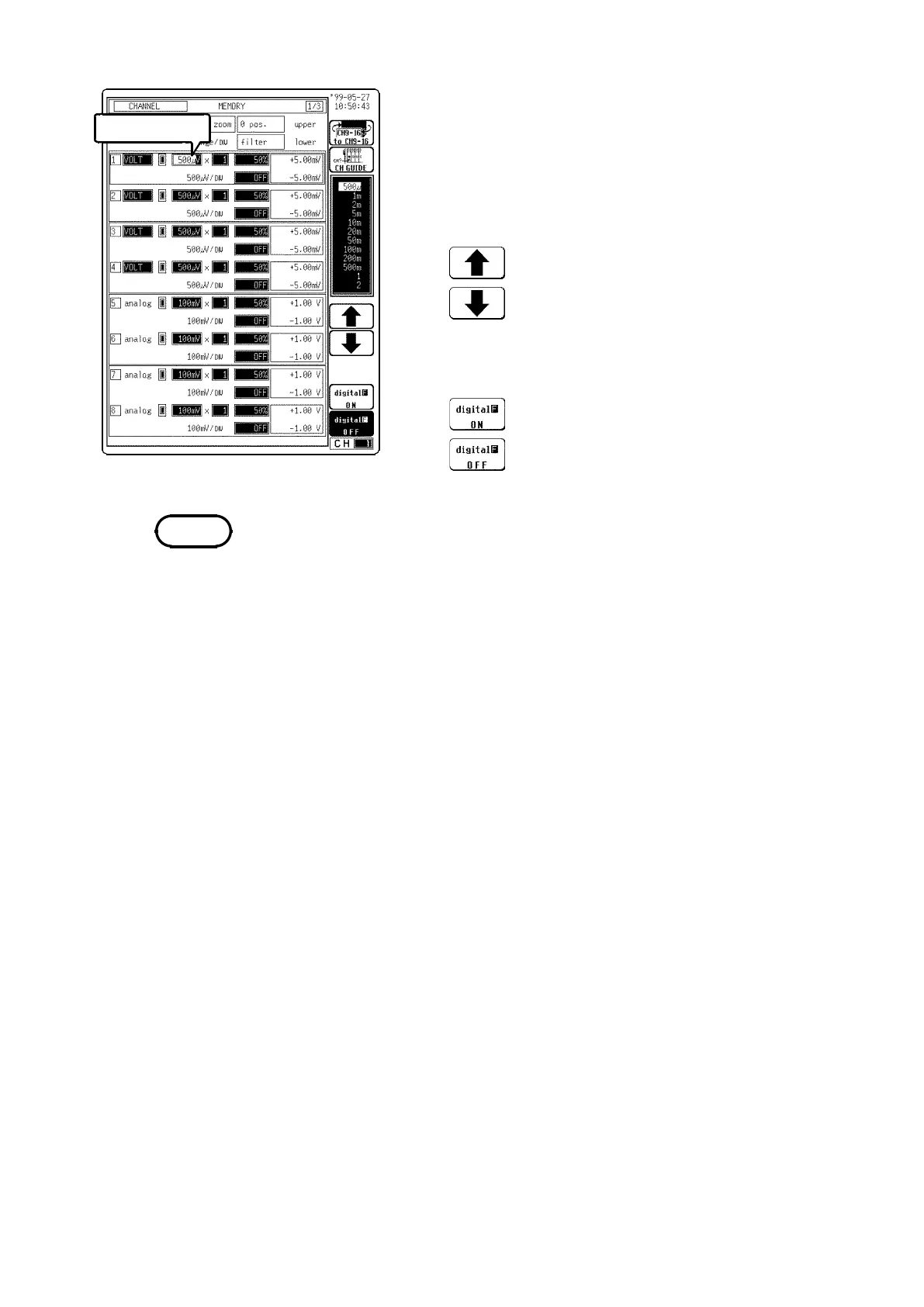

Flashing cursor
Function
display
Meaning
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
Function
display
Meaning
:
Digital filter is enabled.
(Measurement range: 500
μ
to 2 mV/DIV)
:
Digital filter is disabled.
NOTE
(2) Set the measurement range and digital filter.
1. Move the flashing cursor to the point shown in the
figure on the left.
2. Use the Jog/Shuttle control, the function keys or the
RANGE knob to set the measurement range.
3. Set the digital filter.
･ When the digital filter has been set to ON and the measurement range is
changed to one other than 500 μV/DIV to 2 mV/DIV, the digital filter is
automatically turned off. To turn on the digital filter, perform the setup
procedure from the beginning.
･ Zero adjustment cannot be performed during measurement.
･ Repeat the zero adjustment when the voltage axis range was changed, when
the input unit was changed, when the power is on/off, or when the system is
set to reset.
･ When there is a sudden change in ambient temperature, the zero position
may drift. To assure continued measurement precision, perform the zero
adjustment again.
