Hioki 8841 - Page 315

291
────────────────────────────────────────────────────

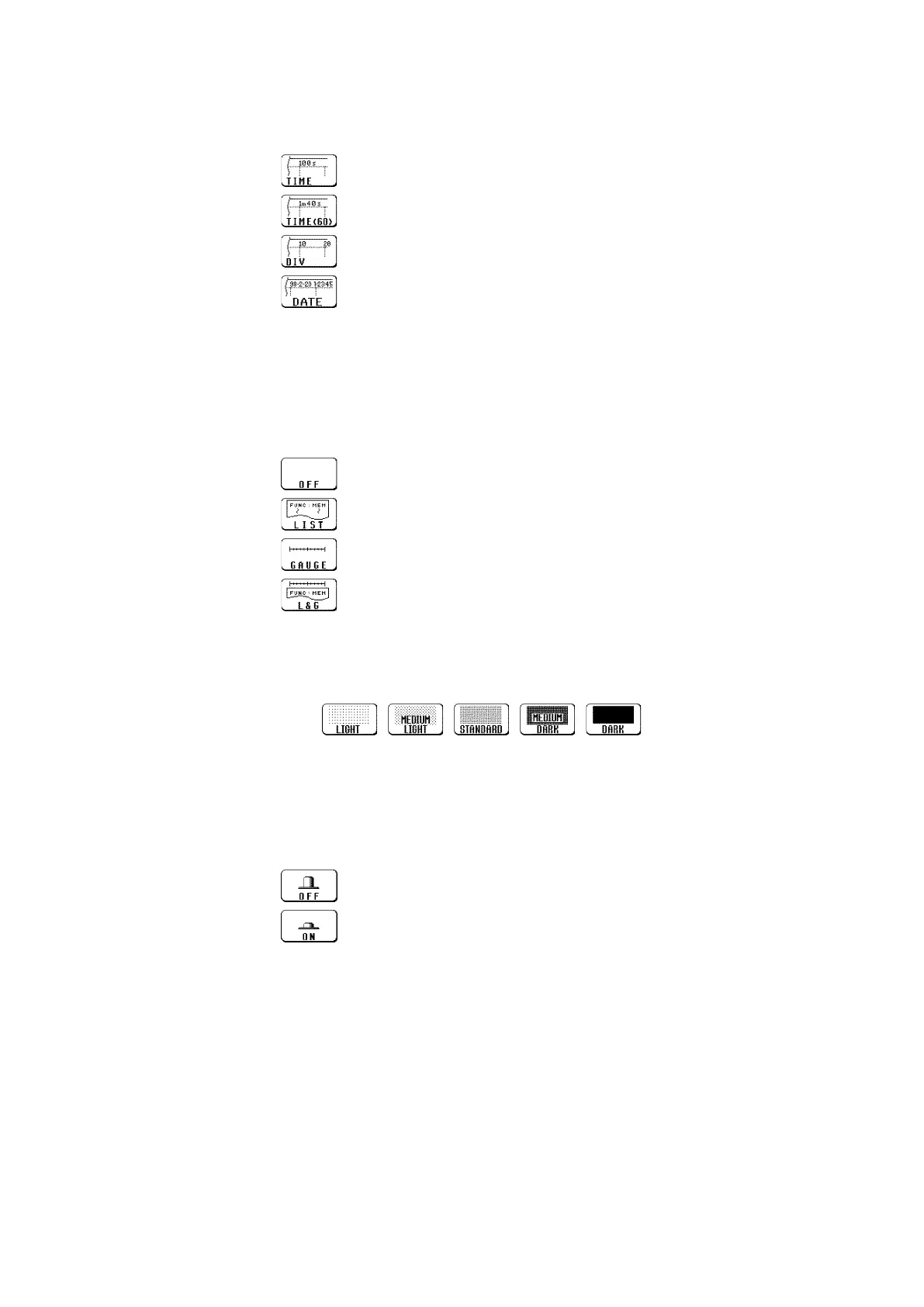

13.4 Setting the SYSTEM Screen (printout)
────────────────────────────────────────────────────
Time Value
Function
display Meaning
gc-tm1, 2, 3, 4
:
Displays the time from the trigger point (unit: fixed).
:
Displays the time from the trigger point (unit: base 60).
:
Displays the number of DIV from trigger point.
:
Displays the time when a waveform is captured.
List & Gauge
Function
display Meaning
gc-lst1, 2, 3
:
No gauges or listing
:
Prints listing only.
:
Prints gauges only.
:
Prints both gauges and listing.
Printer Density
Upper-lower
Values Print
Function
display
Meaning
:
Upper-lower values are not printed.
:
Upper-lower values are printed.
The time from the trigger point and other information can be printed.
When a waveform is printed out (except for screen hard copies), the gauge
can be printed out at the beginning, and a listing can be printed out at the
end.
Serves to set the printer density. Select the setting which yields the most
easy to read printout.
In waveform printing, the upper and lower values of each channel are printed
first. When the scaling function is being used, the scaled values are printed.
