373
────────────────────────────────────────────────────
16.3 Waveform GO/NG Evaluation (MEM, FFT)
────────────────────────────────────────────────────
NOTE
OUT
Return NG if any part of waveform
leaves evaluation area
GO
Stop on GO result
NG
Stop on NG result
ALL-OUT
Return NG if entire waveform leaves
evaluation area
GO&NG
Stop on GO or NG result

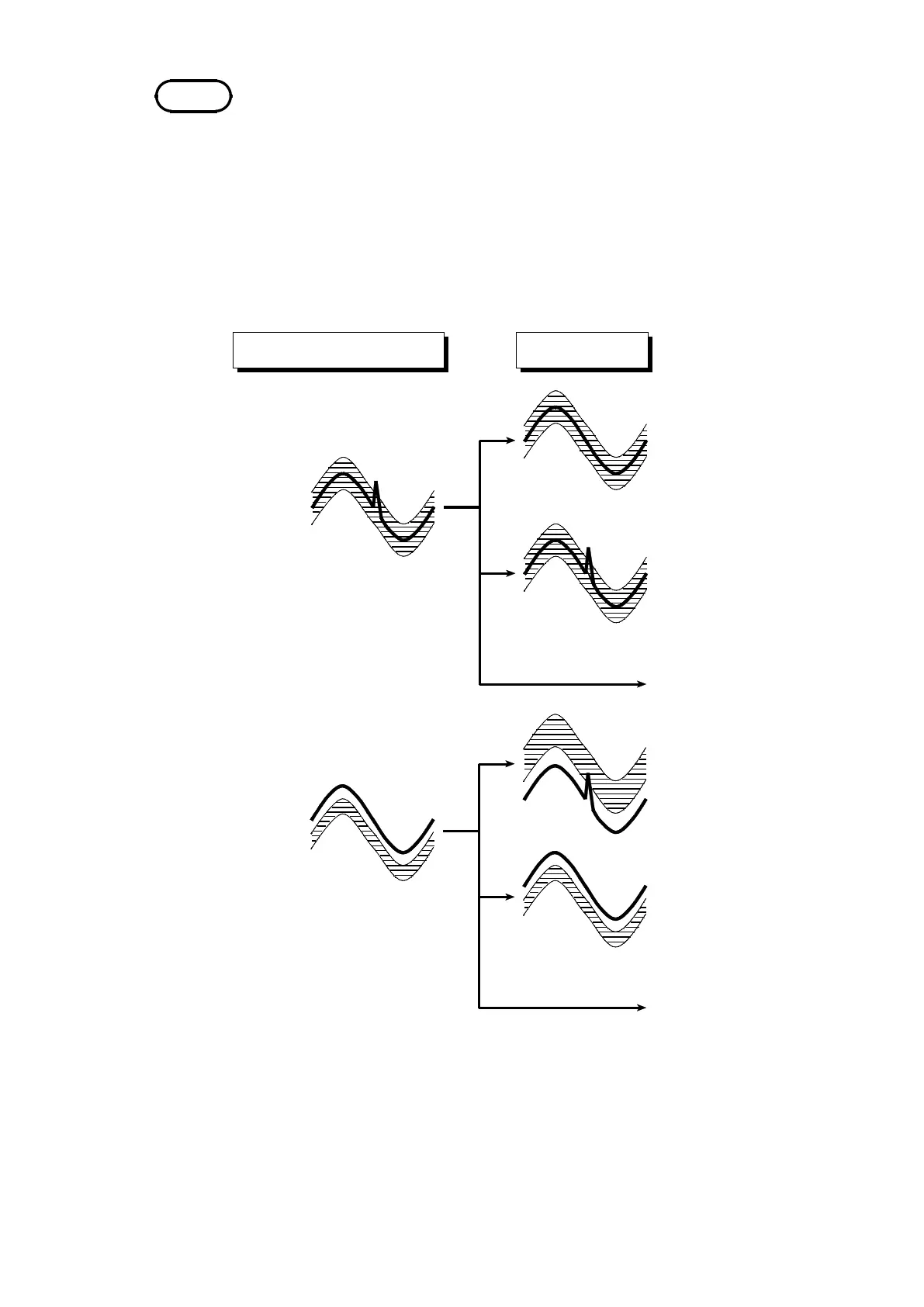

Waveform evaluation mode Stop mode
GO&NG
Stop on GO or NG result
GO
Stop on GO result
NG
Stop on NG result
･ If a high setting is chosen for recording length or if compression is used, the
evaluation cycle becomes slower.
･ On the waveform evaluation screen, A･B cursors can be used, but a partial
printout cannot be made.
･ When the waveform evaluation is specified, data equivalent to one screen
(15 divisions) is printed out. When waveform data having a recording
length of more than 15 divisions is to be printed out, the time axis should be
compressed. See Section 11.3.
Waveform evaluation mode and stop mode
