High Voltage SourceMeter Instrument Reference Manual Section 4:

Sourcing and measuring

2470-901-01 Rev. A / May 2019 4-57

4. Under Source, select Sweep. The Sweep Settings screen is displayed.

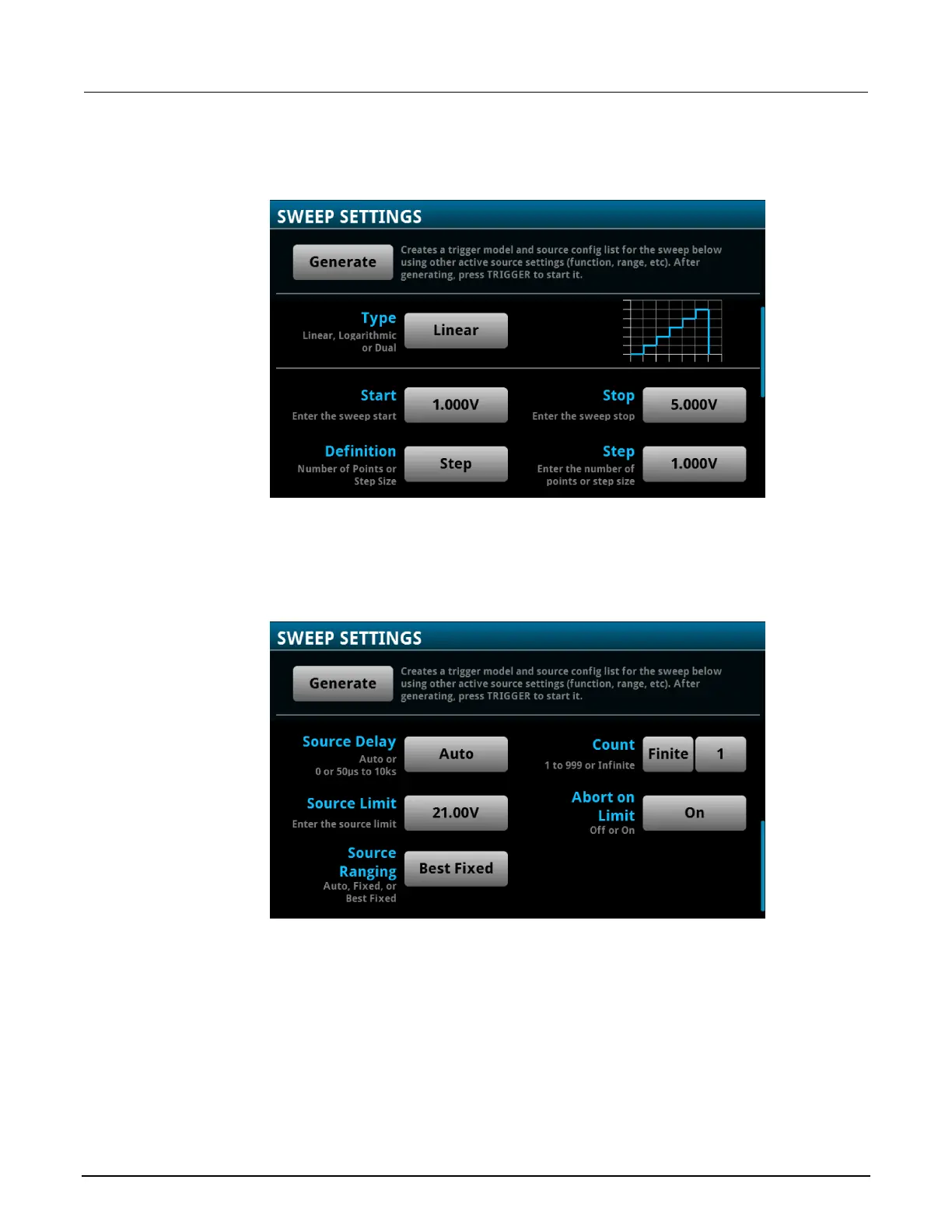

Figure 72: Sweep Settings screen - first page

5. Make selections appropriate to your sweep. See the table below for detail on the options.

6. Swipe down to see additional options.

Figure 73: Sweep Settings screen - second page

7. Make selections appropriate to your sweep. See the table below for detail on the options.

8. Select Generate.

9. To run the sweep, press the TRIGGER key.

Default Chapter6
