2: Installation 2470 High Voltage SourceMeter Instrument
2-6 2470-901-01 Rev. A / May 2019
Handle and bumpers
The 2470 has a handle and front and rear bumpers for using the instrument on a benchtop. The
handle rotates so that you can swing it below the bottom surface of the instrument to tilt the
instrument up for easier front-panel viewing, or to carry the instrument from one location to another.
Removing the handle and bumpers
You can remove handle and bumpers on the 2470 if you want to mount the instrument in a rack.
If you remove the handle and bumpers, be sure to store them for future benchtop use.
To remove the bumpers:
1. Swivel the handle to a position above or below the instrument so that it will not interfere with th
e
removal of the front bumper.
2. Grasp the front bumper on each side of the 2470 and gently pull it toward you until the bumper
comes off the instrument.

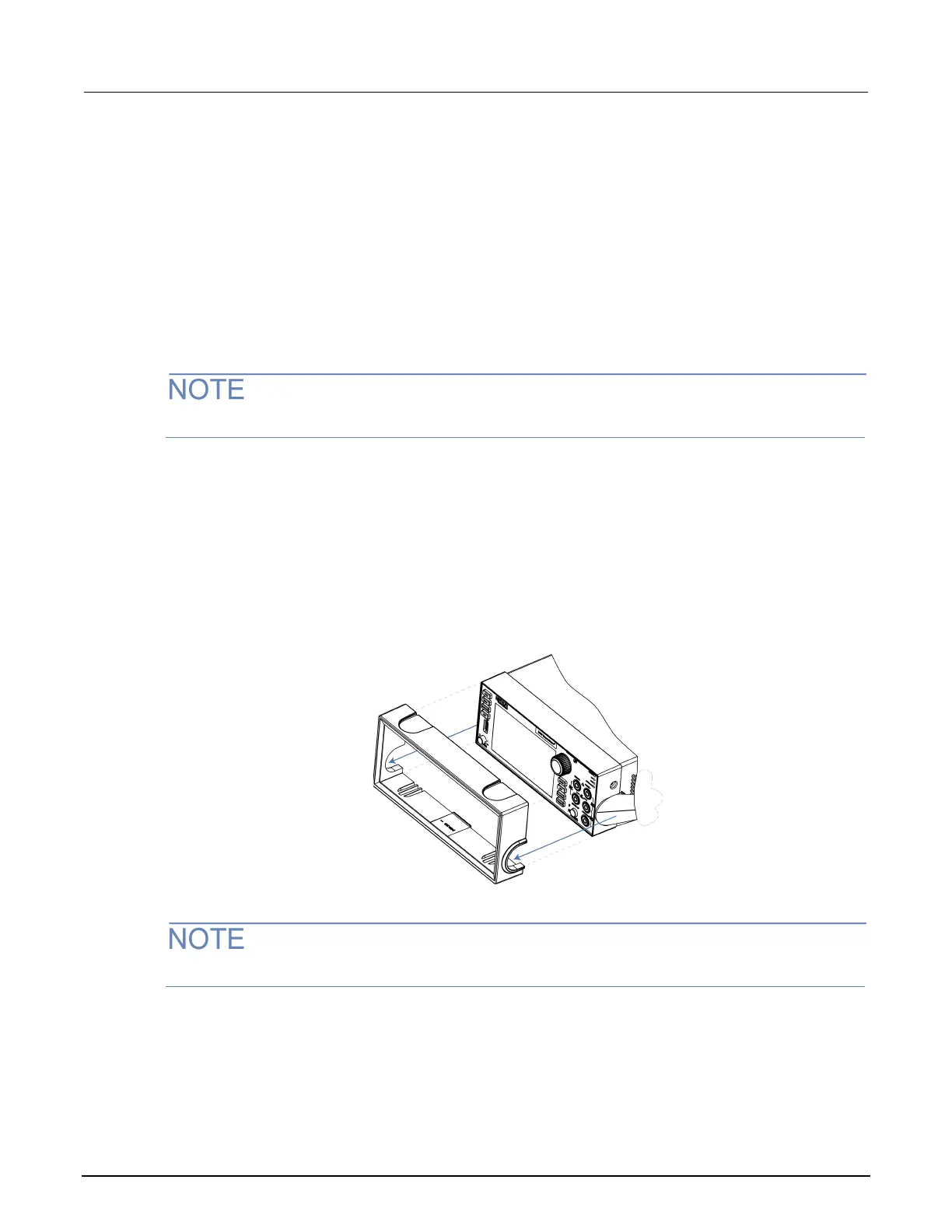

Figure 6: Removing the front bumper
Remove all connections to the rear panel of the 2470 before removing the rear bumper.
3. To remove the rear bumper, repeat the procedure in step 2.
