Standard Event Register
The Standard Event Register set includes two 8-bit registers:
• Standard Event Status Register: Reports when a predefined event has occurred. The register
latches the event and the corresponding bit remains set until it is cleared by a read.
• Standard Event Status Enable Register: You can enable or disable bits in this register. This
allows the predefined event (from the Standard Event Status Register) to set the ESB of t
he
St
atus Byte Register.

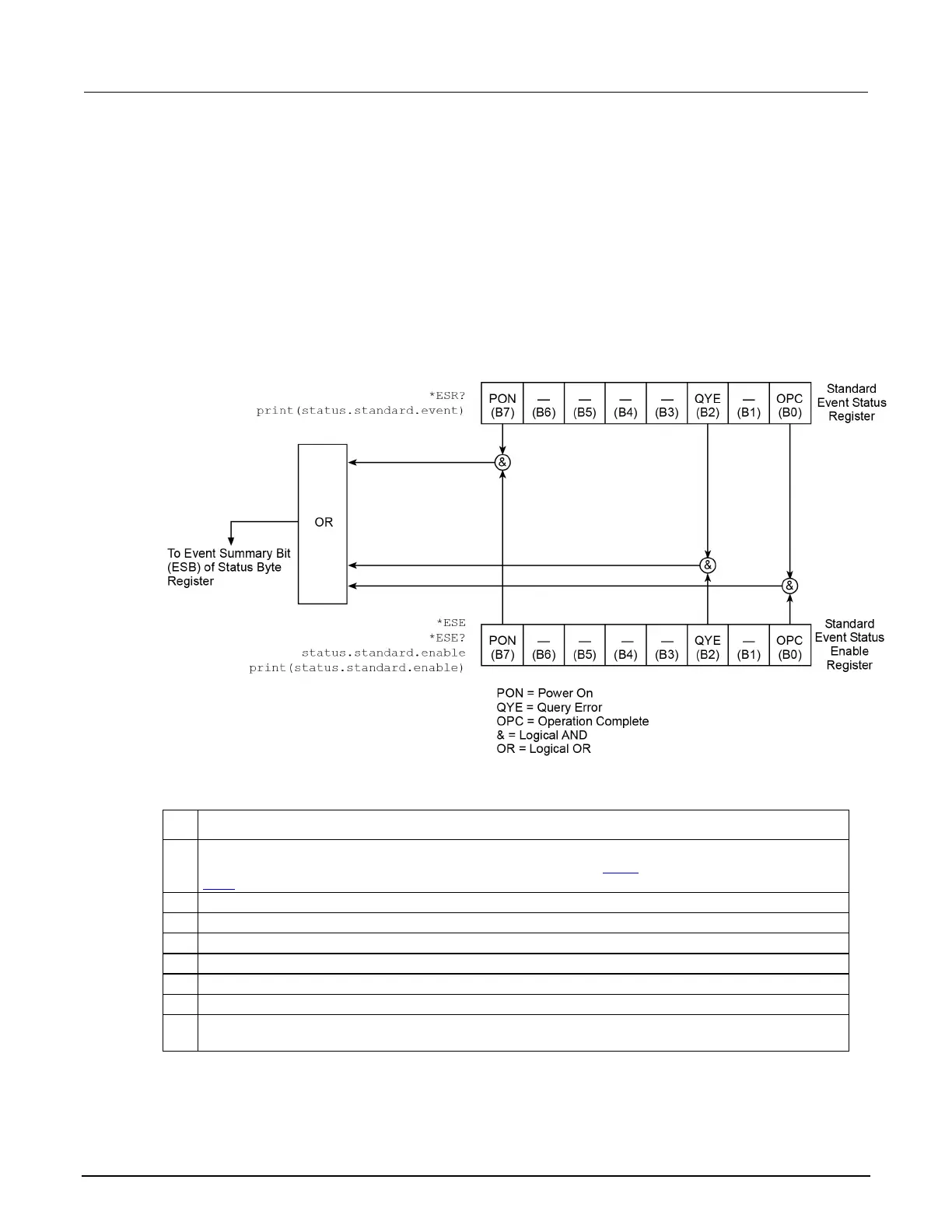

Figure 162: 2470 Standard Event Register
Bit When set, indicates the following has occurred:
0
Operation complete: All pending selected instrument operations are complete and the instrument is
ready to accept new commands. The bit is set in response to an *OPC (on page A-6) command or TSP
opc() (on page 14-98) function.
1
Not used.
2
Query error: Attempt to read data from an empty Output Queue.
3
Not used.
4
Not used.
5
Not used.
6
Not used.
7
Power-on: The instrument has been turned off and turned back on since the last time this register was
read.
