3: Instrument description 2470 High Voltage SourceMeter Instrument
3-6 2470-901-01 Rev. A / May 2019
Some of the interactive screens have additional options that are only visible when you scroll down the
screen. A scroll indicator on the right side of the touchscreen identifies these screens. Swipe the
screen up or down to view the additional options.
The figure below shows a screen with a scroll bar.

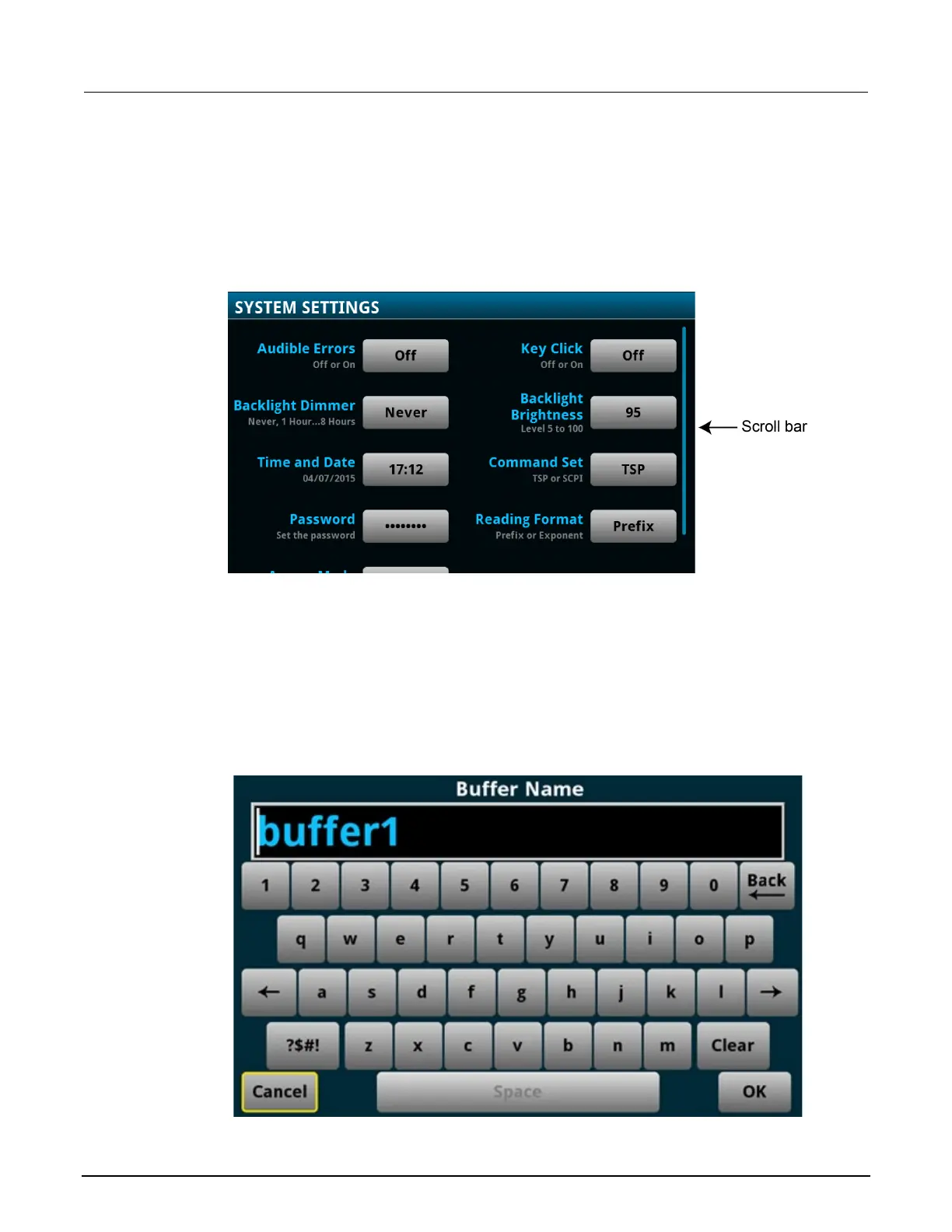

Figure 28: Touchscreen window with a scroll bar indicator
Enter information
Some of the menu options open a keypad or keyboard that you can use to enter information. For
example, if you are setting the name of a buffer from the front panel, you see the keyboard shown in
the following figure.
Figure 29: 2470 front-panel keyboard
