Using SCPI commands:
To set the averaging filters using SCPI commands, refer to the following command descriptions:
[:SENSe[1]]:<function>:AVERage:COUNt (on page 12-42)
[:SENSe[1]]:<function>:AVERage[:STATe] (on page 12-43)
[:SENSe[1]]:<function>:AVERage:TCONtrol (on page 12-44)
Using TSP commands:
To set the averaging filters using TSP commands, refer to the following command descriptions:
smu.measure.filter.count (on page 14-124)
smu.measure.filter.enable (on page 14-125)
smu.measure.filter.type (on page 14-126)
Order of operations
The measurements have filtering, relative offset values, math operations, and limit testing applied to
them in a predetermined order. The measurements that are displayed on the front panel and that are
stored in the reading buffers represent the measurements with any selected operations applied to
them. These operations are applied to the measurement as shown in the following figure.

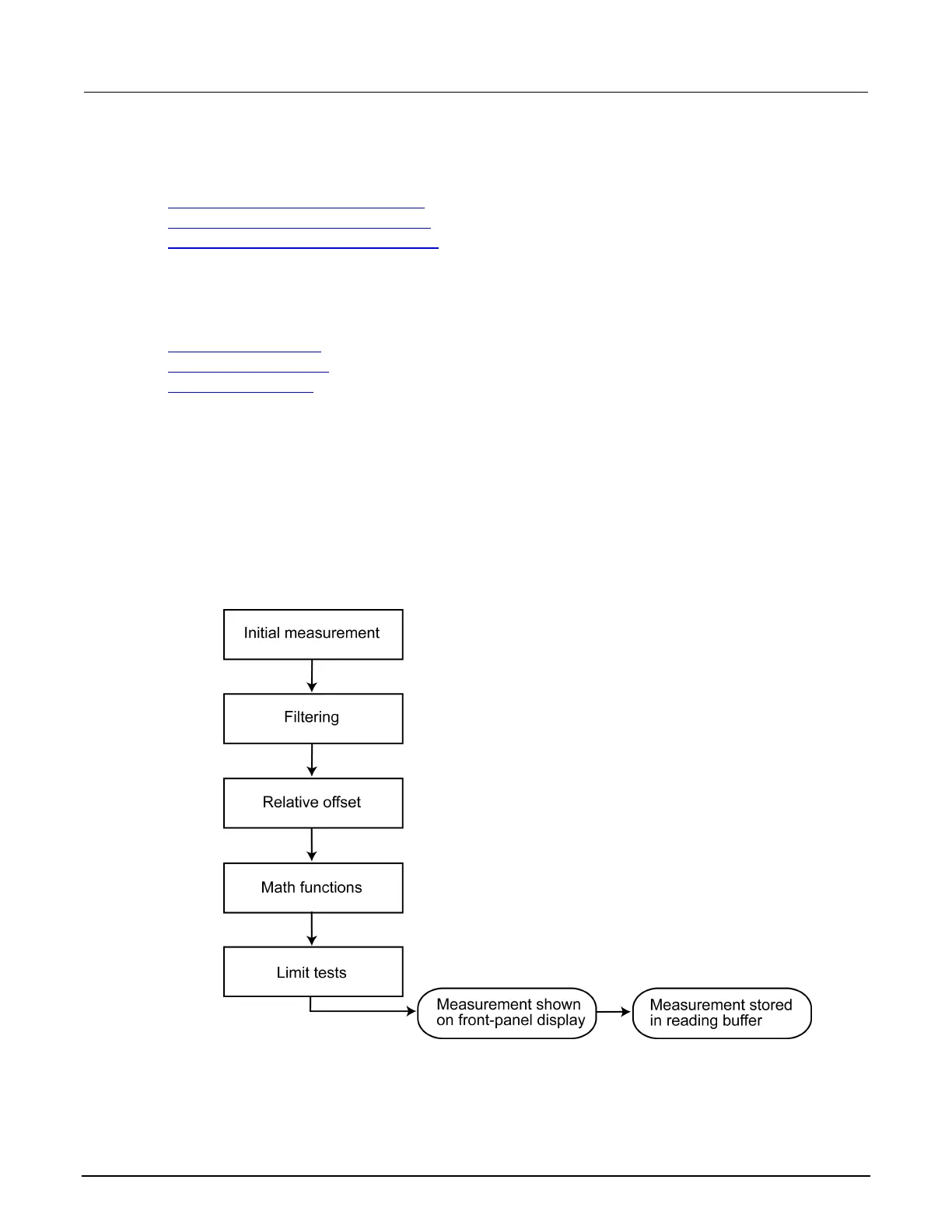

Figure 101: 2470 order of operations
