High Voltage SourceMeter Instrument Reference Manual Section 3:
2470-901-01 Rev. A / May 2019 3-27
Views menu
The menus under Views in the main menu allow you to select, configure, and view data from measure
operations on the 2470. The following topics describe the settings that are available on these
interactive screens.
Views Graph menu
The Graph menu opens a screen that displays a graph of the measurements in selected
reading buffers as traces. It also contains tabs that you use to customize the graph display.
You can also select the trigger mode and initiate the trigger model from this screen. Select
the trigger mode indicator in the upper right corner of the screen and select the trigger
mode. Refer to Trigger mode indicator (on page 3-13
) for details.
Graph tab
The Graph tab graphs readings as they are made by the instrument. Settings you make on the Data,
Scale, and Trigger tabs affect how readings appear on this screen. You can also select the number of
traces that are displayed.

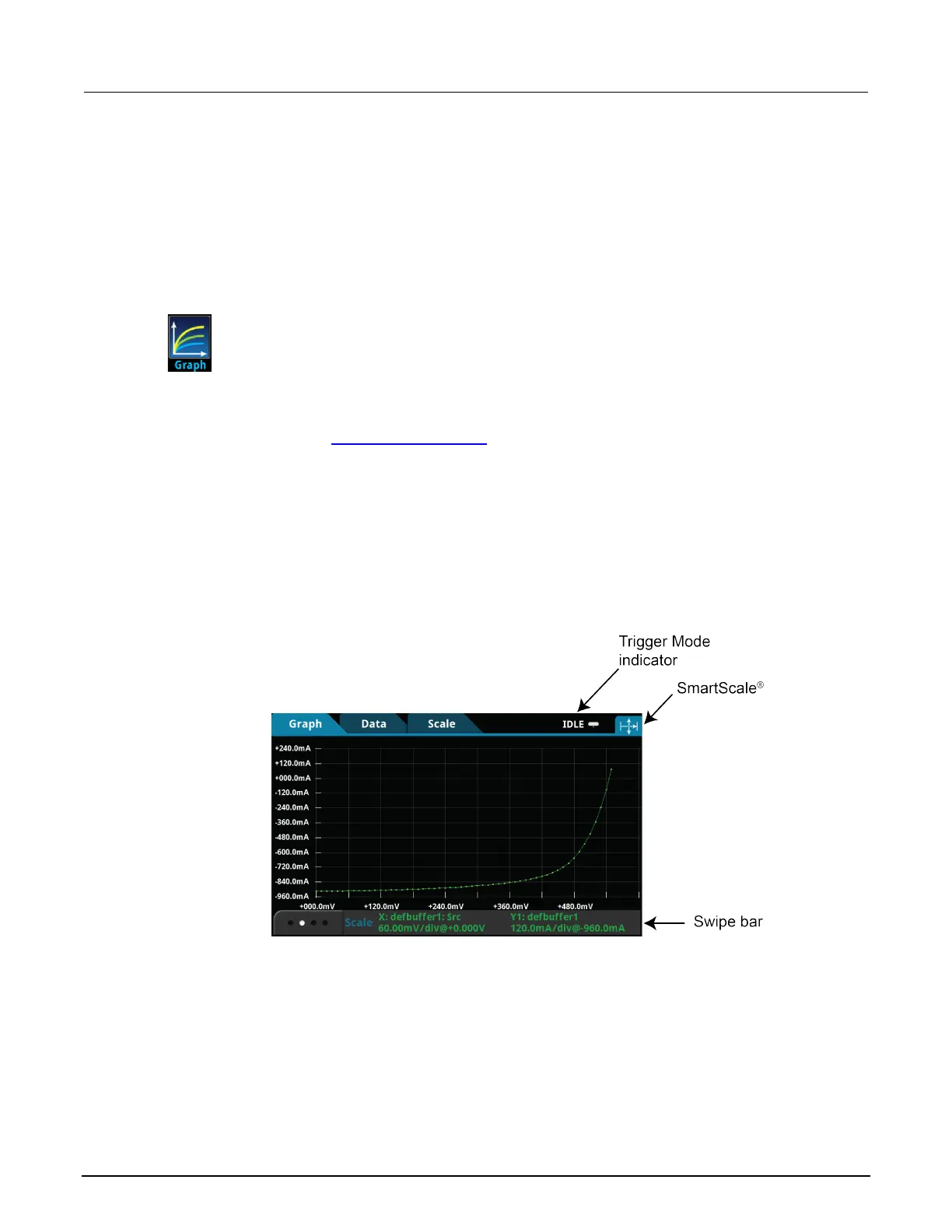

Figure 47: Graph tab
You can zoom in or out in the graph view by placing two fingers on the screen and moving them
together or apart in a pinching motion. You can also move the view of the graph to the left or right by
placing a finger on the screen and moving it in either direction. If you want to set the method of
scaling data to use the SmartScale
®
feature, select the icon in the upper-right corner of the Graph tab.
The instrument determines the best way to scale data based on the data and the instrument
configuration (such as the measure count).
